risc::InitiatorSocket Class Reference

#include <initiatorsocket.h>

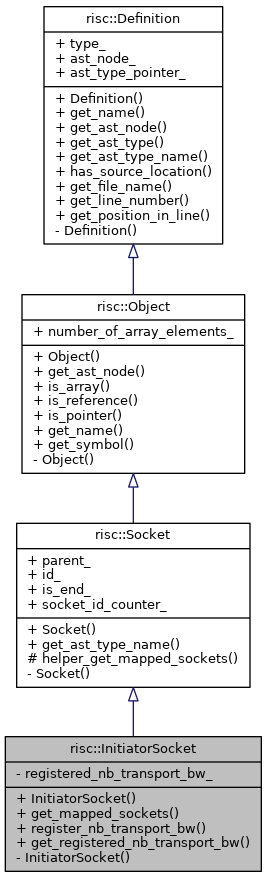

Inheritance diagram for risc::InitiatorSocket:
Inheritance graph

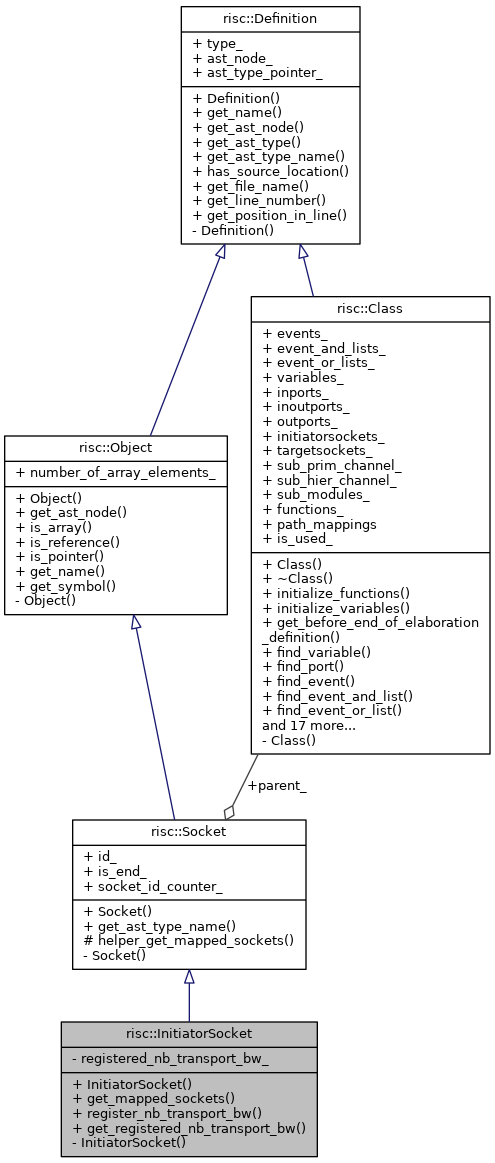

Collaboration diagram for risc::InitiatorSocket:
Collaboration graph

Public Types

enum  Type {
  CThreadType, ChannelType, ChannelInstanceType, ClassType,
  DefinitionType, EventType, FunctionType, HierarchicalChannelType,
  HierarchicalChannelInstanceType, InOutPortType, InPortType, InstanceType,
  InterfaceType, MethodType, ModuleType, ModuleInstanceType,
  ObjectType, OutPortType, PortType, PrimitiveChannelType,
  PrimitiveChannelInstanceType, ThreadType, VariableType, SocketType,
  InitiatorSocketType, TargetSocketType
}
 We are using these enums to identify type type of and instance or definition during traversal. More...


Public Member Functions

 InitiatorSocket (SgVariableDefinition *ast_node, Class *parent)
 default constructor More...

void get_mapped_sockets (std::set< risc::Socket * > &mapped_sockets)

void register_nb_transport_bw (SgFunctionDeclaration *func_decl)
 register the nb_transport_bw method for this socket More...

SgFunctionDeclaration * get_registered_nb_transport_bw ()
 get the registered nb_transport_bw method More...

virtual std::string get_ast_type_name ()
 Get function for the name of the ast type of the socket. More...

SgVariableDefinition * get_ast_node ()
 Returns the ast definition of the object. More...

bool is_array ()
 checks if this object is an array More...

bool is_reference ()
 checks if this object is a reference More...

bool is_pointer ()
 checks if this object is a pointer More...

virtual std::string get_name ()
 Get function for the name of the module instance variable. More...

SgVariableSymbol * get_symbol ()
 return the symbol of the object More...

virtual SgType * get_ast_type ()
 Returns the type of the ast node. More...

bool has_source_location ()
 Determines if a ast node has an associated ast node. More...

std::string get_file_name ()
 Get the name of the file where the declaration is located. More...

int get_line_number ()
 Get the line number of the instance. More...

int get_position_in_line ()
 Get the position of the in declaration in the corresponding line In other words the column in the line. More...


Public Attributes

Classparent_

int id_

bool is_end_

unsigned int number_of_array_elements_

Type type_

SgNode * ast_node_

SgType * ast_type_pointer_


Static Public Attributes

static int socket_id_counter_ =0


Protected Member Functions

void helper_get_mapped_sockets (std::set< risc::Socket * > &mapped_sockets, bool is_forward)
 This function determines all potential mapped sockets to this socket. If this socket is an InitiatoreSocketType, the mapped are all TargetSocketType. And vice versa. type specifies the type of socket that should be collected into mapped_sockets CAUTION: If you want to get the specific mapped socket, you have to use the path instance mapper. More...


Private Member Functions

 InitiatorSocket (const InitiatorSocket &ip)
 Disabled copy constructor. More...


Private Attributes

SgFunctionDeclaration * registered_nb_transport_bw_
 registered method for nb_transport_bw_ More...


Member Enumeration Documentation

enum risc::Definition::Type
inherited

We are using these enums to identify type type of and instance or definition during traversal.

Enumerator
CThreadType
ChannelType
ChannelInstanceType
ClassType
DefinitionType
EventType
FunctionType
HierarchicalChannelType
HierarchicalChannelInstanceType
InOutPortType
InPortType
InstanceType
InterfaceType
MethodType
ModuleType
ModuleInstanceType
ObjectType
OutPortType
PortType
PrimitiveChannelType
PrimitiveChannelInstanceType
ThreadType
VariableType
SocketType
InitiatorSocketType
TargetSocketType

Constructor & Destructor Documentation

risc::InitiatorSocket::InitiatorSocket ( SgVariableDefinition *  ast_node,
Class parent
)
explicit

default constructor

risc::InitiatorSocket::InitiatorSocket ( const InitiatorSocket ip)
private

Disabled copy constructor.

Member Function Documentation

SgVariableDefinition * risc::Object::get_ast_node ( )
virtualinherited

Returns the ast definition of the object.

Returns
Pointer to the definition

Reimplemented from risc::Definition.

SgType * risc::Definition::get_ast_type ( )
virtualinherited

Returns the type of the ast node.

std::string risc::Socket::get_ast_type_name ( )
virtualinherited

Get function for the name of the ast type of the socket.

Returns
Name as std::string

Reimplemented from risc::Definition.

std::string risc::Definition::get_file_name ( )
inherited

Get the name of the file where the declaration is located.

Returns
filename
int risc::Definition::get_line_number ( )
inherited

Get the line number of the instance.

Returns
line number
void risc::InitiatorSocket::get_mapped_sockets ( std::set< risc::Socket * > &  mapped_sockets)
std::string risc::Object::get_name ( )
virtualinherited

Get function for the name of the module instance variable.

Returns
Name as std::string

Reimplemented from risc::Definition.

int risc::Definition::get_position_in_line ( )
inherited

Get the position of the in declaration in the corresponding line In other words the column in the line.

Returns
position in line
SgFunctionDeclaration * risc::InitiatorSocket::get_registered_nb_transport_bw ( )

get the registered nb_transport_bw method

risc::Object::get_symbol ( )
inherited

return the symbol of the object

bool risc::Definition::has_source_location ( )
inherited

Determines if a ast node has an associated ast node.

risc::Socket::helper_get_mapped_sockets ( std::set< risc::Socket * > &  mapped_sockets,
bool  is_forward
)
protectedinherited

This function determines all potential mapped sockets to this socket. If this socket is an InitiatoreSocketType, the mapped are all TargetSocketType. And vice versa. type specifies the type of socket that should be collected into mapped_sockets CAUTION: If you want to get the specific mapped socket, you have to use the path instance mapper.

bool risc::Object::is_array ( )
inherited

checks if this object is an array

bool risc::Object::is_pointer ( )
inherited

checks if this object is a pointer

bool risc::Object::is_reference ( )
inherited

checks if this object is a reference

void risc::InitiatorSocket::register_nb_transport_bw ( SgFunctionDeclaration *  func_decl)

register the nb_transport_bw method for this socket

Member Data Documentation

SgNode* risc::Definition::ast_node_
inherited
SgType* risc::Definition::ast_type_pointer_
inherited
int risc::Socket::id_
inherited
bool risc::Socket::is_end_
inherited
unsigned int risc::Object::number_of_array_elements_
inherited
Class* risc::Socket::parent_
inherited
SgFunctionDeclaration* risc::InitiatorSocket::registered_nb_transport_bw_
private

registered method for nb_transport_bw_

int risc::Socket::socket_id_counter_ =0
staticinherited
Type risc::Definition::type_
inherited

The documentation for this class was generated from the following files:
