risc::Socket Class Reference

#include <socket.h>

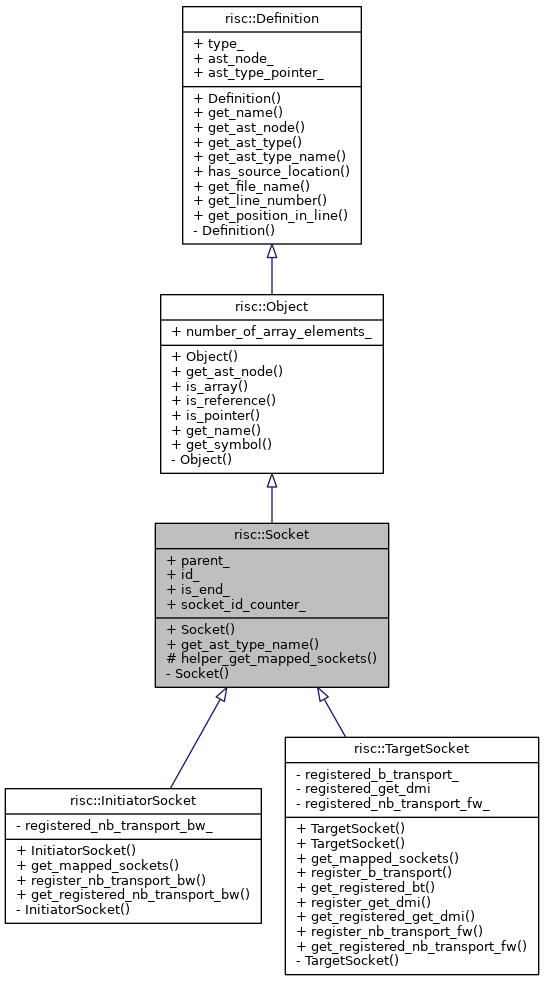

Inheritance diagram for risc::Socket:

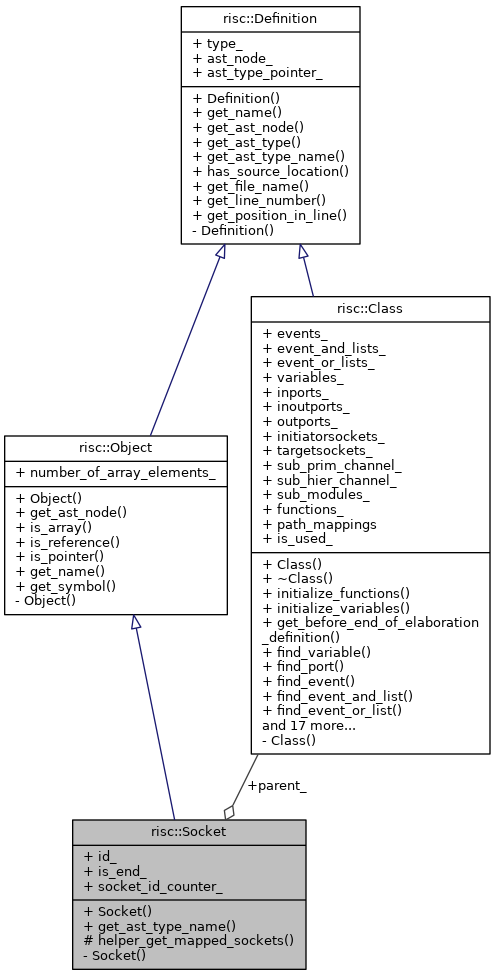

Collaboration diagram for risc::Socket:

Public Types
enum	Type {   CThreadType, ChannelType, ChannelInstanceType, ClassType,   DefinitionType, EventType, FunctionType, HierarchicalChannelType,   HierarchicalChannelInstanceType, InOutPortType, InPortType, InstanceType,   InterfaceType, MethodType, ModuleType, ModuleInstanceType,   ObjectType, OutPortType, PortType, PrimitiveChannelType,   PrimitiveChannelInstanceType, ThreadType, VariableType, SocketType,   InitiatorSocketType, TargetSocketType }
	We are using these enums to identify type type of and instance or definition during traversal. More...

Public Member Functions
	Socket (SgVariableDefinition *ast_node, Class *parent, Type type=SocketType)
	default constructor More...
virtual std::string	get_ast_type_name ()
	Get function for the name of the ast type of the socket. More...
SgVariableDefinition *	get_ast_node ()
	Returns the ast definition of the object. More...
bool	is_array ()
	checks if this object is an array More...
bool	is_reference ()
	checks if this object is a reference More...
bool	is_pointer ()
	checks if this object is a pointer More...
virtual std::string	get_name ()
	Get function for the name of the module instance variable. More...
SgVariableSymbol *	get_symbol ()
	return the symbol of the object More...
virtual SgType *	get_ast_type ()
	Returns the type of the ast node. More...
bool	has_source_location ()
	Determines if a ast node has an associated ast node. More...
std::string	get_file_name ()
	Get the name of the file where the declaration is located. More...
int	get_line_number ()
	Get the line number of the instance. More...
int	get_position_in_line ()
	Get the position of the in declaration in the corresponding line In other words the column in the line. More...

Public Attributes
Class *	parent_
int	id_
bool	is_end_
unsigned int	number_of_array_elements_
Type	type_
SgNode *	ast_node_
SgType *	ast_type_pointer_

Static Public Attributes
static int	socket_id_counter_ =0

Protected Member Functions
void	helper_get_mapped_sockets (std::set< risc::Socket * > &mapped_sockets, bool is_forward)
	This function determines all potential mapped sockets to this socket. If this socket is an InitiatoreSocketType, the mapped are all TargetSocketType. And vice versa. type specifies the type of socket that should be collected into mapped_sockets CAUTION: If you want to get the specific mapped socket, you have to use the path instance mapper. More...

Private Member Functions
	Socket (const Socket &p)
	Disabled copy constructor. More...

Member Enumeration Documentation

enum risc::Definition::Type

inherited

We are using these enums to identify type type of and instance or definition during traversal.

Enumerator
CThreadType
ChannelType
ChannelInstanceType
ClassType
DefinitionType
EventType
FunctionType
HierarchicalChannelType
HierarchicalChannelInstanceType
InOutPortType
InPortType
InstanceType
InterfaceType
MethodType
ModuleType
ModuleInstanceType
ObjectType
OutPortType
PortType
PrimitiveChannelType
PrimitiveChannelInstanceType
ThreadType
VariableType
SocketType
InitiatorSocketType
TargetSocketType

Constructor & Destructor Documentation

risc::Socket::Socket ( SgVariableDefinition *  ast_node, Class *  parent, Type  type = SocketType  )

explicit

default constructor

risc::Socket::Socket ( const Socket &  p )

private

Disabled copy constructor.

Member Function Documentation

SgVariableDefinition * risc::Object::get_ast_node ( )

virtualinherited

Returns the ast definition of the object.

Returns

Pointer to the definition

Reimplemented from risc::Definition.

SgType * risc::Definition::get_ast_type ( )

virtualinherited

Returns the type of the ast node.

std::string risc::Socket::get_ast_type_name ( )

virtual

Get function for the name of the ast type of the socket.

Returns

Name as std::string

Reimplemented from risc::Definition.

std::string risc::Definition::get_file_name ( )

inherited

Get the name of the file where the declaration is located.

Returns

filename

int risc::Definition::get_line_number ( )

inherited

Get the line number of the instance.

Returns

line number

std::string risc::Object::get_name ( )

virtualinherited

Get function for the name of the module instance variable.

Returns

Name as std::string

Reimplemented from risc::Definition.

int risc::Definition::get_position_in_line ( )

inherited

Get the position of the in declaration in the corresponding line In other words the column in the line.

Returns

position in line

risc::Object::get_symbol ( )

inherited

return the symbol of the object

bool risc::Definition::has_source_location ( )

inherited

Determines if a ast node has an associated ast node.

risc::Socket::helper_get_mapped_sockets ( std::set< risc::Socket * > &  mapped_sockets, bool  is_forward  )

protected

This function determines all potential mapped sockets to this socket. If this socket is an InitiatoreSocketType, the mapped are all TargetSocketType. And vice versa. type specifies the type of socket that should be collected into mapped_sockets CAUTION: If you want to get the specific mapped socket, you have to use the path instance mapper.

bool risc::Object::is_array ( )

inherited

checks if this object is an array

bool risc::Object::is_pointer ( )

inherited

checks if this object is a pointer

bool risc::Object::is_reference ( )

inherited

checks if this object is a reference

Member Data Documentation

SgNode* risc::Definition::ast_node_

inherited

SgType* risc::Definition::ast_type_pointer_

inherited

int risc::Socket::id_

bool risc::Socket::is_end_

unsigned int risc::Object::number_of_array_elements_

inherited

Class* risc::Socket::parent_

int risc::Socket::socket_id_counter_ =0

static

Type risc::Definition::type_

inherited

---

The documentation for this class was generated from the following files:

• /local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/internal_representation/socket.h
• /local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/internal_representation/socket.cpp
