This class represents a definition of a module. More...

#include <module.h>

Inheritance diagram for risc::Module:

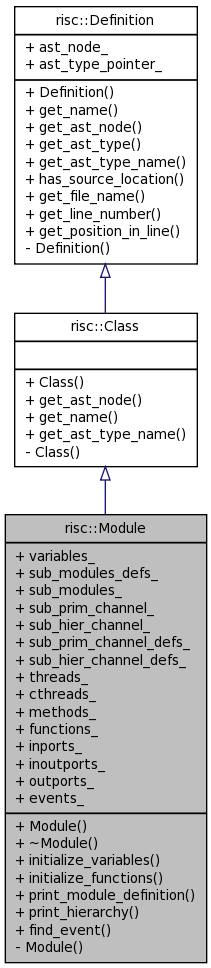

Collaboration diagram for risc::Module:

Public Member Functions
	Module (SgClassDefinition *ast_node)
	Creates an empty module definition. All the lists of instances and sub definitions are empty.
	~Module ()
void	initialize_variables ()
	This function searches for all variable declarations in the module definition. The corresponding variable vectors will be used.
void	initialize_functions ()
	This function searches for all functions, SC_THREADS, SC_CTHREADS, and SC_METHODS in the module definition. The corresponding variable vectors will be used.
void	print_module_definition ()
	Prints the complete module design into the terminal.
void	print_hierarchy (unsigned indent_level=0)
	Prints the hierarchy. Roots is this definiton.
Event *	find_event (SgVariableDefinition *var_def)
	Find an event by it's ast variable definition.
SgClassDefinition *	get_ast_node ()
	Returns the ast definition of the class.
std::string	get_name ()
	returns the name of the module definition
virtual std::string	get_ast_type_name ()
	Returns the name of the module type.
virtual SgType *	get_ast_type ()
	Returns the type of the ast node.
bool	has_source_location ()
	Determines if a ast node has an associated ast node.
std::string	get_file_name ()
	Get the name of the file where the declaration is located.
int	get_line_number ()
	Get the line number of the instance.
int	get_position_in_line ()
	Get the position of the in declaration in the corresponding line In other words the column in the line.
Public Attributes
VariableVector	variables_
	Vector of C++ builtin variables that are declared in the module.
ModuleVector	sub_modules_defs_
	Vector of module definitions which are defined in this module.
ModuleInstanceVector	sub_modules_
	Vector of module definitions which are defined in this module.
PrimitiveChannelInstanceVector	sub_prim_channel_
	Vector of primimitive channel instances which are declared in this module.
HierarchicalChannelInstanceVector	sub_hier_channel_
	Vector of hierarchical channel instances which are declared in this module.
PrimitiveChannelVector	sub_prim_channel_defs_
	Vector of primitive channel definitions. Technically, this represents a nested C++ class definition. In a good design this vector should be empty.
HierarchicalChannelVector	sub_hier_channel_defs_
	Vector of hierarchical channel definitions. Technically, this represents a nested C++ class definition. In a good design this vector should be empty.
ThreadVector	threads_
	Vector of threads which are defined in this module.
CThreadVector	cthreads_
	Vector of cthreads which are defined in this module.
MethodVector	methods_
	Vector of methods which are defined in this module.
FunctionVector	functions_
	Vector of functions which are defined in this module.
InPortVector	inports_
	Vector of inports which are defined in this module.
InOutPortVector	inoutports_
	Vector of inoutports which are defined in this module.
OutPortVector	outports_
	Vector of outports which are defined in this module.
EventVector	events_
	Vector of events which are defined in this module.
SgNode *	ast_node_
SgType *	ast_type_pointer_
Private Member Functions
	Module (const Module &md)
	Disabled copy constructor.

Detailed Description

This class represents a definition of a module.

A module is defined by the assembling of modules, channels, ports, processes, and others.

Constructor & Destructor Documentation

risc::Module::Module ( SgClassDefinition * ast_node ) [explicit]

Creates an empty module definition. All the lists of instances and sub definitions are empty.

Default constructor

risc::Module::~Module ( )

risc::Module::Module ( const Module & md ) [private]

Disabled copy constructor.

Member Function Documentation

risc::Event * risc::Module::find_event ( SgVariableDefinition * var_def )

Find an event by it's ast variable definition.

SgClassDefinition * risc::Class::get_ast_node ( ) [virtual, inherited]

Returns the ast definition of the class.

Returns:: Pointer to the definition

Reimplemented from risc::Definition.

SgType * risc::Definition::get_ast_type ( ) [virtual, inherited]

Returns the type of the ast node.

std::string risc::Class::get_ast_type_name ( ) [virtual, inherited]

Returns the name of the module type.

Returns:: name of the module instance

Reimplemented from risc::Definition.

std::string risc::Definition::get_file_name ( ) [inherited]

Get the name of the file where the declaration is located.

Returns:: filename

int risc::Definition::get_line_number ( ) [inherited]

Get the line number of the instance.

Returns:: line number

std::string risc::Class::get_name ( ) [virtual, inherited]

returns the name of the module definition

Reimplemented from risc::Definition.

int risc::Definition::get_position_in_line ( ) [inherited]

Get the position of the in declaration in the corresponding line In other words the column in the line.

Returns:: position in line

bool risc::Definition::has_source_location ( ) [inherited]

Determines if a ast node has an associated ast node.

void risc::Module::initialize_functions ( )

This function searches for all functions, SC_THREADS, SC_CTHREADS, and SC_METHODS in the module definition. The corresponding variable vectors will be used.

void risc::Module::initialize_variables ( )

This function searches for all variable declarations in the module definition. The corresponding variable vectors will be used.

void risc::Module::print_hierarchy ( unsigned indent_level = 0 )

Prints the hierarchy. Roots is this definiton.

void risc::Module::print_module_definition ( )

Prints the complete module design into the terminal.
