SystemC  Recoding Infrastructure for SystemC v0.6.3 derived from Accellera SystemC 2.3.1
Accellera SystemC proof-of-concept library
Classes | Namespaces | Macros | Functions | Variables
sc_concatref.h File Reference
#include "sysc/kernel/sc_object.h"
#include "sysc/datatypes/misc/sc_value_base.h"
#include "sysc/utils/sc_temporary.h"
#include "sysc/datatypes/bit/sc_bv.h"
#include "sysc/datatypes/bit/sc_lv.h"
#include "sysc/datatypes/int/sc_int_base.h"
#include "sysc/datatypes/int/sc_uint_base.h"
#include "sysc/datatypes/int/sc_signed.h"
#include "sysc/datatypes/int/sc_unsigned.h"

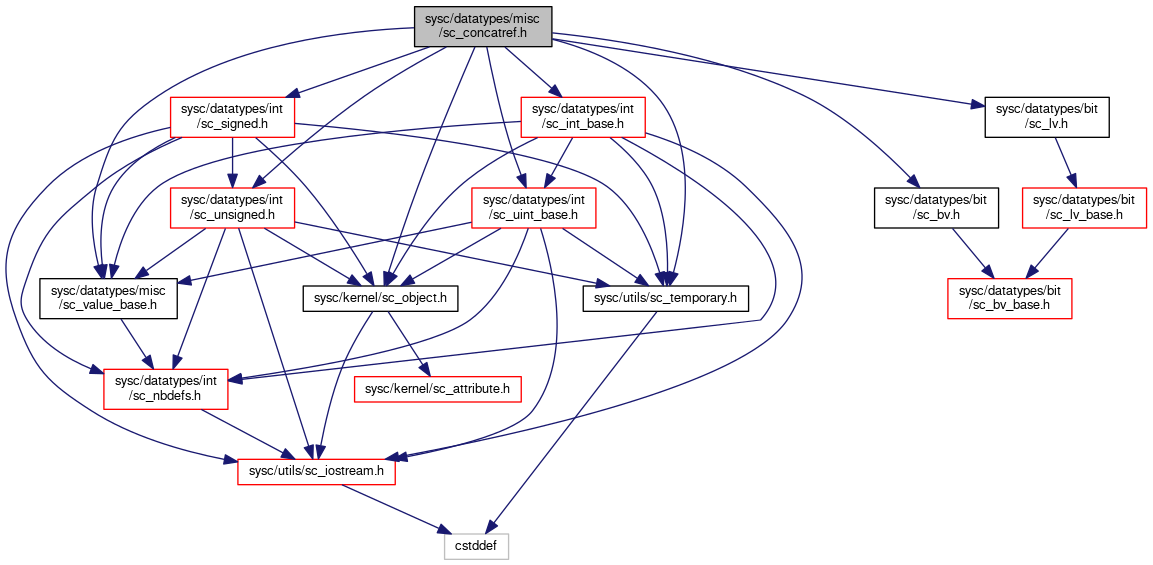

Include dependency graph for sc_concatref.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  sc_dt::sc_concatref

class  sc_dt::sc_concat_bool


Namespaces

 sc_core

 sc_dt


Macros

#define SC_CONCAT_OP_TYPE(RESULT, OP, OTHER_TYPE)

#define SC_CONCAT_OP(RESULT, OP)

#define SC_CONCAT_BOOL_OP(OP)


Functions

bool sc_dt::and_reduce (const sc_concatref &a)

bool sc_dt::nand_reduce (const sc_concatref &a)

bool sc_dt::or_reduce (const sc_concatref &a)

bool sc_dt::nor_reduce (const sc_concatref &a)

bool sc_dt::xor_reduce (const sc_concatref &a)

bool sc_dt::xnor_reduce (const sc_concatref &a)

const sc_unsigned sc_dt::operator<< (const sc_concatref &target, uint64 shift)

const sc_unsigned sc_dt::operator<< (const sc_concatref &target, int64 shift)

const sc_unsigned sc_dt::operator<< (const sc_concatref &target, unsigned long shift)

const sc_unsigned sc_dt::operator<< (const sc_concatref &target, int shift)

const sc_unsigned sc_dt::operator<< (const sc_concatref &target, unsigned int shift)

const sc_unsigned sc_dt::operator<< (const sc_concatref &target, long shift)

const sc_unsigned sc_dt::operator>> (const sc_concatref &target, uint64 shift)

const sc_unsigned sc_dt::operator>> (const sc_concatref &target, int64 shift)

const sc_unsigned sc_dt::operator>> (const sc_concatref &target, unsigned long shift)

const sc_unsigned sc_dt::operator>> (const sc_concatref &target, int shift)

const sc_unsigned sc_dt::operator>> (const sc_concatref &target, unsigned int shift)

const sc_unsigned sc_dt::operator>> (const sc_concatref &target, long shift)

inline::std::ostream & sc_dt::operator<< (::std::ostream &os, const sc_concatref &v)

inline::std::istream & sc_dt::operator>> (::std::istream &is, sc_concatref &a)

sc_dt::sc_concatref & sc_dt::concat (sc_dt::sc_value_base &a, sc_dt::sc_value_base &b)

const sc_dt::sc_concatref & sc_dt::concat (const sc_dt::sc_value_base &a, const sc_dt::sc_value_base &b)

const sc_dt::sc_concatref & sc_dt::concat (const sc_dt::sc_value_base &a, bool b)

const sc_dt::sc_concatref & sc_dt::concat (bool a, const sc_dt::sc_value_base &b)

sc_dt::sc_concatref & sc_dt::operator, (sc_dt::sc_value_base &a, sc_dt::sc_value_base &b)

const sc_dt::sc_concatref & sc_dt::operator, (const sc_dt::sc_value_base &a, const sc_dt::sc_value_base &b)

const sc_dt::sc_concatref & sc_dt::operator, (const sc_dt::sc_value_base &a, bool b)

const sc_dt::sc_concatref & sc_dt::operator, (bool a, const sc_dt::sc_value_base &b)


Variables

sc_byte_heap sc_core::sc_temp_heap


Macro Definition Documentation

#define SC_CONCAT_BOOL_OP (   OP)
Value:
inline bool operator OP ( const sc_concatref& a, const sc_concatref& b ) \
{ \
return a.value() OP b.value(); \
} \
SC_CONCAT_OP_TYPE(bool,OP,int) \
SC_CONCAT_OP_TYPE(bool,OP,long) \
SC_CONCAT_OP_TYPE(bool,OP,int64) \
SC_CONCAT_OP_TYPE(bool,OP,unsigned int) \
SC_CONCAT_OP_TYPE(bool,OP,unsigned long) \
SC_CONCAT_OP_TYPE(bool,OP,uint64) \
SC_CONCAT_OP_TYPE(bool,OP,const sc_int_base&) \
SC_CONCAT_OP_TYPE(bool,OP,const sc_uint_base&) \
SC_CONCAT_OP_TYPE(bool,OP,const sc_signed&) \
SC_CONCAT_OP_TYPE(bool,OP,const sc_unsigned&) \
inline bool operator OP ( const sc_concatref& a, bool b ) \
{ \
return a.value() OP (int)b; \
} \
inline bool operator OP ( bool a, const sc_concatref& b ) \
{ \
return (int)a OP b.value(); \
}
sc_dt::int64
int64_t int64
Definition: sc_nbdefs.h:182
sc_dt::sc_uint_base::value
uint_type value() const
Definition: sc_uint_base.h:799
SC_CONCAT_OP_TYPE
#define SC_CONCAT_OP_TYPE(RESULT, OP, OTHER_TYPE)
Definition: sc_concatref.h:672
sc_dt::b
uint64 const sc_uint_base int b
Definition: sc_fxval.h:1003
sc_dt::uint64
uint64_t uint64
Definition: sc_nbdefs.h:183
value
sc_clock period is zero sc_clock low time is zero sc_fifo< T > cannot have more than one writer bind interface to port failed complete binding failed remove port failed insert primitive channel failed sc_signal< T > cannot have more than one driver resolved port not bound to resolved signal sc_semaphore requires an initial value
Definition: sc_communication_ids.h:87

Definition at line 707 of file sc_concatref.h.

#define SC_CONCAT_OP (   RESULT,
  OP
)
Value:
inline RESULT operator OP ( const sc_concatref& a, const sc_concatref& b ) \
{ \
return a.value() OP b.value(); \
} \
SC_CONCAT_OP_TYPE(const sc_signed,OP,int) \
SC_CONCAT_OP_TYPE(const sc_signed,OP,long) \
SC_CONCAT_OP_TYPE(const sc_signed,OP,int64) \
SC_CONCAT_OP_TYPE(RESULT,OP,unsigned int) \
SC_CONCAT_OP_TYPE(RESULT,OP,unsigned long) \
SC_CONCAT_OP_TYPE(RESULT,OP,uint64) \
SC_CONCAT_OP_TYPE(const sc_signed,OP,const sc_int_base&) \
SC_CONCAT_OP_TYPE(RESULT,OP,const sc_uint_base&) \
SC_CONCAT_OP_TYPE(const sc_signed,OP,const sc_signed&) \
SC_CONCAT_OP_TYPE(RESULT,OP,const sc_unsigned&) \
inline RESULT operator OP ( const sc_concatref& a, bool b ) \
{ \
return a.value() OP (int)b; \
} \
inline RESULT operator OP ( bool a, const sc_concatref& b ) \
{ \
return (int)a OP b.value(); \
}
sc_dt::int64
int64_t int64
Definition: sc_nbdefs.h:182
sc_dt::sc_uint_base::value
uint_type value() const
Definition: sc_uint_base.h:799
SC_CONCAT_OP_TYPE
#define SC_CONCAT_OP_TYPE(RESULT, OP, OTHER_TYPE)
Definition: sc_concatref.h:672
sc_dt::b
uint64 const sc_uint_base int b
Definition: sc_fxval.h:1003
sc_dt::uint64
uint64_t uint64
Definition: sc_nbdefs.h:183
value
sc_clock period is zero sc_clock low time is zero sc_fifo< T > cannot have more than one writer bind interface to port failed complete binding failed remove port failed insert primitive channel failed sc_signal< T > cannot have more than one driver resolved port not bound to resolved signal sc_semaphore requires an initial value
Definition: sc_communication_ids.h:87

Definition at line 683 of file sc_concatref.h.

#define SC_CONCAT_OP_TYPE (   RESULT,
  OP,
  OTHER_TYPE
)
Value:
inline RESULT operator OP ( const sc_concatref& a, OTHER_TYPE b ) \
{ \
return a.value() OP b; \
} \
inline RESULT operator OP ( OTHER_TYPE a, const sc_concatref& b ) \
{ \
return a OP b.value(); \
}
sc_dt::sc_uint_base::value
uint_type value() const
Definition: sc_uint_base.h:799
sc_dt::b
uint64 const sc_uint_base int b
Definition: sc_fxval.h:1003

Definition at line 672 of file sc_concatref.h.
