sc_core::sc_port_b< IF > Class Template Reference

Abstract base class for class sc_port. More...

#include <sysc/communication/sc_port.h>

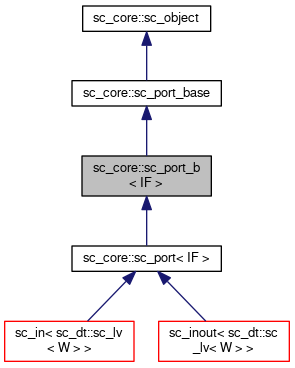

Inheritance diagram for sc_core::sc_port_b< IF >:
Inheritance graph
[legend]
Collaboration diagram for sc_core::sc_port_b< IF >:
Collaboration graph
[legend]

Public Types

typedef sc_port_base base_type

typedef sc_port_b< IF > this_type

typedef this_type port_type

- Public Types inherited from sc_core::sc_port_base
typedef sc_port_base this_type

- Public Types inherited from sc_core::sc_object
typedef unsigned phase_cb_mask


Public Member Functions

SC_VIRTUAL_ void bind (IF &interface_)

void operator() (IF &interface_)

SC_VIRTUAL_ void bind (port_type &parent_)

void operator() (port_type &parent_)

int size () const

IF * operator-> ()

const IF * operator-> () const

const IF * get_interface (int iface_i) const

IF * get_interface (int iface_i)

IF * operator[] (int index_)

const IF * operator[] (int index_) const

virtual sc_interfaceget_interface ()

virtual const sc_interfaceget_interface () const

- Public Member Functions inherited from sc_core::sc_port_base
int bind_count ()

virtual const char * kind () const

- Public Member Functions inherited from sc_core::sc_object
const char * name () const

const char * basename () const

virtual void print (::std::ostream &os=::std::cout) const

virtual void dump (::std::ostream &os=::std::cout) const

virtual void trace (sc_trace_file *tf) const

sc_simcontextsimcontext () const

bool add_attribute (sc_attr_base &)

sc_attr_baseget_attribute (const std::string &name_)

const sc_attr_baseget_attribute (const std::string &name_) const

sc_attr_baseremove_attribute (const std::string &name_)

void remove_all_attributes ()

int num_attributes () const

sc_attr_cltnattr_cltn ()

const sc_attr_cltnattr_cltn () const

virtual const std::vector
< sc_event * > &
get_child_events () const

virtual const std::vector
< sc_object * > &
get_child_objects () const

sc_objectget_parent () const

sc_objectget_parent_object () const


Protected Member Functions

 sc_port_b (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

 sc_port_b (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

virtual ~sc_port_b ()

virtual int vbind (sc_interface &)

virtual int vbind (sc_port_base &)

virtual void make_sensitive (sc_thread_handle, sc_event_finder *=0) const

virtual void make_sensitive (sc_method_handle, sc_event_finder *=0) const

- Protected Member Functions inherited from sc_core::sc_port_base
 sc_port_base (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

 sc_port_base (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

virtual ~sc_port_base ()

void bind (sc_interface &interface_)

void bind (this_type &parent_)

virtual void before_end_of_elaboration ()

virtual void end_of_elaboration ()

virtual void start_of_simulation ()

virtual void end_of_simulation ()

void report_error (const char *id, const char *add_msg=0) const

void add_static_event (sc_method_handle process_p, const sc_event &event) const

void add_static_event (sc_thread_handle process_p, const sc_event &event) const

- Protected Member Functions inherited from sc_core::sc_object
 sc_object ()

 sc_object (const char *nm)

 sc_object (const sc_object &)

sc_objectoperator= (const sc_object &)

virtual ~sc_object ()

virtual void add_child_event (sc_event *event_p)

virtual void add_child_object (sc_object *object_p)

virtual bool remove_child_event (sc_event *event_p)

virtual bool remove_child_object (sc_object *object_p)

phase_cb_mask register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask unregister_simulation_phase_callback (phase_cb_mask)


Friends

class sc_sensitive

class sc_sensitive_neg

class sc_sensitive_pos


Additional Inherited Members

- Protected Attributes inherited from sc_core::sc_port_base
sc_bind_info * m_bind_info


Detailed Description

template<class IF>
class sc_core::sc_port_b< IF >

Abstract base class for class sc_port.

Definition at line 249 of file sc_port.h.

Member Typedef Documentation

template<class IF>
typedef sc_port_base sc_core::sc_port_b< IF >::base_type

Definition at line 260 of file sc_port.h.

template<class IF>
typedef this_type sc_core::sc_port_b< IF >::port_type

Definition at line 262 of file sc_port.h.

template<class IF>
typedef sc_port_b<IF> sc_core::sc_port_b< IF >::this_type

Definition at line 261 of file sc_port.h.

Constructor & Destructor Documentation

template<class IF>
sc_core::sc_port_b< IF >::sc_port_b ( int  max_size_,
sc_port_policy  policy = SC_ONE_OR_MORE_BOUND
)
inlineexplicitprotected

Definition at line 316 of file sc_port.h.

template<class IF>
sc_core::sc_port_b< IF >::sc_port_b ( const char *  name_,
int  max_size_,
sc_port_policy  policy = SC_ONE_OR_MORE_BOUND
)
inlineprotected

Definition at line 321 of file sc_port.h.

template<class IF>
virtual sc_core::sc_port_b< IF >::~sc_port_b ( )
inlineprotectedvirtual

Definition at line 330 of file sc_port.h.

Member Function Documentation

template<class IF>
SC_VIRTUAL_ void sc_core::sc_port_b< IF >::bind ( IF &  interface_)
inline

Definition at line 268 of file sc_port.h.

template<class IF>
SC_VIRTUAL_ void sc_core::sc_port_b< IF >::bind ( port_type parent_)
inline

Definition at line 277 of file sc_port.h.

template<class IF >
const IF * sc_core::sc_port_b< IF >::get_interface ( int  iface_i) const
inline

Definition at line 492 of file sc_port.h.

template<class IF >
IF * sc_core::sc_port_b< IF >::get_interface ( int  iface_i)
inline

Definition at line 478 of file sc_port.h.

template<class IF>
virtual sc_interface* sc_core::sc_port_b< IF >::get_interface ( )
inlinevirtual

Implements sc_core::sc_port_base.

Definition at line 306 of file sc_port.h.

template<class IF>
virtual const sc_interface* sc_core::sc_port_b< IF >::get_interface ( ) const
inlinevirtual

Implements sc_core::sc_port_base.

Definition at line 309 of file sc_port.h.

template<class IF >
void sc_core::sc_port_b< IF >::make_sensitive ( sc_thread_handle  handle_p,
sc_event_finder event_finder_ = 0
) const
protectedvirtual

Reimplemented from sc_core::sc_port_base.

Definition at line 581 of file sc_port.h.

template<class IF >
void sc_core::sc_port_b< IF >::make_sensitive ( sc_method_handle  handle_p,
sc_event_finder event_finder_ = 0
) const
protectedvirtual

Reimplemented from sc_core::sc_port_base.

Definition at line 602 of file sc_port.h.

template<class IF>
void sc_core::sc_port_b< IF >::operator() ( IF &  interface_)
inline

Definition at line 271 of file sc_port.h.

template<class IF>
void sc_core::sc_port_b< IF >::operator() ( port_type parent_)
inline

Definition at line 280 of file sc_port.h.

template<class IF >
IF * sc_core::sc_port_b< IF >::operator-> ( )
inline

Definition at line 449 of file sc_port.h.

template<class IF >
const IF * sc_core::sc_port_b< IF >::operator-> ( ) const
inline

Definition at line 460 of file sc_port.h.

template<class IF>
IF* sc_core::sc_port_b< IF >::operator[] ( int  index_)
inline

Definition at line 298 of file sc_port.h.

template<class IF>
const IF* sc_core::sc_port_b< IF >::operator[] ( int  index_) const
inline

Definition at line 300 of file sc_port.h.

template<class IF>
int sc_core::sc_port_b< IF >::size ( ) const
inline

Definition at line 286 of file sc_port.h.

template<class IF >
int sc_core::sc_port_b< IF >::vbind ( sc_interface interface_)
inlineprotectedvirtual
template<class IF >
int sc_core::sc_port_b< IF >::vbind ( sc_port_base parent_)
inlineprotectedvirtual

Friends And Related Function Documentation

template<class IF>
friend class sc_sensitive
friend

Definition at line 254 of file sc_port.h.

template<class IF>
friend class sc_sensitive_neg
friend

Definition at line 255 of file sc_port.h.

template<class IF>
friend class sc_sensitive_pos
friend

Definition at line 256 of file sc_port.h.


The documentation for this class was generated from the following file:
