sc_core::sc_clock Class Reference

The clock channel. More...

#include <sysc/communication/sc_clock.h>

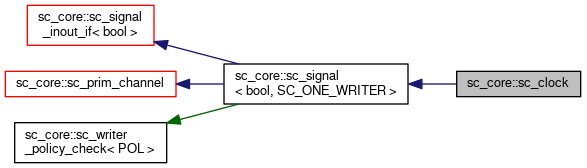

Inheritance diagram for sc_core::sc_clock:
Inheritance graph
[legend]

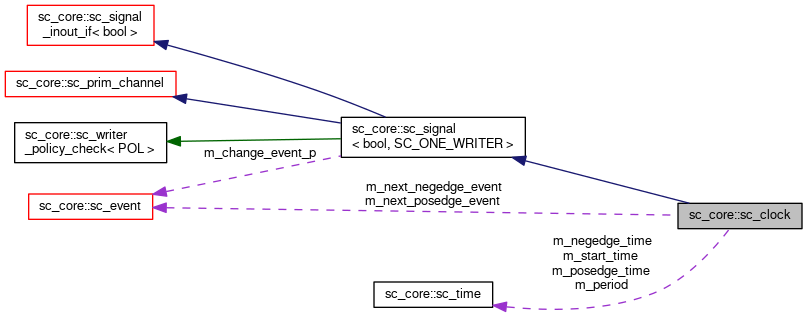

Collaboration diagram for sc_core::sc_clock:
Collaboration graph
[legend]

Public Member Functions

 sc_clock ()

 sc_clock (const char *name_)

 sc_clock (const char *name_, const sc_time &period_, double duty_cycle_=0.5, const sc_time &start_time_=SC_ZERO_TIME, bool posedge_first_=true)

 sc_clock (const char *name_, double period_v_, sc_time_unit period_tu_, double duty_cycle_=0.5)

 sc_clock (const char *name_, double period_v_, sc_time_unit period_tu_, double duty_cycle_, double start_time_v_, sc_time_unit start_time_tu_, bool posedge_first_=true)

 sc_clock (const char *name_, double period_, double duty_cycle_=0.5, double start_time_=0.0, bool posedge_first_=true)

virtual ~sc_clock ()

virtual void register_port (sc_port_base &, const char *if_type)

virtual void write (const bool &)

const sc_timeperiod () const

double duty_cycle () const

bool posedge_first () const

sc_time start_time () const

virtual const char * kind () const

- Public Member Functions inherited from sc_core::sc_signal< bool, SC_ONE_WRITER >
 sc_signal ()

 sc_signal (const char *name_)

 sc_signal (const char *name_, const bool &initial_value_)

virtual ~sc_signal ()

virtual sc_writer_policy get_writer_policy () const

virtual const sc_eventdefault_event () const

virtual const sc_eventvalue_changed_event () const

virtual const bool & read () const

virtual const bool & get_data_ref () const

virtual bool event () const

 operator const bool & () const

this_typeoperator= (const bool &a)

this_typeoperator= (const sc_signal_in_if< bool > &a)

this_typeoperator= (const this_type &a)

const bool & get_new_value () const

void trace (sc_trace_file *tf) const

virtual void print (::std::ostream &=::std::cout) const

virtual void dump (::std::ostream &=::std::cout) const

- Public Member Functions inherited from sc_core::sc_signal_in_if< bool >
virtual const sc_eventposedge_event () const =0

virtual const sc_eventnegedge_event () const =0

virtual bool posedge () const =0

virtual bool negedge () const =0

- Public Member Functions inherited from sc_core::sc_interface
virtual ~sc_interface ()

- Public Member Functions inherited from sc_core::sc_signal_write_if< bool >
 sc_signal_write_if ()

- Public Member Functions inherited from sc_core::sc_prim_channel
bool update_requested ()

void request_update ()

void async_request_update ()

- Public Member Functions inherited from sc_core::sc_object
const char * name () const

const char * basename () const

sc_simcontextsimcontext () const

bool add_attribute (sc_attr_base &)

sc_attr_baseget_attribute (const std::string &name_)

const sc_attr_baseget_attribute (const std::string &name_) const

sc_attr_baseremove_attribute (const std::string &name_)

void remove_all_attributes ()

int num_attributes () const

sc_attr_cltnattr_cltn ()

const sc_attr_cltnattr_cltn () const

virtual const std::vector
< sc_event * > &
get_child_events () const

virtual const std::vector
< sc_object * > &
get_child_objects () const

sc_objectget_parent () const

sc_objectget_parent_object () const


Static Public Member Functions

static const sc_timetime_stamp ()


Protected Member Functions

void before_end_of_elaboration ()
 This function is not supported by the out-of-order simulation in the current release. More...

void posedge_action ()

void negedge_action ()

void report_error (const char *id, const char *add_msg=0) const

void init (const sc_time &, double, const sc_time &, bool)

bool is_clock () const

- Protected Member Functions inherited from sc_core::sc_signal< bool, SC_ONE_WRITER >
virtual void update ()
 The update method (does nothing by default). More...

void do_update ()

- Protected Member Functions inherited from sc_core::sc_signal_inout_if< bool >
 sc_signal_inout_if ()

- Protected Member Functions inherited from sc_core::sc_signal_in_if< bool >
 sc_signal_in_if ()

- Protected Member Functions inherited from sc_core::sc_interface
 sc_interface ()

- Protected Member Functions inherited from sc_core::sc_prim_channel
 sc_prim_channel ()

 sc_prim_channel (const char *)

virtual ~sc_prim_channel ()

virtual void end_of_elaboration ()

virtual void start_of_simulation ()

virtual void end_of_simulation ()

void wait (int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_event &e, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_event_or_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_event_and_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, const sc_event &e, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, const sc_event &e, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, const sc_event_or_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, const sc_event_or_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, const sc_event_and_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, const sc_event_and_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (int n, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger ()
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_event &e)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_event_or_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_event_and_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t, const sc_event &e)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu, const sc_event &e)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t, const sc_event_or_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu, const sc_event_or_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t, const sc_event_and_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu, const sc_event_and_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

bool timed_out ()

- Protected Member Functions inherited from sc_core::sc_object
 sc_object ()

 sc_object (const char *nm)

 sc_object (const sc_object &)

sc_objectoperator= (const sc_object &)

virtual ~sc_object ()

virtual void add_child_event (sc_event *event_p)

virtual void add_child_object (sc_object *object_p)

virtual bool remove_child_event (sc_event *event_p)

virtual bool remove_child_object (sc_object *object_p)

phase_cb_mask register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask unregister_simulation_phase_callback (phase_cb_mask)


Protected Attributes

sc_time m_period

double m_duty_cycle

sc_time m_start_time

bool m_posedge_first

sc_time m_posedge_time

sc_time m_negedge_time

sc_event m_next_posedge_event

sc_event m_next_negedge_event

- Protected Attributes inherited from sc_core::sc_signal< bool, SC_ONE_WRITER >
sc_eventm_change_event_p

bool m_cur_val

sc_dt::uint64 m_change_stamp

bool m_new_val

- Protected Attributes inherited from sc_core::sc_prim_channel
CHNL_MTX_TYPE_ m_mutex
 A mutex to protect concurrent communication. More...


Friends

class sc_clock_posedge_callback

class sc_clock_negedge_callback


Additional Inherited Members

- Public Types inherited from sc_core::sc_prim_channel
enum  { list_end = 0xdb }

- Public Types inherited from sc_core::sc_object
typedef unsigned phase_cb_mask

- Protected Types inherited from sc_core::sc_signal< bool, SC_ONE_WRITER >
typedef sc_signal_inout_if< bool > if_type

typedef sc_signal< bool, POL > this_type

typedef sc_writer_policy_check
< POL >
policy_type


Detailed Description

The clock channel.

Definition at line 43 of file sc_clock.h.

Constructor & Destructor Documentation

sc_core::sc_clock::sc_clock ( )
sc_core::sc_clock::sc_clock ( const char *  name_)
explicit
sc_core::sc_clock::sc_clock ( const char *  name_,
const sc_time period_,
double  duty_cycle_ = 0.5,
const sc_time start_time_ = SC_ZERO_TIME,
bool  posedge_first_ = true
)
sc_core::sc_clock::sc_clock ( const char *  name_,
double  period_v_,
sc_time_unit  period_tu_,
double  duty_cycle_ = 0.5
)
sc_core::sc_clock::sc_clock ( const char *  name_,
double  period_v_,
sc_time_unit  period_tu_,
double  duty_cycle_,
double  start_time_v_,
sc_time_unit  start_time_tu_,
bool  posedge_first_ = true
)
sc_core::sc_clock::sc_clock ( const char *  name_,
double  period_,
double  duty_cycle_ = 0.5,
double  start_time_ = 0.0,
bool  posedge_first_ = true
)
virtual sc_core::sc_clock::~sc_clock ( )
virtual

Member Function Documentation

void sc_core::sc_clock::before_end_of_elaboration ( )
protectedvirtual

This function is not supported by the out-of-order simulation in the current release.

Reimplemented from sc_core::sc_prim_channel.

double sc_core::sc_clock::duty_cycle ( ) const
inline

Definition at line 95 of file sc_clock.h.

void sc_core::sc_clock::init ( const sc_time ,
double  ,
const sc_time ,
bool
)
protected
bool sc_core::sc_clock::is_clock ( ) const
inlineprotected

Definition at line 155 of file sc_clock.h.

virtual const char* sc_core::sc_clock::kind ( ) const
inlinevirtual

Reimplemented from sc_core::sc_signal< bool, SC_ONE_WRITER >.

Definition at line 109 of file sc_clock.h.

void sc_core::sc_clock::negedge_action ( )
inlineprotected

Definition at line 196 of file sc_clock.h.

const sc_time& sc_core::sc_clock::period ( ) const
inline

Definition at line 91 of file sc_clock.h.

void sc_core::sc_clock::posedge_action ( )
inlineprotected

Definition at line 183 of file sc_clock.h.

bool sc_core::sc_clock::posedge_first ( ) const
inline

Definition at line 101 of file sc_clock.h.

virtual void sc_core::sc_clock::register_port ( sc_port_base ,
const char *  if_type
)
virtual
void sc_core::sc_clock::report_error ( const char *  id,
const char *  add_msg = 0
) const
protected
sc_time sc_core::sc_clock::start_time ( ) const
inline

Definition at line 104 of file sc_clock.h.

static const sc_time& sc_core::sc_clock::time_stamp ( )
static
virtual void sc_core::sc_clock::write ( const bool &  )
virtual

Friends And Related Function Documentation

friend class sc_clock_negedge_callback
friend

Definition at line 50 of file sc_clock.h.

friend class sc_clock_posedge_callback
friend

Definition at line 49 of file sc_clock.h.

Member Data Documentation

double sc_core::sc_clock::m_duty_cycle
protected

Definition at line 160 of file sc_clock.h.

sc_time sc_core::sc_clock::m_negedge_time
protected

Definition at line 164 of file sc_clock.h.

sc_event sc_core::sc_clock::m_next_negedge_event
protected

Definition at line 167 of file sc_clock.h.

sc_event sc_core::sc_clock::m_next_posedge_event
protected

Definition at line 166 of file sc_clock.h.

sc_time sc_core::sc_clock::m_period
protected

Definition at line 159 of file sc_clock.h.

bool sc_core::sc_clock::m_posedge_first
protected

Definition at line 162 of file sc_clock.h.

sc_time sc_core::sc_clock::m_posedge_time
protected

Definition at line 163 of file sc_clock.h.

sc_time sc_core::sc_clock::m_start_time
protected

Definition at line 161 of file sc_clock.h.


The documentation for this class was generated from the following file:
