#include <prediction_event_notification_table.h>

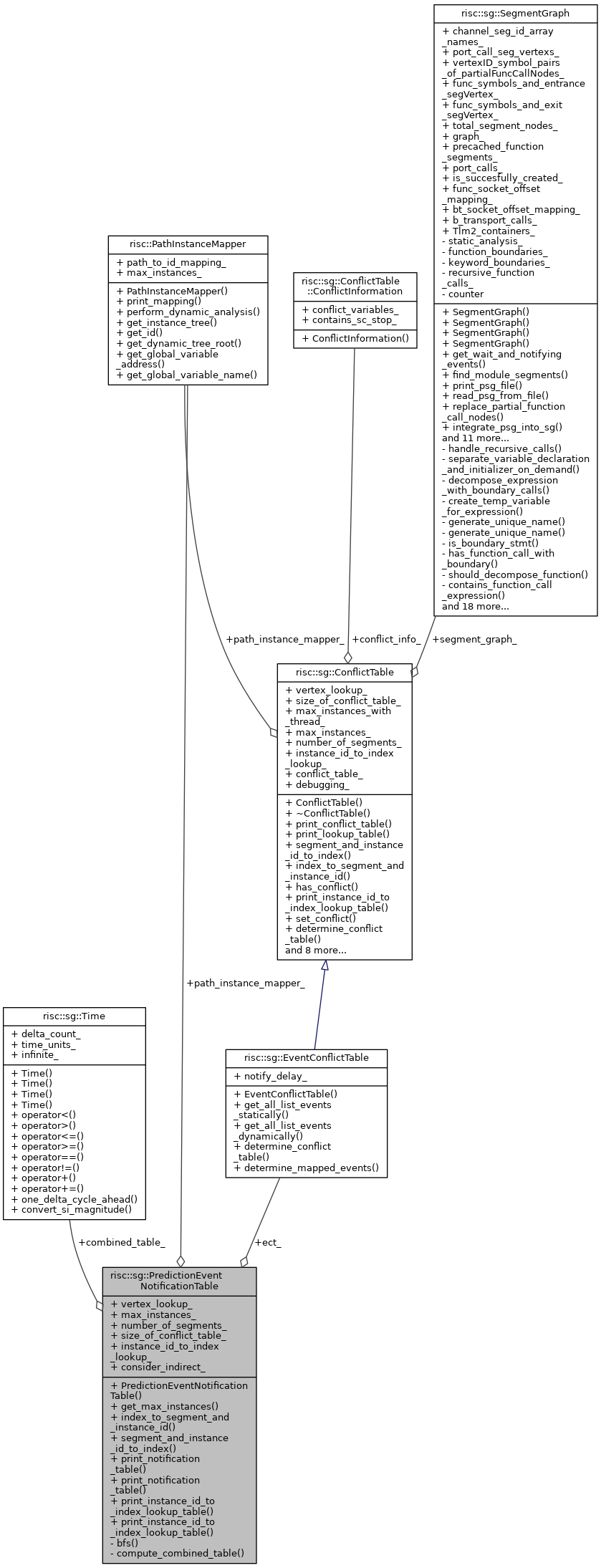

Collaboration diagram for risc::sg::PredictionEventNotificationTable:

Classes
struct	Node

Public Member Functions
	PredictionEventNotificationTable (risc::sg::EventConflictTable &ect, PathInstanceMapper *path_instance_mapper, bool t=true)
	Creates the combined data conflict table. The maximum number of steps will be calculated automatically. More...

int	get_max_instances (int segment_id)
	This functions returns how many instances of a given segment exist. More...

std::pair< int, int >	index_to_segment_and_instance_id (int index)
	This function translates a given index from the conflict table into the corresponding segment id and instance id. The first value is the segment id and the second value is the instance id. More...

int	segment_and_instance_id_to_index (int segment_id, int instance_id)
	This function translates a given segment id and instance id to a index of the conflict table. More...

void	print_notification_table ()
	This function prints the prediction event notification table in the terminal. More...

void	print_notification_table (std::string filename)
	This function prints the prediction event notification table in the file filename. More...

void	print_instance_id_to_index_lookup_table ()
	This function prints the table instance_id_to_index_lookup_ table in the terminal. More...

void	print_instance_id_to_index_lookup_table (std::string filename)
	This function prints the table instance_id_to_index_lookup_ table in the file filename. More...

Public Attributes
PathInstanceMapper *	path_instance_mapper_

VertexDescriptor *	vertex_lookup_
	This lookup table translates segment ids into vertex descriptors. At position i is the segment with the id of instance_id_to_index_lookup_[0][i]. More...

int	max_instances_
	This variable represents the max number of module instances in the design. Also, this is the number of rows in the instance_id_to_index_lookup_ table. More...

int	number_of_segments_
	This variable defines how many segments exist in the segment graph. Also, this is the number of columns in the instance_id_to_index_lookup_ table. More...

int	size_of_conflict_table_
	This variable defines the size of the conflict table. The size is quadratic. More...

int **	instance_id_to_index_lookup_
	This table should be used a lookup table: (segment id, instance id) -> index of conflict table. More...

Time **	combined_table_
	The prediction event notification table. More...

risc::sg::EventConflictTable &	ect_
	Refers to the real event conflict table. More...

bool	consider_indirect_
	Whether or not the predicition considers indirect notification: seg1 notifies seg2, seg2 then notifies seg3. If false, this not considered in prediction. Default is true. More...

Private Types
typedef std::pair < VertexDescriptor, Time >	SegmentTimeTuple

Private Member Functions
void	bfs (VertexDescriptor start, int instance)

void	compute_combined_table ()
	This function computes the combined table for 'prediction_steps_' prediction steps. More...

Member Typedef Documentation

typedef std::pair<VertexDescriptor, Time> risc::sg::PredictionEventNotificationTable::SegmentTimeTuple

private

Constructor & Destructor Documentation

risc::sg::PredictionEventNotificationTable::PredictionEventNotificationTable	(	risc::sg::EventConflictTable &	ect,
		PathInstanceMapper *	path_instance_mapper,
		bool	t = `true`
	)

Creates the combined data conflict table. The maximum number of steps will be calculated automatically.

Member Function Documentation

risc::sg::PredictionEventNotificationTable::bfs	(	VertexDescriptor	start,
		int	instance
	)

private

risc::sg::PredictionEventNotificationTable::compute_combined_table ( )

private

This function computes the combined table for 'prediction_steps_' prediction steps.

risc::sg::PredictionEventNotificationTable::get_max_instances ( int segment_id )

This functions returns how many instances of a given segment exist.

risc::sg::PredictionEventNotificationTable::index_to_segment_and_instance_id ( int index )

This function translates a given index from the conflict table into the corresponding segment id and instance id. The first value is the segment id and the second value is the instance id.

risc::sg::PredictionEventNotificationTable::print_instance_id_to_index_lookup_table ( )

This function prints the table instance_id_to_index_lookup_ table in the terminal.

risc::sg::PredictionEventNotificationTable::print_instance_id_to_index_lookup_table ( std::string filename )

This function prints the table instance_id_to_index_lookup_ table in the file filename.

risc::sg::PredictionEventNotificationTable::print_notification_table ( )

This function prints the prediction event notification table in the terminal.

risc::sg::PredictionEventNotificationTable::print_notification_table ( std::string filename )

This function prints the prediction event notification table in the file filename.

risc::sg::PredictionEventNotificationTable::segment_and_instance_id_to_index	(	int	segment_id,
		int	instance_id
	)

This function translates a given segment id and instance id to a index of the conflict table.

Member Data Documentation

Time** risc::sg::PredictionEventNotificationTable::combined_table_

The prediction event notification table.

bool risc::sg::PredictionEventNotificationTable::consider_indirect_

Whether or not the predicition considers indirect notification: seg1 notifies seg2, seg2 then notifies seg3. If false, this not considered in prediction. Default is true.

risc::sg::EventConflictTable& risc::sg::PredictionEventNotificationTable::ect_

Refers to the real event conflict table.

int** risc::sg::PredictionEventNotificationTable::instance_id_to_index_lookup_

This table should be used a lookup table: (segment id, instance id) -> index of conflict table.

int risc::sg::PredictionEventNotificationTable::max_instances_

This variable represents the max number of module instances in the design. Also, this is the number of rows in the instance_id_to_index_lookup_ table.

int risc::sg::PredictionEventNotificationTable::number_of_segments_

This variable defines how many segments exist in the segment graph. Also, this is the number of columns in the instance_id_to_index_lookup_ table.

PathInstanceMapper* risc::sg::PredictionEventNotificationTable::path_instance_mapper_

int risc::sg::PredictionEventNotificationTable::size_of_conflict_table_

This variable defines the size of the conflict table. The size is quadratic.

VertexDescriptor* risc::sg::PredictionEventNotificationTable::vertex_lookup_

This lookup table translates segment ids into vertex descriptors. At position i is the segment with the id of instance_id_to_index_lookup_[0][i].

The documentation for this class was generated from the following files:

/local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/segment_graph/prediction_event_notification_table.h
/local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/segment_graph/prediction_event_notification_table.cpp
