sc_core::sc_signal_in_if< sc_dt::sc_logic > Class Template Reference

Specialization of sc_signal_in_if<T> for type sc_dt::sc_logic. More...

#include <sysc/communication/sc_signal_ifs.h>

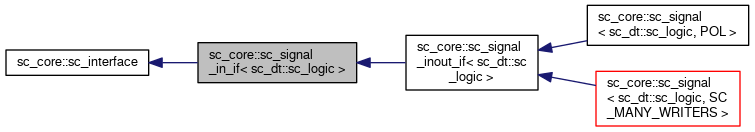

Inheritance diagram for sc_core::sc_signal_in_if< sc_dt::sc_logic >:

Collaboration diagram for sc_core::sc_signal_in_if< sc_dt::sc_logic >:

Public Member Functions
virtual const sc_event &	value_changed_event () const =0
virtual const sc_event &	posedge_event () const =0
virtual const sc_event &	negedge_event () const =0
virtual const sc_dt::sc_logic &	read () const =0
virtual const sc_dt::sc_logic &	get_data_ref () const =0
virtual bool	event () const =0
virtual bool	posedge () const =0
virtual bool	negedge () const =0
Public Member Functions inherited from sc_core::sc_interface
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const
virtual	~sc_interface ()

Protected Member Functions
	sc_signal_in_if ()
Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()

Detailed Description

template<>
class sc_core::sc_signal_in_if< sc_dt::sc_logic >

Specialization of sc_signal_in_if<T> for type sc_dt::sc_logic.

Definition at line 154 of file sc_signal_ifs.h.

Constructor & Destructor Documentation

sc_core::sc_signal_in_if< sc_dt::sc_logic >::sc_signal_in_if ( )

inlineprotected

Definition at line 190 of file sc_signal_ifs.h.

Member Function Documentation

virtual bool sc_core::sc_signal_in_if< sc_dt::sc_logic >::event ( ) const

pure virtual

Implemented in sc_core::sc_signal< sc_dt::sc_logic, POL >, and sc_core::sc_signal< sc_dt::sc_logic, SC_MANY_WRITERS >.

virtual const sc_dt::sc_logic& sc_core::sc_signal_in_if< sc_dt::sc_logic >::get_data_ref ( ) const

pure virtual

Implemented in sc_core::sc_signal< sc_dt::sc_logic, POL >, and sc_core::sc_signal< sc_dt::sc_logic, SC_MANY_WRITERS >.

virtual bool sc_core::sc_signal_in_if< sc_dt::sc_logic >::negedge ( ) const

pure virtual

Implemented in sc_core::sc_signal< sc_dt::sc_logic, POL >.

virtual const sc_event& sc_core::sc_signal_in_if< sc_dt::sc_logic >::negedge_event ( ) const

pure virtual

Implemented in sc_core::sc_signal< sc_dt::sc_logic, POL >.

virtual bool sc_core::sc_signal_in_if< sc_dt::sc_logic >::posedge ( ) const

pure virtual

Implemented in sc_core::sc_signal< sc_dt::sc_logic, POL >.

virtual const sc_event& sc_core::sc_signal_in_if< sc_dt::sc_logic >::posedge_event ( ) const

pure virtual

Implemented in sc_core::sc_signal< sc_dt::sc_logic, POL >.

virtual const sc_dt::sc_logic& sc_core::sc_signal_in_if< sc_dt::sc_logic >::read ( ) const

pure virtual

Implemented in sc_core::sc_signal< sc_dt::sc_logic, POL >, and sc_core::sc_signal< sc_dt::sc_logic, SC_MANY_WRITERS >.

virtual const sc_event& sc_core::sc_signal_in_if< sc_dt::sc_logic >::value_changed_event ( ) const

pure virtual

Implemented in sc_core::sc_signal< sc_dt::sc_logic, POL >, and sc_core::sc_signal< sc_dt::sc_logic, SC_MANY_WRITERS >.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_signal_ifs.h
