sc_core::sc_semaphore Class Reference

The sc_semaphore primitive channel class. More...

#include <sysc/communication/sc_semaphore.h>

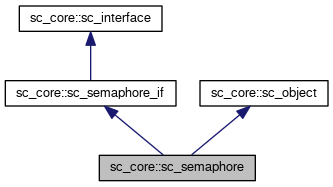

Inheritance diagram for sc_core::sc_semaphore:

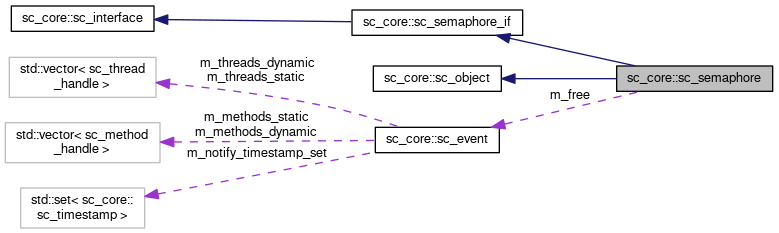

Collaboration diagram for sc_core::sc_semaphore:

Public Member Functions
	sc_semaphore (int init_value_)
	sc_semaphore (const char *name_, int init_value_)
virtual int	wait (int)
	A new parameter segment ID is added for the out-of-order simulation. More...
virtual int	trywait ()
virtual int	post ()
virtual int	get_value () const
virtual const char *	kind () const
Public Member Functions inherited from sc_core::sc_interface
virtual void	register_port (sc_port_base &port_, const char *if_typename_)
virtual const sc_event &	default_event () const
virtual	~sc_interface ()
Public Member Functions inherited from sc_core::sc_object
const char *	name () const
const char *	basename () const
virtual void	print (::std::ostream &os=::std::cout) const
virtual void	dump (::std::ostream &os=::std::cout) const
virtual void	trace (sc_trace_file *tf) const
sc_simcontext *	simcontext () const
bool	add_attribute (sc_attr_base &)
sc_attr_base *	get_attribute (const std::string &name_)
const sc_attr_base *	get_attribute (const std::string &name_) const
sc_attr_base *	remove_attribute (const std::string &name_)
void	remove_all_attributes ()
int	num_attributes () const
sc_attr_cltn &	attr_cltn ()
const sc_attr_cltn &	attr_cltn () const
virtual const std::vector < sc_event * > &	get_child_events () const
virtual const std::vector < sc_object * > &	get_child_objects () const
sc_object *	get_parent () const
sc_object *	get_parent_object () const

Protected Member Functions
bool	in_use () const
void	report_error (const char *id, const char *add_msg=0) const
Protected Member Functions inherited from sc_core::sc_semaphore_if
	sc_semaphore_if ()
Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()
Protected Member Functions inherited from sc_core::sc_object
	sc_object ()
	sc_object (const char *nm)
	sc_object (const sc_object &)
sc_object &	operator= (const sc_object &)
virtual	~sc_object ()
virtual void	add_child_event (sc_event *event_p)
virtual void	add_child_object (sc_object *object_p)
virtual bool	remove_child_event (sc_event *event_p)
virtual bool	remove_child_object (sc_object *object_p)
phase_cb_mask	register_simulation_phase_callback (phase_cb_mask)
phase_cb_mask	unregister_simulation_phase_callback (phase_cb_mask)

Protected Attributes
sc_event	m_free
int	m_value
CHNL_MTX_TYPE_	m_mutex
	A lock to protect concurrent communication through sc_semaphore. More...

Additional Inherited Members
Public Types inherited from sc_core::sc_object
typedef unsigned	phase_cb_mask

Detailed Description

The sc_semaphore primitive channel class.

Definition at line 46 of file sc_semaphore.h.

Constructor & Destructor Documentation

sc_core::sc_semaphore::sc_semaphore ( int  init_value_ )

explicit

sc_core::sc_semaphore::sc_semaphore	(	const char *	name_,
		int	init_value_
	)

Member Function Documentation

virtual int sc_core::sc_semaphore::get_value ( ) const

inlinevirtual

Implements sc_core::sc_semaphore_if.

Definition at line 76 of file sc_semaphore.h.

bool sc_core::sc_semaphore::in_use ( ) const

inlineprotected

Definition at line 92 of file sc_semaphore.h.

virtual const char* sc_core::sc_semaphore::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 85 of file sc_semaphore.h.

virtual int sc_core::sc_semaphore::post ( )

virtual

Implements sc_core::sc_semaphore_if.

void sc_core::sc_semaphore::report_error ( const char *  id, const char *  add_msg = 0  ) const

protected

virtual int sc_core::sc_semaphore::trywait ( )

virtual

Implements sc_core::sc_semaphore_if.

virtual int sc_core::sc_semaphore::wait ( int  )

virtual

A new parameter segment ID is added for the out-of-order simulation.

Implements sc_core::sc_semaphore_if.

Member Data Documentation

sc_event sc_core::sc_semaphore::m_free

protected

Definition at line 101 of file sc_semaphore.h.

CHNL_MTX_TYPE_ sc_core::sc_semaphore::m_mutex

mutableprotected

A lock to protect concurrent communication through sc_semaphore.

Definition at line 108 of file sc_semaphore.h.

int sc_core::sc_semaphore::m_value

protected

Definition at line 102 of file sc_semaphore.h.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_semaphore.h
