sc_core::sc_ppq_base Class Reference

#include <sysc/utils/sc_pq.h>

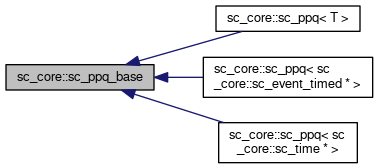

Inheritance diagram for sc_core::sc_ppq_base:
Inheritance graph
[legend]

Public Types

typedef int(* compare_fn_t )(const void *, const void *)


Public Member Functions

 sc_ppq_base (int sz, compare_fn_t cmp)

 ~sc_ppq_base ()

void * top () const

void * extract_top ()

void insert (void *elem)

int size () const

bool empty () const


Protected Member Functions

int parent (int i) const

int left (int i) const

int right (int i) const

void heapify (int i)


Detailed Description

Definition at line 42 of file sc_pq.h.

Member Typedef Documentation

typedef int(* sc_core::sc_ppq_base::compare_fn_t)(const void *, const void *)

Definition at line 46 of file sc_pq.h.

Constructor & Destructor Documentation

sc_core::sc_ppq_base::sc_ppq_base ( int  sz,
compare_fn_t  cmp
)
sc_core::sc_ppq_base::~sc_ppq_base ( )

Member Function Documentation

bool sc_core::sc_ppq_base::empty ( ) const
inline

Definition at line 62 of file sc_pq.h.

void* sc_core::sc_ppq_base::extract_top ( )
void sc_core::sc_ppq_base::heapify ( int  i)
protected
void sc_core::sc_ppq_base::insert ( void *  elem)
int sc_core::sc_ppq_base::left ( int  i) const
inlineprotected

Definition at line 70 of file sc_pq.h.

int sc_core::sc_ppq_base::parent ( int  i) const
inlineprotected

Definition at line 67 of file sc_pq.h.

int sc_core::sc_ppq_base::right ( int  i) const
inlineprotected

Definition at line 73 of file sc_pq.h.

int sc_core::sc_ppq_base::size ( ) const
inline

Definition at line 59 of file sc_pq.h.

void* sc_core::sc_ppq_base::top ( ) const
inline

Definition at line 52 of file sc_pq.h.


The documentation for this class was generated from the following file:
