sc_core::sc_in_resolved Class Reference

The sc_signal_resolved input port class. More...

#include <sysc/communication/sc_signal_resolved_ports.h>

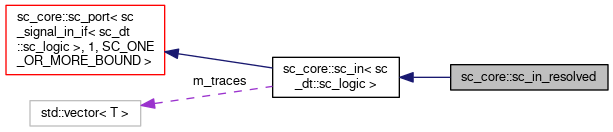

Inheritance diagram for sc_core::sc_in_resolved:
Inheritance graph
[legend]
Collaboration diagram for sc_core::sc_in_resolved:
Collaboration graph
[legend]

Public Types

typedef sc_dt::sc_logic data_type

typedef sc_in_resolved this_type

typedef sc_in< data_typebase_type

typedef base_type::in_if_type in_if_type

typedef base_type::in_port_type in_port_type

typedef base_type::inout_port_type inout_port_type

- Public Types inherited from sc_core::sc_in< sc_dt::sc_logic >
typedef sc_dt::sc_logic data_type

typedef sc_signal_in_if
< data_type
if_type

typedef sc_port< if_type,
1, SC_ONE_OR_MORE_BOUND
base_type

typedef sc_in< data_typethis_type

typedef base_type::port_type base_port_type

typedef if_type in_if_type

typedef base_type in_port_type

typedef sc_signal_inout_if
< data_type
inout_if_type

typedef sc_port< inout_if_type,
1, SC_ONE_OR_MORE_BOUND
inout_port_type

- Public Types inherited from sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >
typedef sc_port_base base_type

typedef sc_port_b
< sc_signal_in_if
< sc_dt::sc_logic > >
this_type

typedef this_type port_type

- Public Types inherited from sc_core::sc_port_base
typedef sc_port_base this_type

- Public Types inherited from sc_core::sc_object
typedef unsigned phase_cb_mask


Public Member Functions

 sc_in_resolved ()

 sc_in_resolved (const char *name_)

 sc_in_resolved (const in_if_type &interface_)

 sc_in_resolved (const char *name_, const in_if_type &interface_)

 sc_in_resolved (in_port_type &parent_)

 sc_in_resolved (const char *name_, in_port_type &parent_)

 sc_in_resolved (inout_port_type &parent_)

 sc_in_resolved (const char *name_, inout_port_type &parent_)

 sc_in_resolved (this_type &parent_)

 sc_in_resolved (const char *name_, this_type &parent_)

virtual ~sc_in_resolved ()

virtual void end_of_elaboration ()

virtual const char * kind () const

- Public Member Functions inherited from sc_core::sc_in< sc_dt::sc_logic >
 sc_in ()

 sc_in (const char *name_)

 sc_in (const in_if_type &interface_)

 sc_in (const char *name_, const in_if_type &interface_)

 sc_in (in_port_type &parent_)

 sc_in (const char *name_, in_port_type &parent_)

 sc_in (inout_port_type &parent_)

 sc_in (const char *name_, inout_port_type &parent_)

 sc_in (this_type &parent_)

 sc_in (const char *name_, this_type &parent_)

virtual ~sc_in ()

SC_VIRTUAL_ void bind (const in_if_type &interface_)

SC_VIRTUAL_ void bind (in_if_type &interface_)

void operator() (const in_if_type &interface_)

SC_VIRTUAL_ void bind (in_port_type &parent_)

void operator() (in_port_type &parent_)

SC_VIRTUAL_ void bind (inout_port_type &parent_)

void operator() (inout_port_type &parent_)

const sc_eventdefault_event () const

const sc_eventvalue_changed_event () const

const sc_eventposedge_event () const

const sc_eventnegedge_event () const

const data_typeread () const

 operator const data_type & () const

sc_event_finderpos () const

sc_event_finderneg () const

bool event () const

bool posedge () const

bool negedge () const

sc_event_findervalue_changed () const

void add_trace (sc_trace_file *, const std::string &) const

void add_trace_internal (sc_trace_file *, const std::string &) const

- Public Member Functions inherited from sc_core::sc_port< sc_signal_in_if< sc_dt::sc_logic >, 1, SC_ONE_OR_MORE_BOUND >
 sc_port ()

 sc_port (const char *name_)

 sc_port (sc_signal_in_if< sc_dt::sc_logic > &interface_)

 sc_port (const char *name_, sc_signal_in_if< sc_dt::sc_logic > &interface_)

 sc_port (base_type &parent_)

 sc_port (const char *name_, base_type &parent_)

 sc_port (this_type &parent_)

 sc_port (const char *name_, this_type &parent_)

virtual ~sc_port ()

- Public Member Functions inherited from sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >
SC_VIRTUAL_ void bind (sc_signal_in_if< sc_dt::sc_logic > &interface_)

SC_VIRTUAL_ void bind (port_type &parent_)

void operator() (sc_signal_in_if< sc_dt::sc_logic > &interface_)

void operator() (port_type &parent_)

int size () const

sc_signal_in_if
< sc_dt::sc_logic > *
operator-> ()

const sc_signal_in_if
< sc_dt::sc_logic > *
operator-> () const

const sc_signal_in_if
< sc_dt::sc_logic > *
get_interface (int iface_i) const

sc_signal_in_if
< sc_dt::sc_logic > *
get_interface (int iface_i)

virtual sc_interfaceget_interface ()

virtual const sc_interfaceget_interface () const

sc_signal_in_if
< sc_dt::sc_logic > *
operator[] (int index_)

const sc_signal_in_if
< sc_dt::sc_logic > *
operator[] (int index_) const

- Public Member Functions inherited from sc_core::sc_port_base
int bind_count ()

- Public Member Functions inherited from sc_core::sc_object
const char * name () const

const char * basename () const

virtual void print (::std::ostream &os=::std::cout) const

virtual void dump (::std::ostream &os=::std::cout) const

virtual void trace (sc_trace_file *tf) const

sc_simcontextsimcontext () const

bool add_attribute (sc_attr_base &)

sc_attr_baseget_attribute (const std::string &name_)

const sc_attr_baseget_attribute (const std::string &name_) const

sc_attr_baseremove_attribute (const std::string &name_)

void remove_all_attributes ()

int num_attributes () const

sc_attr_cltnattr_cltn ()

const sc_attr_cltnattr_cltn () const

virtual const std::vector
< sc_event * > &
get_child_events () const

virtual const std::vector
< sc_object * > &
get_child_objects () const

sc_objectget_parent () const

sc_objectget_parent_object () const


Additional Inherited Members

- Protected Member Functions inherited from sc_core::sc_in< sc_dt::sc_logic >
void remove_traces () const

virtual int vbind (sc_interface &)

virtual int vbind (sc_port_base &)

SC_VIRTUAL_ void bind (base_port_type &parent_)

- Protected Member Functions inherited from sc_core::sc_port_b< sc_signal_in_if< sc_dt::sc_logic > >
 sc_port_b (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

 sc_port_b (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

virtual ~sc_port_b ()

virtual void make_sensitive (sc_thread_handle, sc_event_finder *=0) const

virtual void make_sensitive (sc_method_handle, sc_event_finder *=0) const

- Protected Member Functions inherited from sc_core::sc_port_base
 sc_port_base (int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

 sc_port_base (const char *name_, int max_size_, sc_port_policy policy=SC_ONE_OR_MORE_BOUND)

virtual ~sc_port_base ()

void bind (sc_interface &interface_)

void bind (this_type &parent_)

virtual void before_end_of_elaboration ()

virtual void start_of_simulation ()

virtual void end_of_simulation ()

void report_error (const char *id, const char *add_msg=0) const

void add_static_event (sc_method_handle process_p, const sc_event &event) const

void add_static_event (sc_thread_handle process_p, const sc_event &event) const

- Protected Member Functions inherited from sc_core::sc_object
 sc_object ()

 sc_object (const char *nm)

 sc_object (const sc_object &)

sc_objectoperator= (const sc_object &)

virtual ~sc_object ()

virtual void add_child_event (sc_event *event_p)

virtual void add_child_object (sc_object *object_p)

virtual bool remove_child_event (sc_event *event_p)

virtual bool remove_child_object (sc_object *object_p)

phase_cb_mask register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask unregister_simulation_phase_callback (phase_cb_mask)

- Protected Attributes inherited from sc_core::sc_in< sc_dt::sc_logic >
sc_trace_params_vecm_traces

- Protected Attributes inherited from sc_core::sc_port_base
sc_bind_info * m_bind_info


Detailed Description

The sc_signal_resolved input port class.

Definition at line 42 of file sc_signal_resolved_ports.h.

Member Typedef Documentation

Definition at line 52 of file sc_signal_resolved_ports.h.

Definition at line 49 of file sc_signal_resolved_ports.h.

typedef base_type::in_if_type sc_core::sc_in_resolved::in_if_type

Definition at line 54 of file sc_signal_resolved_ports.h.

typedef base_type::in_port_type sc_core::sc_in_resolved::in_port_type

Definition at line 55 of file sc_signal_resolved_ports.h.

typedef base_type::inout_port_type sc_core::sc_in_resolved::inout_port_type

Definition at line 56 of file sc_signal_resolved_ports.h.

Definition at line 51 of file sc_signal_resolved_ports.h.

Constructor & Destructor Documentation

sc_core::sc_in_resolved::sc_in_resolved ( )
inline

Definition at line 62 of file sc_signal_resolved_ports.h.

sc_core::sc_in_resolved::sc_in_resolved ( const char *  name_)
inlineexplicit

Definition at line 66 of file sc_signal_resolved_ports.h.

sc_core::sc_in_resolved::sc_in_resolved ( const in_if_type interface_)
inlineexplicit

Definition at line 70 of file sc_signal_resolved_ports.h.

sc_core::sc_in_resolved::sc_in_resolved ( const char *  name_,
const in_if_type interface_
)
inline

Definition at line 74 of file sc_signal_resolved_ports.h.

sc_core::sc_in_resolved::sc_in_resolved ( in_port_type parent_)
inlineexplicit

Definition at line 78 of file sc_signal_resolved_ports.h.

sc_core::sc_in_resolved::sc_in_resolved ( const char *  name_,
in_port_type parent_
)
inline

Definition at line 82 of file sc_signal_resolved_ports.h.

sc_core::sc_in_resolved::sc_in_resolved ( inout_port_type parent_)
inlineexplicit

Definition at line 86 of file sc_signal_resolved_ports.h.

sc_core::sc_in_resolved::sc_in_resolved ( const char *  name_,
inout_port_type parent_
)
inline

Definition at line 90 of file sc_signal_resolved_ports.h.

sc_core::sc_in_resolved::sc_in_resolved ( this_type parent_)
inline

Definition at line 94 of file sc_signal_resolved_ports.h.

sc_core::sc_in_resolved::sc_in_resolved ( const char *  name_,
this_type parent_
)
inline

Definition at line 98 of file sc_signal_resolved_ports.h.

virtual sc_core::sc_in_resolved::~sc_in_resolved ( )
inlinevirtual

Definition at line 105 of file sc_signal_resolved_ports.h.

Member Function Documentation

virtual void sc_core::sc_in_resolved::end_of_elaboration ( )
virtual

Reimplemented from sc_core::sc_in< sc_dt::sc_logic >.

virtual const char* sc_core::sc_in_resolved::kind ( ) const
inlinevirtual

Reimplemented from sc_core::sc_in< sc_dt::sc_logic >.

Definition at line 115 of file sc_signal_resolved_ports.h.


The documentation for this class was generated from the following file:
