The clock channel. More...

#include <sysc/communication/sc_clock.h>

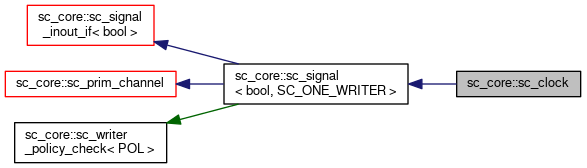

Inheritance diagram for sc_core::sc_clock:

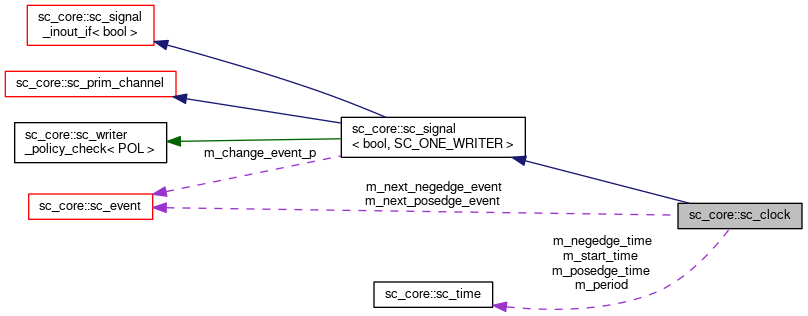

Collaboration diagram for sc_core::sc_clock:

Public Member Functions
	sc_clock ()

	sc_clock (const char *name_)

	sc_clock (const char *name_, const sc_time &period_, double duty_cycle_=0.5, const sc_time &start_time_=SC_ZERO_TIME, bool posedge_first_=true)

	sc_clock (const char *name_, double period_v_, sc_time_unit period_tu_, double duty_cycle_=0.5)

	sc_clock (const char *name_, double period_v_, sc_time_unit period_tu_, double duty_cycle_, double start_time_v_, sc_time_unit start_time_tu_, bool posedge_first_=true)

	sc_clock (const char *name_, double period_, double duty_cycle_=0.5, double start_time_=0.0, bool posedge_first_=true)

virtual	~sc_clock ()

virtual void	register_port (sc_port_base &, const char *if_type)

virtual void	write (const bool &)

const sc_time &	period () const

double	duty_cycle () const

bool	posedge_first () const

sc_time	start_time () const

virtual const char *	kind () const

Public Member Functions inherited from sc_core::sc_signal< bool, SC_ONE_WRITER >
	sc_signal ()

	sc_signal (const char *name_)

	sc_signal (const char *name_, const bool &initial_value_)

virtual	~sc_signal ()

virtual sc_writer_policy	get_writer_policy () const

virtual const sc_event &	default_event () const

virtual const sc_event &	value_changed_event () const

virtual const bool &	read () const

virtual const bool &	get_data_ref () const

virtual bool	event () const

	operator const bool & () const

this_type &	operator= (const bool &a)

this_type &	operator= (const sc_signal_in_if< bool > &a)

this_type &	operator= (const this_type &a)

const bool &	get_new_value () const

void	trace (sc_trace_file *tf) const

virtual void	print (::std::ostream &=::std::cout) const

virtual void	dump (::std::ostream &=::std::cout) const

Public Member Functions inherited from sc_core::sc_signal_in_if< bool >
virtual const sc_event &	posedge_event () const =0

virtual const sc_event &	negedge_event () const =0

virtual bool	posedge () const =0

virtual bool	negedge () const =0

Public Member Functions inherited from sc_core::sc_interface
virtual	~sc_interface ()

Public Member Functions inherited from sc_core::sc_signal_write_if< bool >
	sc_signal_write_if ()

Public Member Functions inherited from sc_core::sc_prim_channel
bool	update_requested ()

void	request_update ()

void	async_request_update ()

Public Member Functions inherited from sc_core::sc_object
const char *	name () const

const char *	basename () const

sc_simcontext *	simcontext () const

bool	add_attribute (sc_attr_base &)

sc_attr_base *	get_attribute (const std::string &name_)

const sc_attr_base *	get_attribute (const std::string &name_) const

sc_attr_base *	remove_attribute (const std::string &name_)

void	remove_all_attributes ()

int	num_attributes () const

sc_attr_cltn &	attr_cltn ()

const sc_attr_cltn &	attr_cltn () const

virtual const std::vector < sc_event * > &	get_child_events () const

virtual const std::vector < sc_object * > &	get_child_objects () const

sc_object *	get_parent () const

sc_object *	get_parent_object () const

Static Public Member Functions
static const sc_time &	time_stamp ()

Protected Member Functions
void	before_end_of_elaboration ()
	This function is not supported by the out-of-order simulation in the current release. More...

void	posedge_action ()

void	negedge_action ()

void	report_error (const char id, const char add_msg=0) const

void	init (const sc_time &, double, const sc_time &, bool)

bool	is_clock () const

Protected Member Functions inherited from sc_core::sc_signal< bool, SC_ONE_WRITER >
virtual void	update ()
	The update method (does nothing by default). More...

void	do_update ()

Protected Member Functions inherited from sc_core::sc_signal_inout_if< bool >
	sc_signal_inout_if ()

Protected Member Functions inherited from sc_core::sc_signal_in_if< bool >
	sc_signal_in_if ()

Protected Member Functions inherited from sc_core::sc_interface
	sc_interface ()

Protected Member Functions inherited from sc_core::sc_prim_channel
	sc_prim_channel ()

	sc_prim_channel (const char *)

virtual	~sc_prim_channel ()

virtual void	end_of_elaboration ()

virtual void	start_of_simulation ()

virtual void	end_of_simulation ()

void	wait (int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event &e, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event_or_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_event_and_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &t, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (double v, sc_time_unit tu, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &t, const sc_event &e, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (double v, sc_time_unit tu, const sc_event &e, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &t, const sc_event_or_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (double v, sc_time_unit tu, const sc_event_or_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (const sc_time &t, const sc_event_and_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (double v, sc_time_unit tu, const sc_event_and_list &el, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	wait (int n, int seg_id=-1)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger ()
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_event &e)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_event_or_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_event_and_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_time &t)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (double v, sc_time_unit tu)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_time &t, const sc_event &e)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (double v, sc_time_unit tu, const sc_event &e)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_time &t, const sc_event_or_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (double v, sc_time_unit tu, const sc_event_or_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (const sc_time &t, const sc_event_and_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

void	next_trigger (double v, sc_time_unit tu, const sc_event_and_list &el)
	A new parameter segment ID is added for the out-of-order simulation. More...

bool	timed_out ()

Protected Member Functions inherited from sc_core::sc_object
	sc_object ()

	sc_object (const char *nm)

	sc_object (const sc_object &)

sc_object &	operator= (const sc_object &)

virtual	~sc_object ()

virtual void	add_child_event (sc_event *event_p)

virtual void	add_child_object (sc_object *object_p)

virtual bool	remove_child_event (sc_event *event_p)

virtual bool	remove_child_object (sc_object *object_p)

phase_cb_mask	register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask	unregister_simulation_phase_callback (phase_cb_mask)

Protected Attributes
sc_time	m_period

double	m_duty_cycle

sc_time	m_start_time

bool	m_posedge_first

sc_time	m_posedge_time

sc_time	m_negedge_time

sc_event	m_next_posedge_event

sc_event	m_next_negedge_event

Protected Attributes inherited from sc_core::sc_signal< bool, SC_ONE_WRITER >
sc_event *	m_change_event_p

bool	m_cur_val

sc_dt::uint64	m_change_stamp

bool	m_new_val

Protected Attributes inherited from sc_core::sc_prim_channel
CHNL_MTX_TYPE_	m_mutex
	A mutex to protect concurrent communication. More...

Friends
class	sc_clock_posedge_callback

class	sc_clock_negedge_callback

Additional Inherited Members
Public Types inherited from sc_core::sc_prim_channel
enum	{ list_end = 0xdb }

Public Types inherited from sc_core::sc_object
typedef unsigned	phase_cb_mask

Protected Types inherited from sc_core::sc_signal< bool, SC_ONE_WRITER >
typedef sc_signal_inout_if< bool >	if_type

typedef sc_signal< bool, POL >	this_type

typedef sc_writer_policy_check < POL >	policy_type

Detailed Description

The clock channel.

Definition at line 43 of file sc_clock.h.

Constructor & Destructor Documentation

sc_core::sc_clock::sc_clock ( )

sc_core::sc_clock::sc_clock ( const char * name_ )

explicit

sc_core::sc_clock::sc_clock	(	const char *	name_,
		const sc_time &	period_,
		double	duty_cycle_ = `0.5`,
		const sc_time &	start_time_ = `SC_ZERO_TIME`,
		bool	posedge_first_ = `true`
	)

sc_core::sc_clock::sc_clock	(	const char *	name_,
		double	period_v_,
		sc_time_unit	period_tu_,
		double	duty_cycle_ = `0.5`
	)

sc_core::sc_clock::sc_clock	(	const char *	name_,
		double	period_v_,
		sc_time_unit	period_tu_,
		double	duty_cycle_,
		double	start_time_v_,
		sc_time_unit	start_time_tu_,
		bool	posedge_first_ = `true`
	)

sc_core::sc_clock::sc_clock	(	const char *	name_,
		double	period_,
		double	duty_cycle_ = `0.5`,
		double	start_time_ = `0.0`,
		bool	posedge_first_ = `true`
	)

virtual sc_core::sc_clock::~sc_clock ( )

virtual

Member Function Documentation

void sc_core::sc_clock::before_end_of_elaboration ( )

protectedvirtual

This function is not supported by the out-of-order simulation in the current release.

Reimplemented from sc_core::sc_prim_channel.

double sc_core::sc_clock::duty_cycle ( ) const

inline

Definition at line 95 of file sc_clock.h.

void sc_core::sc_clock::init	(	const sc_time &	,
		double	,
		const sc_time &	,
		bool
	)

protected

bool sc_core::sc_clock::is_clock ( ) const

inlineprotected

Definition at line 155 of file sc_clock.h.

virtual const char* sc_core::sc_clock::kind ( ) const

inlinevirtual

Reimplemented from sc_core::sc_signal< bool, SC_ONE_WRITER >.

Definition at line 109 of file sc_clock.h.

void sc_core::sc_clock::negedge_action ( )

inlineprotected

Definition at line 196 of file sc_clock.h.

const sc_time& sc_core::sc_clock::period ( ) const

inline

Definition at line 91 of file sc_clock.h.

void sc_core::sc_clock::posedge_action ( )

inlineprotected

Definition at line 183 of file sc_clock.h.

bool sc_core::sc_clock::posedge_first ( ) const

inline

Definition at line 101 of file sc_clock.h.

virtual void sc_core::sc_clock::register_port	(	sc_port_base &	,
		const char *	if_type
	)

virtual

Reimplemented from sc_core::sc_signal< bool, SC_ONE_WRITER >.

void sc_core::sc_clock::report_error	(	const char *	id,
		const char *	add_msg = `0`
	)		const

protected

sc_time sc_core::sc_clock::start_time ( ) const

inline

Definition at line 104 of file sc_clock.h.

static const sc_time& sc_core::sc_clock::time_stamp ( )

static

virtual void sc_core::sc_clock::write ( const bool & )

virtual

Reimplemented from sc_core::sc_signal< bool, SC_ONE_WRITER >.

Friends And Related Function Documentation

friend class sc_clock_negedge_callback

friend

Definition at line 50 of file sc_clock.h.

friend class sc_clock_posedge_callback

friend

Definition at line 49 of file sc_clock.h.

Member Data Documentation

double sc_core::sc_clock::m_duty_cycle

protected

Definition at line 160 of file sc_clock.h.

sc_time sc_core::sc_clock::m_negedge_time

protected

Definition at line 164 of file sc_clock.h.

sc_event sc_core::sc_clock::m_next_negedge_event

protected

Definition at line 167 of file sc_clock.h.

sc_event sc_core::sc_clock::m_next_posedge_event

protected

Definition at line 166 of file sc_clock.h.

sc_time sc_core::sc_clock::m_period

protected

Definition at line 159 of file sc_clock.h.

bool sc_core::sc_clock::m_posedge_first

protected

Definition at line 162 of file sc_clock.h.

sc_time sc_core::sc_clock::m_posedge_time

protected

Definition at line 163 of file sc_clock.h.

sc_time sc_core::sc_clock::m_start_time

protected

Definition at line 161 of file sc_clock.h.

The documentation for this class was generated from the following file:

sysc/communication/sc_clock.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
