sc_core::sc_event_queue Class Reference
A queue that can contain any number of pending delta, or timed events. More...
#include <sysc/communication/sc_event_queue.h>

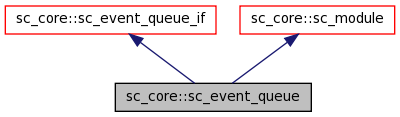

Inheritance diagram for sc_core::sc_event_queue:

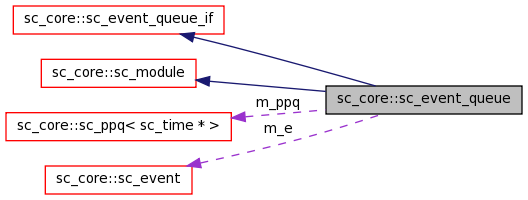

Collaboration diagram for sc_core::sc_event_queue:
Public Member Functions | |
| SC_HAS_PROCESS (sc_event_queue) | |
| sc_event_queue (sc_module_name name_=sc_gen_unique_name("event_queue")) | |
| This constructor function is not supported by the out-of-order simulation in the current release. | |
| ~sc_event_queue () | |
| virtual const char * | kind () const |
| virtual void | notify (double when, sc_time_unit base) |
| virtual void | notify (const sc_time &when) |
| virtual void | cancel_all () |
| virtual const sc_event & | default_event () const |
Detailed Description
A queue that can contain any number of pending delta, or timed events.
Definition at line 79 of file sc_event_queue.h.
Constructor & Destructor Documentation
| sc_core::sc_event_queue::sc_event_queue | ( | sc_module_name | name_ = sc_gen_unique_name("event_queue") |
) |
This constructor function is not supported by the out-of-order simulation in the current release.
| sc_core::sc_event_queue::~sc_event_queue | ( | ) |
Member Function Documentation
| virtual void sc_core::sc_event_queue::cancel_all | ( | ) | [virtual] |
Implements sc_core::sc_event_queue_if.
| const sc_event & sc_core::sc_event_queue::default_event | ( | ) | const [inline, virtual] |
Reimplemented from sc_core::sc_interface.
Definition at line 147 of file sc_event_queue.h.
| virtual const char* sc_core::sc_event_queue::kind | ( | ) | const [inline, virtual] |
Reimplemented from sc_core::sc_module.
Definition at line 97 of file sc_event_queue.h.
| virtual void sc_core::sc_event_queue::notify | ( | const sc_time & | when | ) | [virtual] |
Implements sc_core::sc_event_queue_if.
| void sc_core::sc_event_queue::notify | ( | double | when, | |
| sc_time_unit | base | |||
| ) | [inline, virtual] |
Implements sc_core::sc_event_queue_if.
Definition at line 141 of file sc_event_queue.h.
| sc_core::sc_event_queue::SC_HAS_PROCESS | ( | sc_event_queue | ) |
The documentation for this class was generated from the following file:
- sysc/communication/sc_event_queue.h
