#include <segment.h>

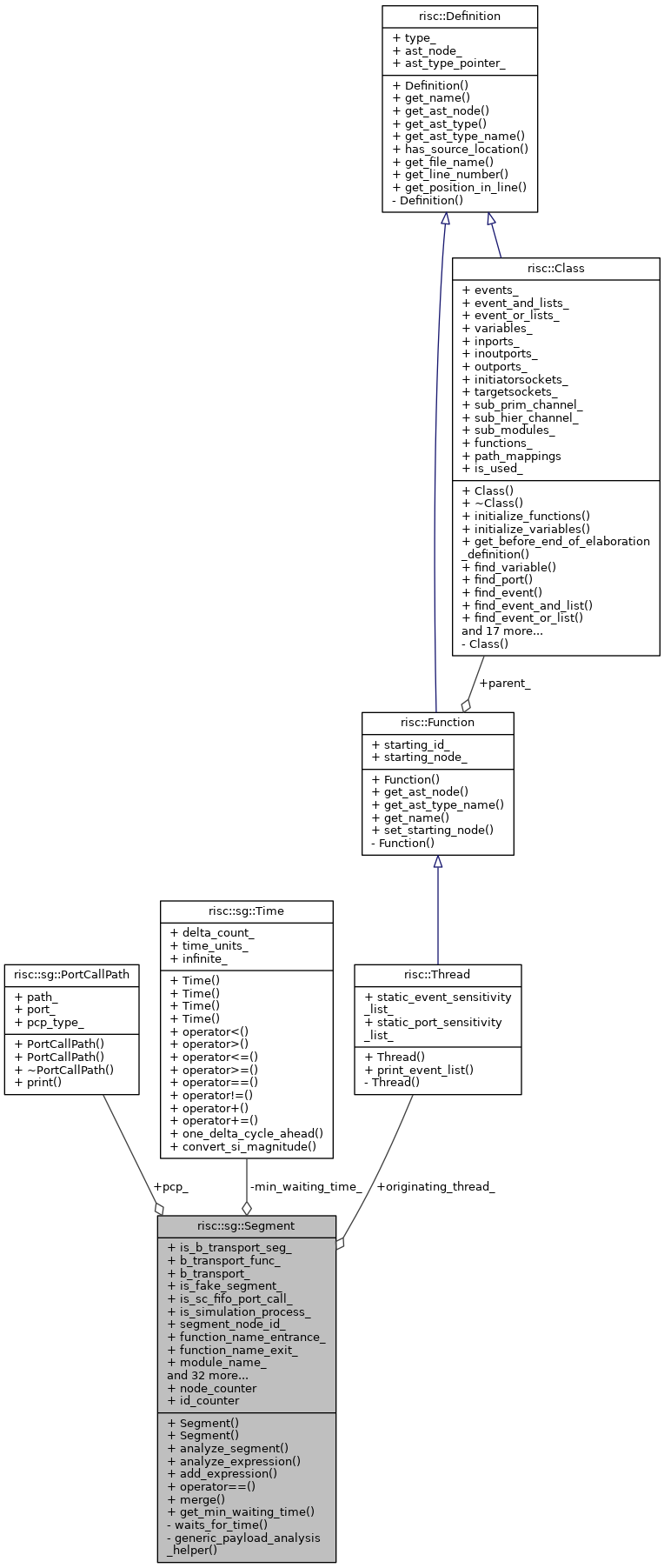

Collaboration diagram for risc::sg::Segment:

Public Types
enum	ERead { NonRead = 0, Read = 1 }

enum	EWrite { NonWrite = 0, Write = 1 }

enum	Status { Untouched = 0, Touched = 1 }

typedef std::list< NodeWithPath >	Expressions

Public Member Functions
	Segment (SgNode *boundary_node, bool inlined_segment, int psg_id=0, bool is_fake_segment_=false, bool is_simulation_process=false)
	Constructor for segment. More...

	Segment (const Segment &other)

void	analyze_segment ()
	This function determines which variable are read and written in this segment. More...

void	analyze_expression (SgNode *expression, ERead read, EWrite write, PortCallPath pcp)
	This function analyzes recursively all read and write accesses in this expression. More...

void	add_expression (NodeWithPath nwp)
	This function add the given node to the vector of expressions. More...

bool	operator== (const Segment &other)
	If two segments are equal the return value is true. More...

void	merge (const Segment &other)

Time	get_min_waiting_time ()
	This function determines the minimal waiting time for this segment. More...

Public Attributes
bool	is_b_transport_seg_
	TLM2 attribute marks if a segment is in a b_transport function. More...

SgFunctionDeclaration *	b_transport_func_
	TLM2 attribute the function that this segment belongs to. More...

SgFunctionCallExp *	b_transport_
	TLM2 attribute the b_transport call that this segment contains. More...

bool	is_fake_segment_
	PSG_NODE attribute marks if a node is fake, not a true segment node and will be merged. More...

bool	is_sc_fifo_port_call_
	PSG_NODE attribute marks if a node is port call for sc_fifo. if it is, then during instrumentation, we put the instrumented port id into the port call instead of in front of it. More...

bool	is_simulation_process_
	PSG_NODE attribute marks if a node is for a simulation process currently, it applies only to the first psg node, because ZC thinks it is sufficient. More...

int	segment_node_id_
	PSG_NODE attribute each segment node in a psg has a unique contiuous id it is used for instrumentation, and also calculating the wait_offset_ <psg_id_, segment_node_id_> pair matches a segment id in the complete segment graph. More...

std::string	function_name_entrance_
	PSG_NODE attribute the qualified name of function that this node is entrance to. More...

std::string	function_name_exit_
	PSG_NODE attribute the qualified name of function that this node is exit of. More...

std::string	module_name_
	PSG_NODE attribute the qualified name of module that this node belongs to it is not empty only if the function of the node is a simulation process. currently, it applies only to the first psg node, because ZC thinks it is sufficient. More...

std::string	non_defining_function_call_name_
	PSG_NODE attribute if the node is partial function call node, this attribute stores the qualified name of the non-defining function call. More...

std::string	pcp_port_name_
	PSG_NODE attribute if the node is partial function call node, and the non-defining function call in the node is a port call, this attributes stores the qualified name of the port. when psg is loaded, we can get the definition of the port, and reconstruct the pcp for the variables that are used to replace the node. More...

SgNode *	pcp_port_
	PSG_NODE attribute reconstructed when a partial function call node is loaded back, using the stored pcp_port_name_. when used, should be converted to sgVariableDefinition. More...

bool	is_entrance_to_channel_method_
	PSG_NODE attribute If a function is a channel method (implemented in sc_channel) Then is_entrance_to_channel_method_ is set to true for the first segment node of the function's psg. More...

SgFunctionCallExp *	port_call_func_exp_
	PSG_NODE attribute if this node is a partial function call node, and the non defining function call is a port call, port_call_func_exp is the func call expression. during instrumentation, we put set_upcoming_seg_id in front. More...

std::string	unique_port_call_name_
	PSG_NODE attribute the variable name of the channel segment array. After instrumentation, it looks like this: set_upcoming_seg_id(risc_tmp_"unique_port_call_name_"+wait_offset_) extern int risc_tmp_"unique_port_call_name_"[] stored in psg file, loaded back and reconstructed in partial func call nodes this makes the instrumented names in both port call file and top file same. More...

std::string	channel_seg_ids_array_name_
	PSG_NODE attribute After integration, we use this attribute to identify in which channel segment id array will the nodes's id be instrumented. More...

int	psg_id_
	PSG_NODE attribute id of the psg that this node belongs to. More...

int	node_id_
	PSG_NODE attribute id of node, continuous. More...

bool	is_redacted_
	PSG_NODE attribute if a node is removed in the psg file by the provider, when loaded back, we generate an empty node to represent the redacted node. when is_redacted_ is true, the node will not be removed from graph_ in remove_dangling_segments(). initially false. More...

boost::default_color_type	color

Status	color_for_communication_graph_

Status	helper_for_graph_algorithms_

Expressions	expressions_

bool	debugging_

bool	inlined_segment_
	if this segemnt should be merged into others More...

bool	is_channel_segment_
	if this segemnt belongs to a channel function More...

int	wait_offset_
	used in instrumentation More...

std::set< Conflict >	conflicts_
	the conflicts in this segment More...

PortCallPath	pcp_
	To identify segments which belong to segments. More...

int	id_
	This is the unique id of the segment. More...

SgNode *	boundary_node_
	This is the associated boundary of the segment. More...

Thread *	originating_thread_
	If known, this is the originating thread of the segment. If not known, this is NULL. If multiple threads reach here, this is -1. TODO: extend for all SystemC processes (RD, 07/11/18) More...

boost::default_color_type	color_
	This color is used for some boost algorithms. More...

std::set< SymbolWithPath >	read_variables_
	Set of all SgVariableSymbol which are read in this segment. More...

std::set< SymbolWithPath >	write_variables_
	Set of all SgVariableSymbol which are written in this segment. More...

std::set< SymbolWithPath >	wait_events_
	List of all gathered events this segment is waiting for TODO: this should be computed separately, not as side-effect of risc::sg::EventConflictTable::determine_conflict_table() (RD, 07/12/18) More...

std::set< SymbolWithPath >	notify_events_
	List of all gathered events this segment is notifying TODO: this should be computed separately, not as side-effect of risc::sg::EventConflictTable::determine_conflict_table() (RD, 07/12/18) More...

std::map< SgVariableSymbol *, Time >	events_notification_time_
	Show when events will be notified. More...

bool	calls_conflict_function_
	This segment calls a function with is marked as conflict. More...

bool	deref_pointer_read_
	If this segment has a pointer read. More...

bool	deref_pointer_write_
	If this segment has a pointer write. More...

bool	contains_sc_stop_
	If this segment has an sc_stop, then in conflict with every segment. More...

bool	waits_for_time_
	If this segment waits for time. More...

Static Public Attributes
static int	node_counter = 0
	PSG_NODE attribute a static counter that counts the current id of current node. More...

static int	id_counter = 0
	This static counter will be used to generate id's for the individual segments. More...

Private Member Functions
bool	waits_for_time ()
	This functions determines if a function waits for time The related flag waits_for_time_ will be set during construction. More...

void	generic_payload_analysis_helper (SgVariableSymbol *var_sym, bool is_write, PortCallPath pcp_of_var)
	This functions is an internal helper function It adds the mapped gp data to the read/write_variables. More...

Private Attributes
Time	min_waiting_time_

Friends
std::ostream &	operator<< (std::ostream &out, const Segment &segment)

Member Typedef Documentation

typedef std::list<NodeWithPath> risc::sg::Segment::Expressions

Member Enumeration Documentation

enum risc::sg::Segment::ERead

Enumerator
NonRead
Read

enum risc::sg::Segment::EWrite

Enumerator
NonWrite
Write

enum risc::sg::Segment::Status

Enumerator
Untouched
Touched

Constructor & Destructor Documentation

risc::sg::Segment::Segment	(	SgNode *	boundary_node,
		bool	inlined_segment,
		int	psg_id = `0`,
		bool	is_fake_segment_ = `false`,
		bool	is_simulation_process = `false`
	)

Constructor for segment.

risc::sg::Segment::Segment ( const Segment & other )

Member Function Documentation

risc::sg::Segment::add_expression ( NodeWithPath nwp )

This function add the given node to the vector of expressions.

risc::sg::Segment::analyze_expression	(	SgNode *	expression,
		ERead	read,
		EWrite	write,
		PortCallPath	pcp
	)

This function analyzes recursively all read and write accesses in this expression.

risc::sg::Segment::analyze_segment ( )

This function determines which variable are read and written in this segment.

risc::sg::Segment::generic_payload_analysis_helper	(	SgVariableSymbol *	var_sym,
		bool	is_write,
		PortCallPath	pcp_of_var
	)

private

This functions is an internal helper function It adds the mapped gp data to the read/write_variables.

risc::sg::Segment::get_min_waiting_time ( )

This function determines the minimal waiting time for this segment.

void risc::sg::Segment::merge ( const Segment & other )

risc::sg::Segment::operator== ( const Segment & other )

If two segments are equal the return value is true.

risc::sg::Segment::waits_for_time ( )

private

This functions determines if a function waits for time The related flag waits_for_time_ will be set during construction.

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	out,
		const Segment &	segment
	)

friend

Member Data Documentation

SgFunctionCallExp* risc::sg::Segment::b_transport_

TLM2 attribute the b_transport call that this segment contains.

SgFunctionDeclaration* risc::sg::Segment::b_transport_func_

TLM2 attribute the function that this segment belongs to.

SgNode* risc::sg::Segment::boundary_node_

This is the associated boundary of the segment.

bool risc::sg::Segment::calls_conflict_function_

This segment calls a function with is marked as conflict.

std::string risc::sg::Segment::channel_seg_ids_array_name_

PSG_NODE attribute After integration, we use this attribute to identify in which channel segment id array will the nodes's id be instrumented.

boost::default_color_type risc::sg::Segment::color

boost::default_color_type risc::sg::Segment::color_

This color is used for some boost algorithms.

Status risc::sg::Segment::color_for_communication_graph_

std::set<Conflict> risc::sg::Segment::conflicts_

the conflicts in this segment

bool risc::sg::Segment::contains_sc_stop_

If this segment has an sc_stop, then in conflict with every segment.

bool risc::sg::Segment::debugging_

bool risc::sg::Segment::deref_pointer_read_

If this segment has a pointer read.

bool risc::sg::Segment::deref_pointer_write_

If this segment has a pointer write.

std::map<SgVariableSymbol*, Time> risc::sg::Segment::events_notification_time_

Show when events will be notified.

Expressions risc::sg::Segment::expressions_

std::string risc::sg::Segment::function_name_entrance_

PSG_NODE attribute the qualified name of function that this node is entrance to.

std::string risc::sg::Segment::function_name_exit_

PSG_NODE attribute the qualified name of function that this node is exit of.

Status risc::sg::Segment::helper_for_graph_algorithms_

int risc::sg::Segment::id_

This is the unique id of the segment.

int risc::sg::Segment::id_counter = 0

static

This static counter will be used to generate id's for the individual segments.

bool risc::sg::Segment::inlined_segment_

if this segemnt should be merged into others

bool risc::sg::Segment::is_b_transport_seg_

TLM2 attribute marks if a segment is in a b_transport function.

bool risc::sg::Segment::is_channel_segment_

if this segemnt belongs to a channel function

bool risc::sg::Segment::is_entrance_to_channel_method_

PSG_NODE attribute If a function is a channel method (implemented in sc_channel) Then is_entrance_to_channel_method_ is set to true for the first segment node of the function's psg.

bool risc::sg::Segment::is_fake_segment_

PSG_NODE attribute marks if a node is fake, not a true segment node and will be merged.

bool risc::sg::Segment::is_redacted_

PSG_NODE attribute if a node is removed in the psg file by the provider, when loaded back, we generate an empty node to represent the redacted node. when is_redacted_ is true, the node will not be removed from graph_ in remove_dangling_segments(). initially false.

bool risc::sg::Segment::is_sc_fifo_port_call_

PSG_NODE attribute marks if a node is port call for sc_fifo. if it is, then during instrumentation, we put the instrumented port id into the port call instead of in front of it.

bool risc::sg::Segment::is_simulation_process_

PSG_NODE attribute marks if a node is for a simulation process currently, it applies only to the first psg node, because ZC thinks it is sufficient.

Time risc::sg::Segment::min_waiting_time_

private

std::string risc::sg::Segment::module_name_

PSG_NODE attribute the qualified name of module that this node belongs to it is not empty only if the function of the node is a simulation process. currently, it applies only to the first psg node, because ZC thinks it is sufficient.

int risc::sg::Segment::node_counter = 0

static

PSG_NODE attribute a static counter that counts the current id of current node.

int risc::sg::Segment::node_id_

PSG_NODE attribute id of node, continuous.

std::string risc::sg::Segment::non_defining_function_call_name_

PSG_NODE attribute if the node is partial function call node, this attribute stores the qualified name of the non-defining function call.

std::set<SymbolWithPath> risc::sg::Segment::notify_events_

List of all gathered events this segment is notifying TODO: this should be computed separately, not as side-effect of risc::sg::EventConflictTable::determine_conflict_table() (RD, 07/12/18)

Thread* risc::sg::Segment::originating_thread_

If known, this is the originating thread of the segment. If not known, this is NULL. If multiple threads reach here, this is -1. TODO: extend for all SystemC processes (RD, 07/11/18)

PortCallPath risc::sg::Segment::pcp_

To identify segments which belong to segments.

SgNode* risc::sg::Segment::pcp_port_

PSG_NODE attribute reconstructed when a partial function call node is loaded back, using the stored pcp_port_name_. when used, should be converted to sgVariableDefinition.

std::string risc::sg::Segment::pcp_port_name_

PSG_NODE attribute if the node is partial function call node, and the non-defining function call in the node is a port call, this attributes stores the qualified name of the port. when psg is loaded, we can get the definition of the port, and reconstruct the pcp for the variables that are used to replace the node.

SgFunctionCallExp* risc::sg::Segment::port_call_func_exp_

PSG_NODE attribute if this node is a partial function call node, and the non defining function call is a port call, port_call_func_exp is the func call expression. during instrumentation, we put set_upcoming_seg_id in front.

int risc::sg::Segment::psg_id_

PSG_NODE attribute id of the psg that this node belongs to.

std::set<SymbolWithPath> risc::sg::Segment::read_variables_

Set of all SgVariableSymbol which are read in this segment.

int risc::sg::Segment::segment_node_id_

PSG_NODE attribute each segment node in a psg has a unique contiuous id it is used for instrumentation, and also calculating the wait_offset_ <psg_id_, segment_node_id_> pair matches a segment id in the complete segment graph.

std::string risc::sg::Segment::unique_port_call_name_

PSG_NODE attribute the variable name of the channel segment array. After instrumentation, it looks like this: set_upcoming_seg_id(risc_tmp_"unique_port_call_name_"+wait_offset_) extern int risc_tmp_"unique_port_call_name_"[] stored in psg file, loaded back and reconstructed in partial func call nodes this makes the instrumented names in both port call file and top file same.

std::set<SymbolWithPath> risc::sg::Segment::wait_events_

List of all gathered events this segment is waiting for TODO: this should be computed separately, not as side-effect of risc::sg::EventConflictTable::determine_conflict_table() (RD, 07/12/18)

int risc::sg::Segment::wait_offset_

used in instrumentation

bool risc::sg::Segment::waits_for_time_

If this segment waits for time.

std::set<SymbolWithPath> risc::sg::Segment::write_variables_

Set of all SgVariableSymbol which are written in this segment.

The documentation for this class was generated from the following files:

/local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/segment_graph/segment.h
/local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/segment_graph/segment.cpp

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Private Member Functions

Private Attributes

Friends

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
