risc::InOutPort Class Reference

#include <inoutport.h>

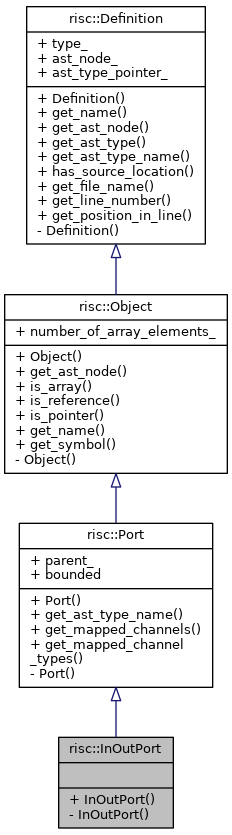

Inheritance diagram for risc::InOutPort:

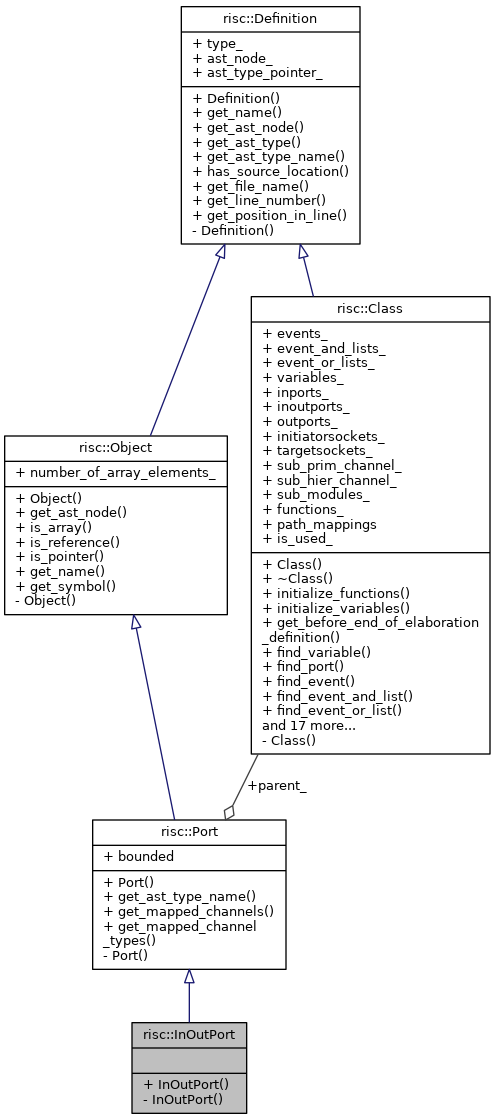

Collaboration diagram for risc::InOutPort:

Public Types
enum	Type {   CThreadType, ChannelType, ChannelInstanceType, ClassType,   DefinitionType, EventType, FunctionType, HierarchicalChannelType,   HierarchicalChannelInstanceType, InOutPortType, InPortType, InstanceType,   InterfaceType, MethodType, ModuleType, ModuleInstanceType,   ObjectType, OutPortType, PortType, PrimitiveChannelType,   PrimitiveChannelInstanceType, ThreadType, VariableType, SocketType,   InitiatorSocketType, TargetSocketType }
	We are using these enums to identify type type of and instance or definition during traversal. More...

Public Member Functions
	InOutPort (SgVariableDefinition *ast_node, Class *parent)
	default constructor More...
virtual std::string	get_ast_type_name ()
	Get function for the name of the ast type of the port. More...
void	get_mapped_channels (std::set< risc::Object * > &channels)
	This function determines all potential mapped channels to this port. More...
void	get_mapped_channel_types (std::set< risc::Class * > &channels)
	This function determines all potential mapped channels types to this port. More...
SgVariableDefinition *	get_ast_node ()
	Returns the ast definition of the object. More...
bool	is_array ()
	checks if this object is an array More...
bool	is_reference ()
	checks if this object is a reference More...
bool	is_pointer ()
	checks if this object is a pointer More...
virtual std::string	get_name ()
	Get function for the name of the module instance variable. More...
SgVariableSymbol *	get_symbol ()
	return the symbol of the object More...
virtual SgType *	get_ast_type ()
	Returns the type of the ast node. More...
bool	has_source_location ()
	Determines if a ast node has an associated ast node. More...
std::string	get_file_name ()
	Get the name of the file where the declaration is located. More...
int	get_line_number ()
	Get the line number of the instance. More...
int	get_position_in_line ()
	Get the position of the in declaration in the corresponding line In other words the column in the line. More...

Public Attributes
Class *	parent_
bool	bounded
unsigned int	number_of_array_elements_
Type	type_
SgNode *	ast_node_
SgType *	ast_type_pointer_

Private Member Functions
	InOutPort (const InOutPort &iop)
	Disabled copy constructor. More...

Member Enumeration Documentation

enum risc::Definition::Type

inherited

We are using these enums to identify type type of and instance or definition during traversal.

Enumerator
CThreadType
ChannelType
ChannelInstanceType
ClassType
DefinitionType
EventType
FunctionType
HierarchicalChannelType
HierarchicalChannelInstanceType
InOutPortType
InPortType
InstanceType
InterfaceType
MethodType
ModuleType
ModuleInstanceType
ObjectType
OutPortType
PortType
PrimitiveChannelType
PrimitiveChannelInstanceType
ThreadType
VariableType
SocketType
InitiatorSocketType
TargetSocketType

Constructor & Destructor Documentation

risc::InOutPort::InOutPort ( SgVariableDefinition *  ast_node, Class *  parent  )

explicit

default constructor

risc::InOutPort::InOutPort ( const InOutPort &  iop )

private

Disabled copy constructor.

Member Function Documentation

SgVariableDefinition * risc::Object::get_ast_node ( )

virtualinherited

Returns the ast definition of the object.

Returns

Pointer to the definition

Reimplemented from risc::Definition.

SgType * risc::Definition::get_ast_type ( )

virtualinherited

Returns the type of the ast node.

std::string risc::Port::get_ast_type_name ( )

virtualinherited

Get function for the name of the ast type of the port.

Returns

Name as std::string

Reimplemented from risc::Definition.

std::string risc::Definition::get_file_name ( )

inherited

Get the name of the file where the declaration is located.

Returns

filename

int risc::Definition::get_line_number ( )

inherited

Get the line number of the instance.

Returns

line number

risc::Port::get_mapped_channel_types ( std::set< risc::Class * > &  channels )

inherited

This function determines all potential mapped channels types to this port.

CAUTION: If you want to get the specific mapped channel, you have to use the path instance mapper.

risc::Port::get_mapped_channels ( std::set< risc::Object * > &  channels )

inherited

This function determines all potential mapped channels to this port.

CAUTION: If you want to get the specific mapped channel, you have to use the path instance mapper.

std::string risc::Object::get_name ( )

virtualinherited

Get function for the name of the module instance variable.

Returns

Name as std::string

Reimplemented from risc::Definition.

int risc::Definition::get_position_in_line ( )

inherited

Get the position of the in declaration in the corresponding line In other words the column in the line.

Returns

position in line

risc::Object::get_symbol ( )

inherited

return the symbol of the object

bool risc::Definition::has_source_location ( )

inherited

Determines if a ast node has an associated ast node.

bool risc::Object::is_array ( )

inherited

checks if this object is an array

bool risc::Object::is_pointer ( )

inherited

checks if this object is a pointer

bool risc::Object::is_reference ( )

inherited

checks if this object is a reference

Member Data Documentation

SgNode* risc::Definition::ast_node_

inherited

SgType* risc::Definition::ast_type_pointer_

inherited

bool risc::Port::bounded

inherited

unsigned int risc::Object::number_of_array_elements_

inherited

Class* risc::Port::parent_

inherited

Type risc::Definition::type_

inherited

---

The documentation for this class was generated from the following files:

• /local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/internal_representation/inoutport.h
• /local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/internal_representation/inoutport.cpp
