risc::Function Class Reference

#include <function.h>

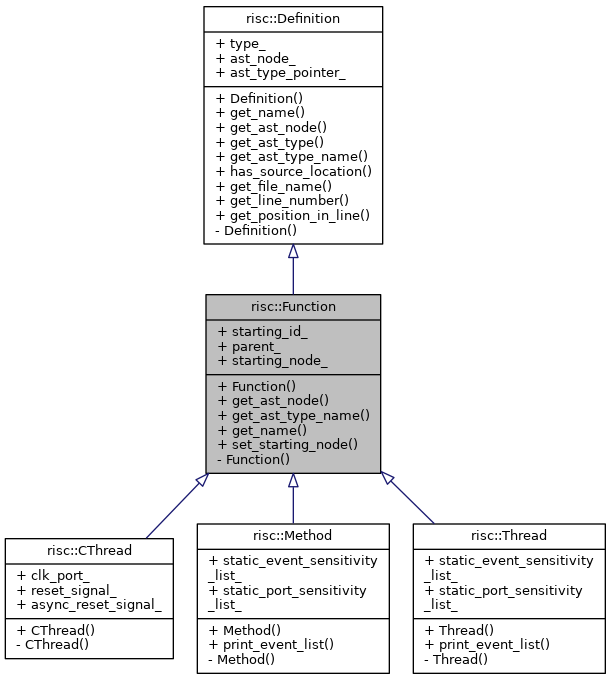

Inheritance diagram for risc::Function:

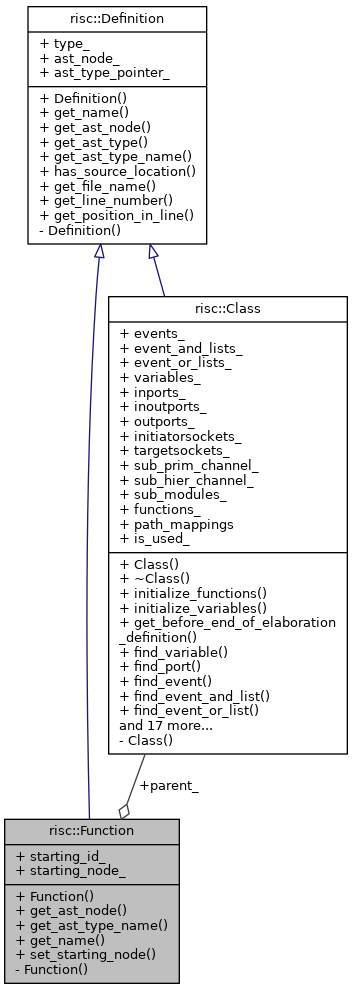

Collaboration diagram for risc::Function:

Public Types
enum	Type {   CThreadType, ChannelType, ChannelInstanceType, ClassType,   DefinitionType, EventType, FunctionType, HierarchicalChannelType,   HierarchicalChannelInstanceType, InOutPortType, InPortType, InstanceType,   InterfaceType, MethodType, ModuleType, ModuleInstanceType,   ObjectType, OutPortType, PortType, PrimitiveChannelType,   PrimitiveChannelInstanceType, ThreadType, VariableType, SocketType,   InitiatorSocketType, TargetSocketType }
	We are using these enums to identify type type of and instance or definition during traversal. More...

Public Member Functions
	Function (SgFunctionDefinition *ast_node, Type type=FunctionType, Class *parent=NULL)
	Default constructor. More...
SgFunctionDefinition *	get_ast_node ()
	Returns the ast definition of the function. More...
virtual std::string	get_ast_type_name ()
	Returns the name of the type of the ast node. More...
std::string	get_name ()
	returns the name of the function definition More...
void	set_starting_node (SgNode *)
	Sets the starting_node_. More...
virtual SgType *	get_ast_type ()
	Returns the type of the ast node. More...
bool	has_source_location ()
	Determines if a ast node has an associated ast node. More...
std::string	get_file_name ()
	Get the name of the file where the declaration is located. More...
int	get_line_number ()
	Get the line number of the instance. More...
int	get_position_in_line ()
	Get the position of the in declaration in the corresponding line In other words the column in the line. More...

Public Attributes
int	starting_id_
	After generating a segment graph for a thread, cthread, or method each function will have a starting segment. This variables stores the associated id of the segment. The starting id will be unequal to -1, if an associated segment exists. More...
Class *	parent_
	If this function belongs to a module/channel it has a link to its class definition. More...
SgNode *	starting_node_
	This variables stores the associated function call which starts a thread, cthread, or method. More...
Type	type_
SgNode *	ast_node_
SgType *	ast_type_pointer_

Private Member Functions
	Function (const Function &f)
	Disabled copy constructor. More...

Member Enumeration Documentation

enum risc::Definition::Type

inherited

We are using these enums to identify type type of and instance or definition during traversal.

Enumerator
CThreadType
ChannelType
ChannelInstanceType
ClassType
DefinitionType
EventType
FunctionType
HierarchicalChannelType
HierarchicalChannelInstanceType
InOutPortType
InPortType
InstanceType
InterfaceType
MethodType
ModuleType
ModuleInstanceType
ObjectType
OutPortType
PortType
PrimitiveChannelType
PrimitiveChannelInstanceType
ThreadType
VariableType
SocketType
InitiatorSocketType
TargetSocketType

Constructor & Destructor Documentation

risc::Function::Function	(	SgFunctionDefinition *	ast_node,
		Type	type = FunctionType,
		Class *	parent = NULL
	)

Default constructor.

risc::Function::Function ( const Function &  f )

private

Disabled copy constructor.

Member Function Documentation

SgFunctionDefinition * risc::Function::get_ast_node ( )

virtual

Returns the ast definition of the function.

Returns

Pointer to the definition

Reimplemented from risc::Definition.

SgType * risc::Definition::get_ast_type ( )

virtualinherited

Returns the type of the ast node.

std::string risc::Function::get_ast_type_name ( )

virtual

Returns the name of the type of the ast node.

Reimplemented from risc::Definition.

std::string risc::Definition::get_file_name ( )

inherited

Get the name of the file where the declaration is located.

Returns

filename

int risc::Definition::get_line_number ( )

inherited

Get the line number of the instance.

Returns

line number

std::string risc::Function::get_name ( )

virtual

returns the name of the function definition

Reimplemented from risc::Definition.

int risc::Definition::get_position_in_line ( )

inherited

Get the position of the in declaration in the corresponding line In other words the column in the line.

Returns

position in line

bool risc::Definition::has_source_location ( )

inherited

Determines if a ast node has an associated ast node.

void risc::Function::set_starting_node

(

SgNode *

starting_node

)

Sets the starting_node_.

Member Data Documentation

SgNode* risc::Definition::ast_node_

inherited

SgType* risc::Definition::ast_type_pointer_

inherited

Class* risc::Function::parent_

If this function belongs to a module/channel it has a link to its class definition.

int risc::Function::starting_id_

After generating a segment graph for a thread, cthread, or method each function will have a starting segment. This variables stores the associated id of the segment. The starting id will be unequal to -1, if an associated segment exists.

SgNode* risc::Function::starting_node_

This variables stores the associated function call which starts a thread, cthread, or method.

Type risc::Definition::type_

inherited

---

The documentation for this class was generated from the following files:

• /local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/internal_representation/function.h
• /local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/internal_representation/function.cpp
