#include "sysc/kernel/sc_kernel_ids.h"#include "sysc/kernel/sc_process.h"#include "sysc/kernel/sc_module_name.h"#include "sysc/kernel/sc_sensitive.h"#include "sysc/kernel/sc_time.h"#include "sysc/kernel/sc_wait.h"#include "sysc/kernel/sc_wait_cthread.h"#include "sysc/kernel/sc_process_handle.h"#include "sysc/utils/sc_list.h"

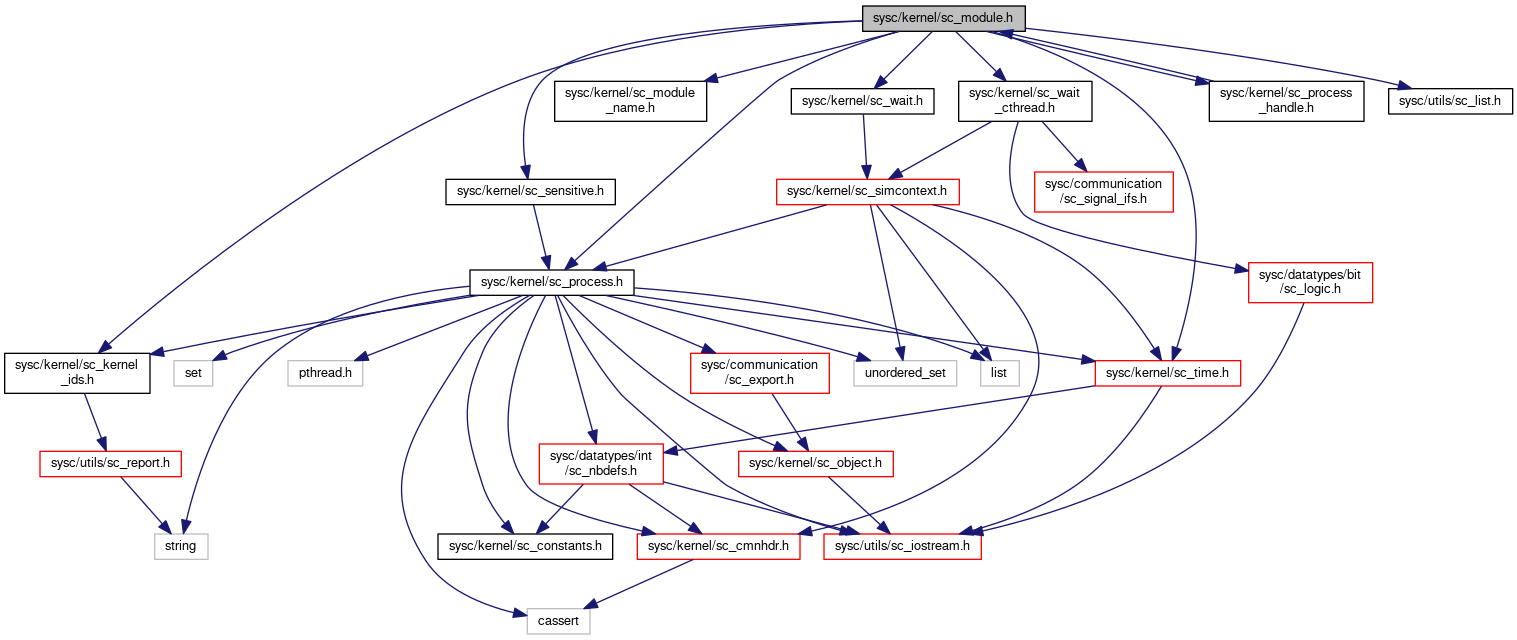

Include dependency graph for sc_module.h:

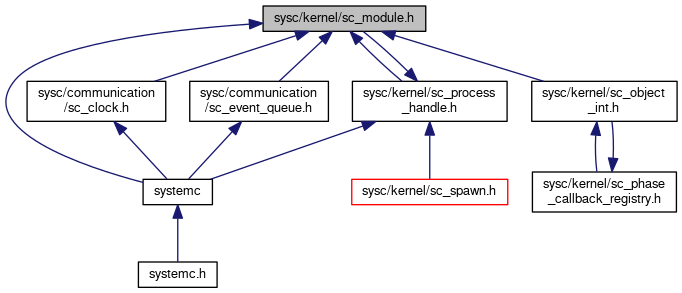

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | sc_core::sc_in< T > |
| class | sc_core::sc_inout< T > |
| class | sc_core::sc_out< T > |
| struct | sc_core::sc_bind_proxy |
| Struct for temporarily storing a pointer to an interface or port. More... | |
| class | sc_core::sc_module |
| Base class for all structural entities. More... | |
| class | sc_core::sc_channel |
| Base class for all hierarchical channels. More... | |
Namespaces | |
| sc_core | |
Macros | |
| #define | SC_NEW(x) ::sc_core::sc_module_dynalloc(new x); |
| #define | SC_MODULE(user_module_name) struct user_module_name : ::sc_core::sc_module |
| #define | SC_CHANNEL(user_module_name) struct user_module_name : ::sc_core::sc_channel |
| #define | SC_CTOR(user_module_name) |
| #define | SC_HAS_PROCESS(user_module_name) typedef user_module_name SC_CURRENT_USER_MODULE |
| #define | declare_method_process(handle, name, host_tag, func, seg_id, inst_id) |
| Two new parameters segment ID and instance ID are added for the out-of-order simulation. More... | |
| #define | declare_thread_process(handle, name, host_tag, func, seg_id, inst_id) |
| Two new parameters segment ID and instance ID are added for the out-of-order simulation. More... | |
| #define | declare_cthread_process(handle, name, host_tag, func, edge,seg_id, inst_id) |
| Two new parameters segment ID and instance ID are added for the out-of-order simulation. More... | |
| #define | SC_CTHREAD(func, edge, seg_id, inst_id) |
| Two new parameters segment ID and instance ID are added for the out-of-order simulation. More... | |
| #define | SC_METHOD(func, seg_id, inst_id) |
| Two new parameters segment ID and instance ID are added for the out-of-order simulation. More... | |
| #define | SC_THREAD(func, seg_id, inst_id) |
| Two new parameters segment ID and instance ID are added for the out-of-order simulation. More... | |
Typedefs | |
| typedef sc_module | sc_core::sc_behavior |
Functions | |
| sc_module * | sc_core::sc_module_dynalloc (sc_module *) |
Variables | |
| const sc_bind_proxy | sc_core::SC_BIND_PROXY_NIL |
Macro Definition Documentation
| #define declare_cthread_process | ( | handle, | |
| name, | |||
| host_tag, | |||
| func, | |||
| edge, | |||
| seg_id, | |||
| inst_id | |||
| ) |
Value:
{ \
::sc_core::sc_process_handle handle = \
name, false, \
SC_MAKE_FUNC_PTR( host_tag, func ), \
this, 0, seg_id, inst_id ); \
this->sensitive.operator() ( handle, edge ); \
}
This class provides access to an sc_process_b object instance in a manner which allows some persisten...
Definition: sc_process_handle.h:64
sc_process_handle create_cthread_process(const char *name_p, bool free_host, SC_ENTRY_FUNC method_p, sc_process_host *host_p, const sc_spawn_options *opt_p, int seg_id, int inst_id)
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
sc_simcontext * sc_get_curr_simcontext()
Definition: sc_simcontext.h:937
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Definition at line 641 of file sc_module.h.
| #define declare_method_process | ( | handle, | |
| name, | |||
| host_tag, | |||
| func, | |||
| seg_id, | |||
| inst_id | |||
| ) |
Value:
{ \
::sc_core::sc_process_handle handle = \
name, false, SC_MAKE_FUNC_PTR( host_tag, func ), \
this, 0, seg_id, inst_id ); \
this->sensitive << handle; \
this->sensitive_pos << handle; \
this->sensitive_neg << handle; \
}
This class provides access to an sc_process_b object instance in a manner which allows some persisten...
Definition: sc_process_handle.h:64
sc_simcontext * sc_get_curr_simcontext()
Definition: sc_simcontext.h:937
sc_process_handle create_method_process(const char *name_p, bool free_host, SC_ENTRY_FUNC method_p, sc_process_host *host_p, const sc_spawn_options *opt_p, int seg_id, int inst_id)
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Definition at line 606 of file sc_module.h.
| #define declare_thread_process | ( | handle, | |
| name, | |||
| host_tag, | |||
| func, | |||
| seg_id, | |||
| inst_id | |||
| ) |
Value:
{ \
::sc_core::sc_process_handle handle = \
name, false, \
SC_MAKE_FUNC_PTR( host_tag, func ), \
this, 0, seg_id, inst_id ); \
this->sensitive << handle; \
this->sensitive_pos << handle; \
this->sensitive_neg << handle; \
}
This class provides access to an sc_process_b object instance in a manner which allows some persisten...
Definition: sc_process_handle.h:64
sc_simcontext * sc_get_curr_simcontext()
Definition: sc_simcontext.h:937
sc_process_handle create_thread_process(const char *name_p, bool free_host, SC_ENTRY_FUNC method_p, sc_process_host *host_p, const sc_spawn_options *opt_p, int seg_id, int inst_id)
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Definition at line 623 of file sc_module.h.
| #define SC_CHANNEL | ( | user_module_name | ) | struct user_module_name : ::sc_core::sc_channel |
Definition at line 580 of file sc_module.h.
| #define SC_CTHREAD | ( | func, | |
| edge, | |||
| seg_id, | |||
| inst_id | |||
| ) |
Value:
declare_cthread_process( func ## _handle, \
#func, \
SC_CURRENT_USER_MODULE, \
func, \
edge, \
seg_id, \
inst_id )
#define declare_cthread_process(handle, name, host_tag, func, edge,seg_id, inst_id)
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Definition: sc_module.h:641
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Definition at line 658 of file sc_module.h.
| #define SC_CTOR | ( | user_module_name | ) |
Value:
typedef user_module_name SC_CURRENT_USER_MODULE; \
user_module_name( ::sc_core::sc_module_name )
Definition at line 583 of file sc_module.h.
| #define SC_HAS_PROCESS | ( | user_module_name | ) | typedef user_module_name SC_CURRENT_USER_MODULE |
Definition at line 588 of file sc_module.h.
| #define SC_METHOD | ( | func, | |
| seg_id, | |||
| inst_id | |||
| ) |
Value:
declare_method_process( func ## _handle, \
#func, \
SC_CURRENT_USER_MODULE, \
func, \
seg_id, \
inst_id )
#define declare_method_process(handle, name, host_tag, func, seg_id, inst_id)
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Definition: sc_module.h:606
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Definition at line 673 of file sc_module.h.
| #define SC_MODULE | ( | user_module_name | ) | struct user_module_name : ::sc_core::sc_module |
Definition at line 576 of file sc_module.h.
| #define SC_NEW | ( | x | ) | ::sc_core::sc_module_dynalloc(new x); |
Definition at line 569 of file sc_module.h.
| #define SC_THREAD | ( | func, | |
| seg_id, | |||
| inst_id | |||
| ) |
Value:
declare_thread_process( func ## _handle, \
#func, \
SC_CURRENT_USER_MODULE, \
func, \
seg_id, \
inst_id )
#define declare_thread_process(handle, name, host_tag, func, seg_id, inst_id)
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Definition: sc_module.h:623
Two new parameters segment ID and instance ID are added for the out-of-order simulation.
Definition at line 687 of file sc_module.h.
