risc::sg::DataConflictTable Class Reference

This class represents the data conflict table among the individual segments. Two segments have a conflict if a least one variable is by the first segment and read by the second segment. A two dimensional array represents this array. More...

#include <data_conflict_table.h>

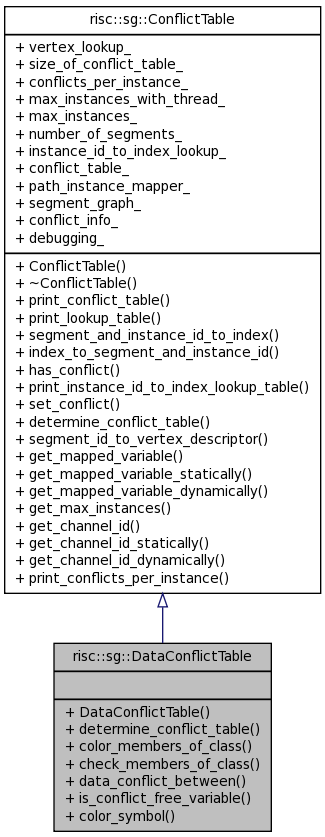

Inheritance diagram for risc::sg::DataConflictTable:

[legend]

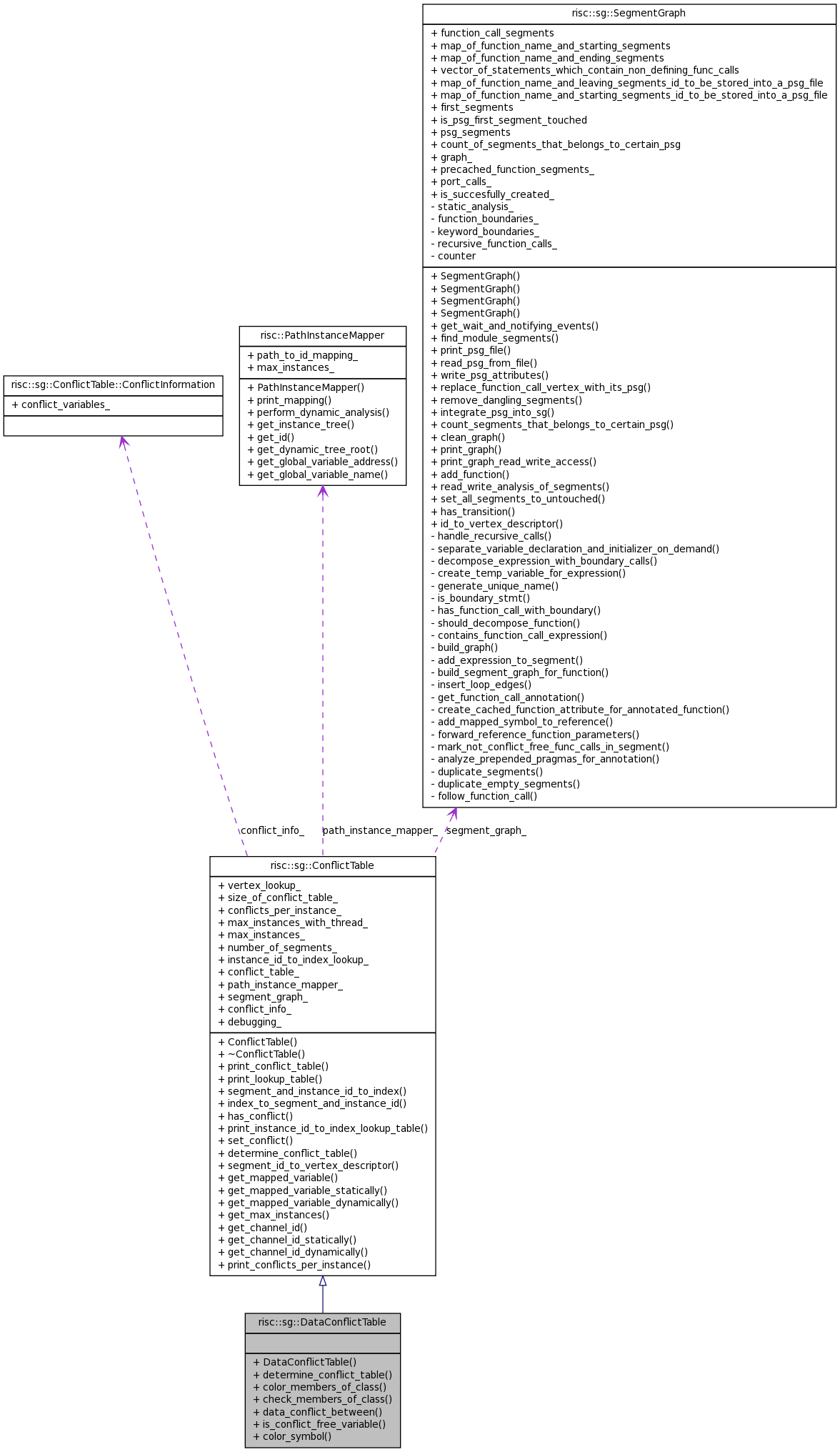

Collaboration diagram for risc::sg::DataConflictTable:

[legend]

List of all members.

Public Member Functions
	DataConflictTable (SegmentGraph &graph, PathInstanceMapper *path_instance_mapper, bool debugging)
	Default constructor for the DataConflictTable.
virtual void	determine_conflict_table ()
	This function determines conflicts among the segments.
void	color_members_of_class (const MappedVariable &variable, DataConflictAstAttributes::Status color)
bool	check_members_of_class (const MappedVariable &mapped_variable, DataConflictAstAttributes::Status color, std::set< Conflict > &conflicts)
bool	data_conflict_between (Segment &first_seg, Segment &second_seg, int row, int column, int inst_id_first, int inst_id_second, bool dynamic_analysis)
bool	is_conflict_free_variable (SgVariableSymbol *symbol)
void	color_symbol (const MappedVariable &variable, DataConflictAstAttributes::Status color)
void	print_conflict_table (std::string filename)
void	print_lookup_table (std::string filename)
int	segment_and_instance_id_to_index (int segment_id, int instance_id)
std::pair< int, int >	index_to_segment_and_instance_id (int index)
bool	has_conflict (int segment_id_1, int instance_id_1, int segment_id_2, int instance_id_2)
void	print_instance_id_to_index_lookup_table ()
	This function prints the table instance_id_to_index_lookup_table in the terminal.
void	set_conflict (int segment_id_1, int instance_id_1, int segment_id_2, int instance_id_2)
VertexDescriptor	segment_id_to_vertex_descriptor (int id)
MappedVariableList	get_mapped_variable (SgVariableSymbol *variable, int instance_id, bool dynamic_analysis)
MappedVariableList	get_mapped_variable_statically (SgVariableSymbol *variable, int instance_id)
MappedVariableList	get_mapped_variable_dynamically (SgVariableSymbol *variable, int instance_id)
int	get_max_instances (int segment_id)
int	get_channel_id (const SymbolWithPath &swp, int instance, bool dynamic_analysis)
int	get_channel_id_statically (const SymbolWithPath &swp, int instance)
int	get_channel_id_dynamically (const SymbolWithPath &swp, int instance)
void	print_conflicts_per_instance ()
	prints the conflicts per instance
Public Attributes
VertexDescriptor *	vertex_lookup_
	This lookup table translates segment ids into vertex descriptors. At position i is the segment with the id of instance_id_to_index_lookup_[0][i].
int	size_of_conflict_table_
	This variable defines the size of the conflict table. The size is quadratic.
int *	conflicts_per_instance_
	Stores the conflicts per intance.
int	max_instances_with_thread_
	Maximum number of module/channel instances Only instances with at least one simulation thread are considered.
int	max_instances_
	This variable represents the max number of module instances in the design. Also, this is the number of rows in the instance_id_to_index_lookup_ table.
int	number_of_segments_
	This variable defines how many segments exist in the segment graph. Also, this is the number of columns in the instance_id_to_index_lookup_ table.
int **	instance_id_to_index_lookup_
	This table should be used a lookup table: (segment id, instance id) -> index of conflict table.
bool **	conflict_table_
	The conflict table.
PathInstanceMapper *	path_instance_mapper_
SegmentGraph &	segment_graph_
ConflictInformation **	conflict_info_
bool	debugging_

---

Detailed Description

This class represents the data conflict table among the individual segments. Two segments have a conflict if a least one variable is by the first segment and read by the second segment. A two dimensional array represents this array.

---

Constructor & Destructor Documentation

risc::sg::DataConflictTable::DataConflictTable	(	SegmentGraph &	graph,
		PathInstanceMapper *	path_instance_mapper,
		bool	debugging
	)

Default constructor for the DataConflictTable.

---

Member Function Documentation

bool risc::sg::DataConflictTable::check_members_of_class	(	const MappedVariable &	mapped_variable,
		DataConflictAstAttributes::Status	color,
		std::set< Conflict > &	conflicts
	)

void risc::sg::DataConflictTable::color_members_of_class	(	const MappedVariable &	variable,
		DataConflictAstAttributes::Status	color
	)

void risc::sg::DataConflictTable::color_symbol	(	const MappedVariable &	variable,
		DataConflictAstAttributes::Status	color
	)

bool risc::sg::DataConflictTable::data_conflict_between	(	Segment &	first_seg,
		Segment &	second_seg,
		int	row,
		int	column,
		int	inst_id_first,
		int	inst_id_second,
		bool	dynamic_analysis
	)

risc::sg::DataConflictTable::determine_conflict_table

(

)

[virtual]

This function determines conflicts among the segments.

Reimplemented from risc::sg::ConflictTable.

int risc::sg::ConflictTable::get_channel_id	(	const SymbolWithPath &	swp,
		int	instance,
		bool	dynamic_analysis
	)			[inherited]

int risc::sg::ConflictTable::get_channel_id_dynamically	(	const SymbolWithPath &	swp,
		int	instance
	)			[inherited]

int risc::sg::ConflictTable::get_channel_id_statically	(	const SymbolWithPath &	swp,
		int	instance
	)			[inherited]

risc::sg::MappedVariableList risc::sg::ConflictTable::get_mapped_variable	(	SgVariableSymbol *	variable,
		int	instance_id,
		bool	dynamic_analysis
	)			[inherited]

risc::sg::MappedVariableList risc::sg::ConflictTable::get_mapped_variable_dynamically	(	SgVariableSymbol *	variable,
		int	instance_id
	)			[inherited]

risc::sg::MappedVariableList risc::sg::ConflictTable::get_mapped_variable_statically	(	SgVariableSymbol *	variable,
		int	instance_id
	)			[inherited]

int risc::sg::ConflictTable::get_max_instances

(

int

segment_id

)

[inherited]

bool risc::sg::ConflictTable::has_conflict	(	int	segment_id_1,
		int	instance_id_1,
		int	segment_id_2,
		int	instance_id_2
	)			[inherited]

std::pair< int, int > risc::sg::ConflictTable::index_to_segment_and_instance_id

(

int

index

)

[inherited]

bool risc::sg::DataConflictTable::is_conflict_free_variable

(

SgVariableSymbol *

symbol

)

void risc::sg::ConflictTable::print_conflict_table

(

std::string

filename

)

[inherited]

risc::sg::ConflictTable::print_conflicts_per_instance

(

)

[inherited]

prints the conflicts per instance

risc::sg::ConflictTable::print_instance_id_to_index_lookup_table

(

)

[inherited]

This function prints the table instance_id_to_index_lookup_table in the terminal.

void risc::sg::ConflictTable::print_lookup_table

(

std::string

filename

)

[inherited]

int risc::sg::ConflictTable::segment_and_instance_id_to_index	(	int	segment_id,
		int	instance_id
	)			[inherited]

risc::sg::VertexDescriptor risc::sg::ConflictTable::segment_id_to_vertex_descriptor

(

int

id

)

[inherited]

void risc::sg::ConflictTable::set_conflict	(	int	segment_id_1,
		int	instance_id_1,
		int	segment_id_2,
		int	instance_id_2
	)			[inherited]

---

Member Data Documentation

ConflictInformation** risc::sg::ConflictTable::conflict_info_ [inherited]

bool** risc::sg::ConflictTable::conflict_table_ [inherited]

The conflict table.

int* risc::sg::ConflictTable::conflicts_per_instance_ [inherited]

Stores the conflicts per intance.

bool risc::sg::ConflictTable::debugging_ [inherited]

int** risc::sg::ConflictTable::instance_id_to_index_lookup_ [inherited]

This table should be used a lookup table: (segment id, instance id) -> index of conflict table.

int risc::sg::ConflictTable::max_instances_ [inherited]

This variable represents the max number of module instances in the design. Also, this is the number of rows in the instance_id_to_index_lookup_ table.

int risc::sg::ConflictTable::max_instances_with_thread_ [inherited]

Maximum number of module/channel instances Only instances with at least one simulation thread are considered.

int risc::sg::ConflictTable::number_of_segments_ [inherited]

This variable defines how many segments exist in the segment graph. Also, this is the number of columns in the instance_id_to_index_lookup_ table.

PathInstanceMapper* risc::sg::ConflictTable::path_instance_mapper_ [inherited]

SegmentGraph& risc::sg::ConflictTable::segment_graph_ [inherited]

int risc::sg::ConflictTable::size_of_conflict_table_ [inherited]

This variable defines the size of the conflict table. The size is quadratic.

VertexDescriptor* risc::sg::ConflictTable::vertex_lookup_ [inherited]

This lookup table translates segment ids into vertex descriptors. At position i is the segment with the id of instance_id_to_index_lookup_[0][i].

---

The documentation for this class was generated from the following files:

• /local/lecs/lecs/risc_v0.4.2/sources/build/risc_v0.4.2/src/segment_graph/data_conflict_table.h
• /local/lecs/lecs/risc_v0.4.2/sources/build/risc_v0.4.2/src/segment_graph/data_conflict_table.cpp
