sc_core::vcd_trace_file Class Reference

#include <sysc/tracing/sc_vcd_trace.h>

Inheritance diagram for sc_core::vcd_trace_file:
Inheritance graph
[legend]

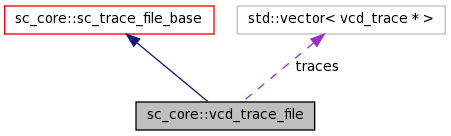

Collaboration diagram for sc_core::vcd_trace_file:
Collaboration graph
[legend]

List of all members.

Public Types

enum  vcd_enum { VCD_WIRE = 0, VCD_REAL = 1, VCD_LAST }

Public Member Functions

 vcd_trace_file (const char *name)
 ~vcd_trace_file ()
std::string obtain_name ()

Public Attributes

std::vector< vcd_trace * > traces

Protected Member Functions

void trace (const bool &object, const std::string &name)
virtual void trace (const sc_dt::sc_bit &object, const std::string &name)
void trace (const sc_dt::sc_logic &object, const std::string &name)
void trace (const unsigned char &object, const std::string &name, int width)
void trace (const unsigned short &object, const std::string &name, int width)
void trace (const unsigned int &object, const std::string &name, int width)
void trace (const unsigned long &object, const std::string &name, int width)
void trace (const char &object, const std::string &name, int width)
void trace (const short &object, const std::string &name, int width)
void trace (const int &object, const std::string &name, int width)
void trace (const long &object, const std::string &name, int width)
void trace (const sc_dt::int64 &object, const std::string &name, int width)
void trace (const sc_dt::uint64 &object, const std::string &name, int width)
void trace (const float &object, const std::string &name)
void trace (const double &object, const std::string &name)
void trace (const sc_dt::sc_uint_base &object, const std::string &name)
void trace (const sc_dt::sc_int_base &object, const std::string &name)
void trace (const sc_dt::sc_unsigned &object, const std::string &name)
void trace (const sc_dt::sc_signed &object, const std::string &name)
void trace (const sc_dt::sc_fxval &object, const std::string &name)
void trace (const sc_dt::sc_fxval_fast &object, const std::string &name)
void trace (const sc_dt::sc_fxnum &object, const std::string &name)
void trace (const sc_dt::sc_fxnum_fast &object, const std::string &name)
template<class T >
void traceT (const T &object, const std::string &name, vcd_enum type=VCD_WIRE)
virtual void trace (const sc_dt::sc_bv_base &object, const std::string &name)
virtual void trace (const sc_dt::sc_lv_base &object, const std::string &name)
void trace (const unsigned &object, const std::string &name, const char **enum_literals)
void write_comment (const std::string &comment)
void cycle (bool delta_cycle)

Detailed Description

Definition at line 64 of file sc_vcd_trace.h.


Member Enumeration Documentation

Enumerator:
VCD_WIRE
VCD_REAL
VCD_LAST

Definition at line 69 of file sc_vcd_trace.h.


Constructor & Destructor Documentation

sc_core::vcd_trace_file::vcd_trace_file ( const char *  name  )
sc_core::vcd_trace_file::~vcd_trace_file (  )

Member Function Documentation

void sc_core::vcd_trace_file::cycle ( bool  delta_cycle  )  [protected, virtual]
std::string sc_core::vcd_trace_file::obtain_name (  )
void sc_core::vcd_trace_file::trace ( const unsigned &  object,
const std::string &  name,
const char **  enum_literals
) [protected]
virtual void sc_core::vcd_trace_file::trace ( const sc_dt::sc_lv_base object,
const std::string &  name
) [protected, virtual]
virtual void sc_core::vcd_trace_file::trace ( const sc_dt::sc_bv_base object,
const std::string &  name
) [protected, virtual]
void sc_core::vcd_trace_file::trace ( const sc_dt::sc_fxnum_fast object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::sc_fxnum object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::sc_fxval_fast object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::sc_fxval object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::sc_signed object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::sc_unsigned object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::sc_int_base object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::sc_uint_base object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const double &  object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const float &  object,
const std::string &  name
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::uint64 object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::int64 object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const long &  object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const int &  object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const short object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const char &  object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const unsigned long &  object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const unsigned int &  object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const unsigned short object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const unsigned char &  object,
const std::string &  name,
int  width
) [protected]
void sc_core::vcd_trace_file::trace ( const sc_dt::sc_logic object,
const std::string &  name
) [protected]
virtual void sc_core::vcd_trace_file::trace ( const sc_dt::sc_bit object,
const std::string &  name
) [protected, virtual]
void sc_core::vcd_trace_file::trace ( const bool &  object,
const std::string &  name
) [protected]
template<class T >
void sc_core::vcd_trace_file::traceT ( const T &  object,
const std::string &  name,
vcd_enum  type = VCD_WIRE
) [inline, protected]

Definition at line 171 of file sc_vcd_trace.h.

void sc_core::vcd_trace_file::write_comment ( const std::string &  comment  )  [protected, virtual]

Member Data Documentation

std::vector<vcd_trace*> sc_core::vcd_trace_file::traces

Definition at line 216 of file sc_vcd_trace.h.


The documentation for this class was generated from the following file:
