risc::DynamicPathInstanceMapper Class Reference

#include <dynamic_path_instance_mapper.h>

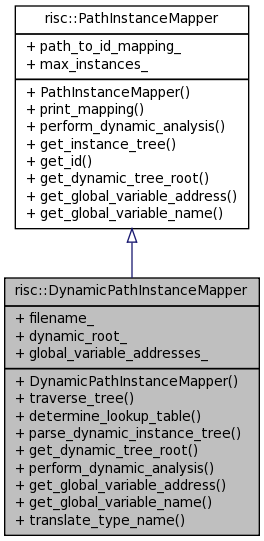

Inheritance diagram for risc::DynamicPathInstanceMapper:

[legend]

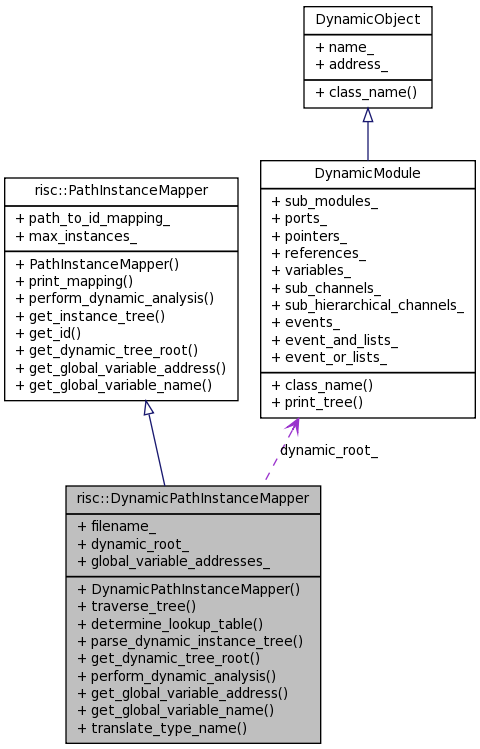

Collaboration diagram for risc::DynamicPathInstanceMapper:

[legend]

List of all members.

Public Types
typedef std::pair < InstanceTree, int >	PathWithID
Public Member Functions
	DynamicPathInstanceMapper (std::string filename)
void	traverse_tree (InstanceTree root, DynamicModule *module)
void	determine_lookup_table ()
	This function traverses the design and pushes all modules and hierarchical channel instances into the path_to_id_mapping_ lookup table. The traversing is dependent on the declaration order of the member variables. Also, it follows depth first search. CAUTION: The function Design::reset_instance_counter() must be used first! Otherwise wrong intance id's a generated!
void	parse_dynamic_instance_tree ()
	This functions parses the dynamic analysis file into a tree representation.
virtual DynamicModule *	get_dynamic_tree_root ()
	This function returns the root node of the dynamic analysis CAUTION: This function is only for the DynamicPathInstanceMapper.
virtual bool	perform_dynamic_analysis ()
	This functions returns true if the path instance mapper should perform a dynamic analysis.
virtual int *	get_global_variable_address (std::string variable_name)
virtual std::string	get_global_variable_name (int *variable_address)
std::string	translate_type_name (std::string gnu_type_name)
void	print_mapping ()
	The function prints the lookup table in the terminal.
virtual InstanceTree	get_instance_tree (int id, std::list< InstanceTree > potential_instances)
virtual int	get_id (InstanceTree tree)
Public Attributes
std::string	filename_
	This is the input file for the dynamic analysis.
DynamicModule *	dynamic_root_
	This variables stores the root node of the dynamic analysis.
std::list< std::pair < std::string, int * > >	global_variable_addresses_
	This list stores the global variables of the dynamic analysis.
std::vector< PathWithID >	path_to_id_mapping_
	This is the lookup table from path to instance id.
int	max_instances_
	This variable counts what is the max of instances.

---

Member Typedef Documentation

typedef std::pair<InstanceTree, int> risc::PathInstanceMapper::PathWithID [inherited]

---

Constructor & Destructor Documentation

risc::DynamicPathInstanceMapper::DynamicPathInstanceMapper

(

std::string

filename

)

---

Member Function Documentation

risc::DynamicPathInstanceMapper::determine_lookup_table

(

)

This function traverses the design and pushes all modules and hierarchical channel instances into the path_to_id_mapping_ lookup table. The traversing is dependent on the declaration order of the member variables. Also, it follows depth first search. CAUTION: The function Design::reset_instance_counter() must be used first! Otherwise wrong intance id's a generated!

DynamicModule * risc::DynamicPathInstanceMapper::get_dynamic_tree_root

(

)

[virtual]

This function returns the root node of the dynamic analysis CAUTION: This function is only for the DynamicPathInstanceMapper.

Reimplemented from risc::PathInstanceMapper.

int * risc::DynamicPathInstanceMapper::get_global_variable_address

(

std::string

variable_name

)

[virtual]

Reimplemented from risc::PathInstanceMapper.

std::string risc::DynamicPathInstanceMapper::get_global_variable_name

(

int *

variable_address

)

[virtual]

Reimplemented from risc::PathInstanceMapper.

int risc::PathInstanceMapper::get_id

(

InstanceTree

tree

)

[virtual, inherited]

Reimplemented in risc::StaticPathInstanceMapper.

risc::InstanceTree risc::PathInstanceMapper::get_instance_tree	(	int	id,
		std::list< InstanceTree >	potential_instances
	)			[virtual, inherited]

Reimplemented in risc::StaticPathInstanceMapper.

void risc::DynamicPathInstanceMapper::parse_dynamic_instance_tree

(

)

This functions parses the dynamic analysis file into a tree representation.

risc::DynamicPathInstanceMapper::perform_dynamic_analysis

(

)

[virtual]

This functions returns true if the path instance mapper should perform a dynamic analysis.

Implements risc::PathInstanceMapper.

risc::PathInstanceMapper::print_mapping

(

)

[inherited]

The function prints the lookup table in the terminal.

std::string risc::DynamicPathInstanceMapper::translate_type_name

(

std::string

gnu_type_name

)

void risc::DynamicPathInstanceMapper::traverse_tree	(	InstanceTree	root,
		DynamicModule *	module
	)

---

Member Data Documentation

DynamicModule* risc::DynamicPathInstanceMapper::dynamic_root_

This variables stores the root node of the dynamic analysis.

std::string risc::DynamicPathInstanceMapper::filename_

This is the input file for the dynamic analysis.

std::list<std::pair<std::string, int*> > risc::DynamicPathInstanceMapper::global_variable_addresses_

This list stores the global variables of the dynamic analysis.

int risc::PathInstanceMapper::max_instances_ [inherited]

This variable counts what is the max of instances.

std::vector<PathWithID> risc::PathInstanceMapper::path_to_id_mapping_ [inherited]

This is the lookup table from path to instance id.

---

The documentation for this class was generated from the following files:

• /local/lecs/lecs/risc_v0.4.0/sources/build/risc_v0.4.0/src/internal_representation/dynamic_path_instance_mapper.h
• /local/lecs/lecs/risc_v0.4.0/sources/build/risc_v0.4.0/src/internal_representation/dynamic_path_instance_mapper.cpp
