sc_dt::sc_fxnum Class Reference

#include <sysc/datatypes/fx/sc_fxnum.h>

Inheritance diagram for sc_dt::sc_fxnum:
Inheritance graph
[legend]

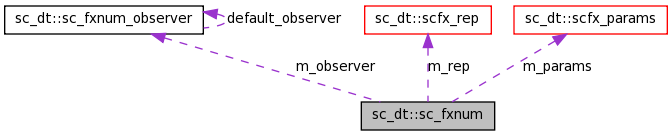

Collaboration diagram for sc_dt::sc_fxnum:
Collaboration graph
[legend]

List of all members.

Public Member Functions

const sc_fxval operator- () const
const sc_fxval operator+ () const
const sc_fxval operator++ (int)
const sc_fxval operator-- (int)
sc_fxnumoperator++ ()
sc_fxnumoperator-- ()
const sc_fxnum_bitref operator[] (int) const
sc_fxnum_bitref operator[] (int)
const sc_fxnum_bitref bit (int) const
sc_fxnum_bitref bit (int)
const sc_fxnum_subref operator() (int, int) const
sc_fxnum_subref operator() (int, int)
const sc_fxnum_subref range (int, int) const
sc_fxnum_subref range (int, int)
const sc_fxnum_subref operator() () const
sc_fxnum_subref operator() ()
const sc_fxnum_subref range () const
sc_fxnum_subref range ()
 operator double () const
short to_short () const
unsigned short to_ushort () const
int to_int () const
unsigned int to_uint () const
long to_long () const
unsigned long to_ulong () const
int64 to_int64 () const
uint64 to_uint64 () const
float to_float () const
double to_double () const
const std::string to_string () const
const std::string to_string (sc_numrep) const
const std::string to_string (sc_numrep, bool) const
const std::string to_string (sc_fmt) const
const std::string to_string (sc_numrep, sc_fmt) const
const std::string to_string (sc_numrep, bool, sc_fmt) const
const std::string to_dec () const
const std::string to_bin () const
const std::string to_oct () const
const std::string to_hex () const
bool is_neg () const
bool is_zero () const
bool is_normal () const
bool quantization_flag () const
bool overflow_flag () const
const sc_fxval value () const
int wl () const
int iwl () const
sc_q_mode q_mode () const
sc_o_mode o_mode () const
int n_bits () const
const sc_fxtype_paramstype_params () const
const sc_fxcast_switchcast_switch () const
void print (::std::ostream &=::std::cout) const
void scan (::std::istream &=::std::cin)
void dump (::std::ostream &=::std::cout) const
void observer_read () const
bool get_bit (int) const

Protected Member Functions

sc_fxnum_observerobserver () const
void cast ()
 sc_fxnum (const sc_fxtype_params &, sc_enc, const sc_fxcast_switch &, sc_fxnum_observer *)
 ~sc_fxnum ()
const scfx_repget_rep () const
bool set_bit (int, bool)
bool get_slice (int, int, sc_bv_base &) const
bool set_slice (int, int, const sc_bv_base &)
sc_fxnum_observerlock_observer () const
void unlock_observer (sc_fxnum_observer *) const

Friends

class sc_fxval
class sc_fxnum_bitref
class sc_fxnum_subref
class sc_fxnum_fast_bitref
class sc_fxnum_fast_subref
class sc_core::vcd_sc_fxnum_trace
class sc_core::wif_sc_fxnum_trace
void neg (sc_fxval &, const sc_fxnum &)
void neg (sc_fxnum &, const sc_fxnum &)
const sc_fxval operator/ (const sc_fxnum &, const sc_fxnum &)
const sc_fxval operator<< (const sc_fxnum &, int)
const sc_fxval operator>> (const sc_fxnum &, int)
void lshift (sc_fxval &, const sc_fxnum &, int)
void rshift (sc_fxval &, const sc_fxnum &, int)
void lshift (sc_fxnum &, const sc_fxnum &, int)
void rshift (sc_fxnum &, const sc_fxnum &, int)

Detailed Description

Definition at line 561 of file sc_fxnum.h.


Constructor & Destructor Documentation

sc_dt::sc_fxnum::sc_fxnum ( const sc_fxtype_params type_params_,
sc_enc  enc_,
const sc_fxcast_switch cast_sw,
sc_fxnum_observer observer_
) [inline, protected]

Definition at line 2581 of file sc_fxnum.h.

sc_dt::sc_fxnum::~sc_fxnum (  )  [inline, protected]

Definition at line 2647 of file sc_fxnum.h.


Member Function Documentation

sc_fxnum_bitref sc_dt::sc_fxnum::bit ( int  i  )  [inline]

Definition at line 3335 of file sc_fxnum.h.

const sc_fxnum_bitref sc_dt::sc_fxnum::bit ( int  i  )  const [inline]

Definition at line 3326 of file sc_fxnum.h.

void sc_dt::sc_fxnum::cast (  )  [inline, protected]

Definition at line 2569 of file sc_fxnum.h.

const sc_fxcast_switch & sc_dt::sc_fxnum::cast_switch (  )  const [inline]

Definition at line 3608 of file sc_fxnum.h.

void sc_dt::sc_fxnum::dump ( ::std::ostream &  = ::std::cout  )  const
bool sc_dt::sc_fxnum::get_bit ( int  i  )  const [inline]

Definition at line 3626 of file sc_fxnum.h.

const scfx_rep * sc_dt::sc_fxnum::get_rep (  )  const [inline, protected]

Definition at line 2657 of file sc_fxnum.h.

bool sc_dt::sc_fxnum::get_slice ( int  i,
int  j,
sc_bv_base bv
) const [inline, protected]

Definition at line 3647 of file sc_fxnum.h.

bool sc_dt::sc_fxnum::is_neg (  )  const [inline]

Definition at line 3513 of file sc_fxnum.h.

bool sc_dt::sc_fxnum::is_normal (  )  const [inline]

Definition at line 3530 of file sc_fxnum.h.

bool sc_dt::sc_fxnum::is_zero (  )  const [inline]

Definition at line 3521 of file sc_fxnum.h.

int sc_dt::sc_fxnum::iwl (  )  const [inline]

Definition at line 3571 of file sc_fxnum.h.

sc_fxnum_observer* sc_dt::sc_fxnum::lock_observer (  )  const [protected]
int sc_dt::sc_fxnum::n_bits (  )  const [inline]

Definition at line 3592 of file sc_fxnum.h.

sc_o_mode sc_dt::sc_fxnum::o_mode (  )  const [inline]

Definition at line 3585 of file sc_fxnum.h.

sc_fxnum_observer * sc_dt::sc_fxnum::observer (  )  const [inline, protected]

Definition at line 2561 of file sc_fxnum.h.

void sc_dt::sc_fxnum::observer_read (  )  const [inline]

Definition at line 3617 of file sc_fxnum.h.

sc_dt::sc_fxnum::operator double (  )  const [inline]

Definition at line 3419 of file sc_fxnum.h.

sc_fxnum_subref sc_dt::sc_fxnum::operator() (  )  [inline]

Definition at line 3396 of file sc_fxnum.h.

const sc_fxnum_subref sc_dt::sc_fxnum::operator() (  )  const [inline]

Definition at line 3389 of file sc_fxnum.h.

sc_fxnum_subref sc_dt::sc_fxnum::operator() ( int  i,
int  j
) [inline]

Definition at line 3357 of file sc_fxnum.h.

const sc_fxnum_subref sc_dt::sc_fxnum::operator() ( int  i,
int  j
) const [inline]

Definition at line 3346 of file sc_fxnum.h.

const sc_fxval sc_dt::sc_fxnum::operator+ (  )  const [inline]

Definition at line 2676 of file sc_fxnum.h.

sc_fxnum & sc_dt::sc_fxnum::operator++ (  )  [inline]
const sc_fxval sc_dt::sc_fxnum::operator++ ( int   )  [inline]
const sc_fxval sc_dt::sc_fxnum::operator- (  )  const [inline]

Definition at line 2668 of file sc_fxnum.h.

sc_fxnum & sc_dt::sc_fxnum::operator-- (  )  [inline]
const sc_fxval sc_dt::sc_fxnum::operator-- ( int   )  [inline]
sc_fxnum_bitref sc_dt::sc_fxnum::operator[] ( int  i  )  [inline]

Definition at line 3318 of file sc_fxnum.h.

const sc_fxnum_bitref sc_dt::sc_fxnum::operator[] ( int  i  )  const [inline]

Definition at line 3309 of file sc_fxnum.h.

bool sc_dt::sc_fxnum::overflow_flag (  )  const [inline]

Definition at line 3545 of file sc_fxnum.h.

void sc_dt::sc_fxnum::print ( ::std::ostream &  = ::std::cout  )  const
sc_q_mode sc_dt::sc_fxnum::q_mode (  )  const [inline]

Definition at line 3578 of file sc_fxnum.h.

bool sc_dt::sc_fxnum::quantization_flag (  )  const [inline]

Definition at line 3538 of file sc_fxnum.h.

sc_fxnum_subref sc_dt::sc_fxnum::range (  )  [inline]

Definition at line 3410 of file sc_fxnum.h.

const sc_fxnum_subref sc_dt::sc_fxnum::range (  )  const [inline]

Definition at line 3403 of file sc_fxnum.h.

sc_fxnum_subref sc_dt::sc_fxnum::range ( int  i,
int  j
) [inline]

Definition at line 3378 of file sc_fxnum.h.

const sc_fxnum_subref sc_dt::sc_fxnum::range ( int  i,
int  j
) const [inline]

Definition at line 3367 of file sc_fxnum.h.

void sc_dt::sc_fxnum::scan ( ::std::istream &  = ::std::cin  )
bool sc_dt::sc_fxnum::set_bit ( int  i,
bool  high
) [inline, protected]

Definition at line 3636 of file sc_fxnum.h.

bool sc_dt::sc_fxnum::set_slice ( int  i,
int  j,
const sc_bv_base bv
) [inline, protected]

Definition at line 3654 of file sc_fxnum.h.

const std::string sc_dt::sc_fxnum::to_bin (  )  const
const std::string sc_dt::sc_fxnum::to_dec (  )  const
double sc_dt::sc_fxnum::to_double (  )  const [inline]

Definition at line 3502 of file sc_fxnum.h.

float sc_dt::sc_fxnum::to_float (  )  const [inline]

Definition at line 3494 of file sc_fxnum.h.

const std::string sc_dt::sc_fxnum::to_hex (  )  const
int sc_dt::sc_fxnum::to_int (  )  const [inline]

Definition at line 3446 of file sc_fxnum.h.

int64 sc_dt::sc_fxnum::to_int64 (  )  const [inline]

Definition at line 3454 of file sc_fxnum.h.

long sc_dt::sc_fxnum::to_long (  )  const [inline]

Definition at line 3478 of file sc_fxnum.h.

const std::string sc_dt::sc_fxnum::to_oct (  )  const
short sc_dt::sc_fxnum::to_short (  )  const [inline]

Definition at line 3430 of file sc_fxnum.h.

const std::string sc_dt::sc_fxnum::to_string ( sc_numrep  ,
bool  ,
sc_fmt
) const
const std::string sc_dt::sc_fxnum::to_string ( sc_numrep  ,
sc_fmt
) const
const std::string sc_dt::sc_fxnum::to_string ( sc_fmt   )  const
const std::string sc_dt::sc_fxnum::to_string ( sc_numrep  ,
bool
) const
const std::string sc_dt::sc_fxnum::to_string ( sc_numrep   )  const
const std::string sc_dt::sc_fxnum::to_string (  )  const
unsigned int sc_dt::sc_fxnum::to_uint (  )  const [inline]

Definition at line 3462 of file sc_fxnum.h.

uint64 sc_dt::sc_fxnum::to_uint64 (  )  const [inline]

Definition at line 3470 of file sc_fxnum.h.

unsigned long sc_dt::sc_fxnum::to_ulong (  )  const [inline]

Definition at line 3486 of file sc_fxnum.h.

unsigned short sc_dt::sc_fxnum::to_ushort (  )  const [inline]

Definition at line 3438 of file sc_fxnum.h.

const sc_fxtype_params & sc_dt::sc_fxnum::type_params (  )  const [inline]

Definition at line 3600 of file sc_fxnum.h.

void sc_dt::sc_fxnum::unlock_observer ( sc_fxnum_observer  )  const [protected]
const sc_fxval sc_dt::sc_fxnum::value (  )  const [inline]

Definition at line 3553 of file sc_fxnum.h.

int sc_dt::sc_fxnum::wl (  )  const [inline]

Definition at line 3564 of file sc_fxnum.h.


Friends And Related Function Documentation

void lshift ( sc_fxnum ,
const sc_fxnum ,
int
) [friend]
void lshift ( sc_fxval ,
const sc_fxnum ,
int
) [friend]
void neg ( sc_fxnum ,
const sc_fxnum
) [friend]
void neg ( sc_fxval ,
const sc_fxnum
) [friend]
const sc_fxval operator/ ( const sc_fxnum ,
const sc_fxnum
) [friend]
const sc_fxval operator<< ( const sc_fxnum ,
int
) [friend]
const sc_fxval operator>> ( const sc_fxnum ,
int
) [friend]
void rshift ( sc_fxnum ,
const sc_fxnum ,
int
) [friend]
void rshift ( sc_fxval ,
const sc_fxnum ,
int
) [friend]
friend class sc_core::vcd_sc_fxnum_trace [friend]

Definition at line 570 of file sc_fxnum.h.

friend class sc_core::wif_sc_fxnum_trace [friend]

Definition at line 571 of file sc_fxnum.h.

friend class sc_fxnum_bitref [friend]

Definition at line 565 of file sc_fxnum.h.

friend class sc_fxnum_fast_bitref [friend]

Definition at line 567 of file sc_fxnum.h.

friend class sc_fxnum_fast_subref [friend]

Definition at line 568 of file sc_fxnum.h.

friend class sc_fxnum_subref [friend]

Definition at line 566 of file sc_fxnum.h.

friend class sc_fxval [friend]

Definition at line 563 of file sc_fxnum.h.


The documentation for this class was generated from the following file:
