sc_core::sc_event Class Reference

The event class. More...

#include <sysc/kernel/sc_event.h>

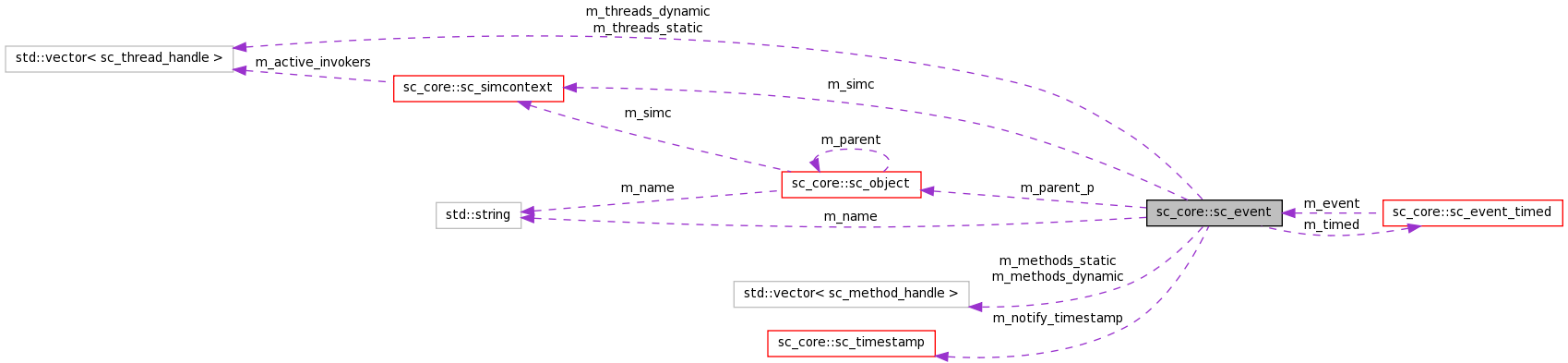

Collaboration diagram for sc_core::sc_event:

[legend]

List of all members.

Public Member Functions
	sc_event ()
	sc_event (const char *name)
	~sc_event ()
void	cancel ()
const char *	name () const
const char *	basename () const
sc_object *	get_parent_object () const
bool	in_hierarchy () const
void	notify ()
	The immediate notification is not supported by the out-of-order simulation in the current release.
void	notify (const sc_time &)
void	notify (double, sc_time_unit)
void	notify_delayed ()
void	notify_delayed (const sc_time &)
void	notify_delayed (double, sc_time_unit)
sc_event_or_expr	operator| (const sc_event &) const
sc_event_or_expr	operator| (const sc_event_or_list &) const
sc_event_and_expr	operator& (const sc_event &) const
sc_event_and_expr	operator& (const sc_event_and_list &) const
Friends
class	sc_clock
class	sc_event_list
class	sc_event_timed
class	sc_simcontext
class	sc_object
class	sc_process_b
class	sc_method_process
class	sc_thread_process
class	sc_signal
void	sc_thread_cor_fn (void *arg)

---

Detailed Description

The event class.

Definition at line 244 of file sc_event.h.

---

Constructor & Destructor Documentation

sc_core::sc_event::sc_event

(

)

sc_core::sc_event::sc_event

(

const char *

name

)

sc_core::sc_event::~sc_event

(

)

---

Member Function Documentation

const char* sc_core::sc_event::basename

(

)

const

void sc_core::sc_event::cancel

(

)

sc_object* sc_core::sc_event::get_parent_object

(

)

const [inline]

Definition at line 267 of file sc_event.h.

bool sc_core::sc_event::in_hierarchy

(

)

const [inline]

Definition at line 268 of file sc_event.h.

const char* sc_core::sc_event::name

(

)

const [inline]

Definition at line 265 of file sc_event.h.

void sc_core::sc_event::notify	(	double	v,
		sc_time_unit	tu
	)			[inline]

Definition at line 413 of file sc_event.h.

void sc_core::sc_event::notify

(

const sc_time &

)

void sc_core::sc_event::notify

(

)

The immediate notification is not supported by the out-of-order simulation in the current release.

void sc_core::sc_event::notify_delayed	(	double	v,
		sc_time_unit	tu
	)			[inline]

Definition at line 472 of file sc_event.h.

void sc_core::sc_event::notify_delayed

(

const sc_time &

)

void sc_core::sc_event::notify_delayed

(

)

sc_event_and_expr sc_core::sc_event::operator&

(

const sc_event_and_list &

e2

)

const [inline]

Definition at line 828 of file sc_event.h.

sc_event_and_expr sc_core::sc_event::operator&

(

const sc_event &

e2

)

const [inline]

Definition at line 818 of file sc_event.h.

sc_event_or_expr sc_core::sc_event::operator|

(

const sc_event_or_list &

e2

)

const [inline]

Definition at line 710 of file sc_event.h.

sc_event_or_expr sc_core::sc_event::operator|

(

const sc_event &

e2

)

const [inline]

Definition at line 700 of file sc_event.h.

---

Friends And Related Function Documentation

friend class sc_clock [friend]

Definition at line 246 of file sc_event.h.

friend class sc_event_list [friend]

Definition at line 247 of file sc_event.h.

friend class sc_event_timed [friend]

Definition at line 248 of file sc_event.h.

friend class sc_method_process [friend]

Definition at line 252 of file sc_event.h.

friend class sc_object [friend]

Definition at line 250 of file sc_event.h.

friend class sc_process_b [friend]

Definition at line 251 of file sc_event.h.

friend class sc_signal [friend]

Definition at line 254 of file sc_event.h.

friend class sc_simcontext [friend]

Definition at line 249 of file sc_event.h.

void sc_thread_cor_fn

(

void *

arg

)

[friend]

friend class sc_thread_process [friend]

Definition at line 253 of file sc_event.h.

---

The documentation for this class was generated from the following file:

• sysc/kernel/sc_event.h
