sc_core::sc_method_process Class Reference

A method process. More...

#include <sysc/kernel/sc_method_process.h>

Inheritance diagram for sc_core::sc_method_process:

[legend]

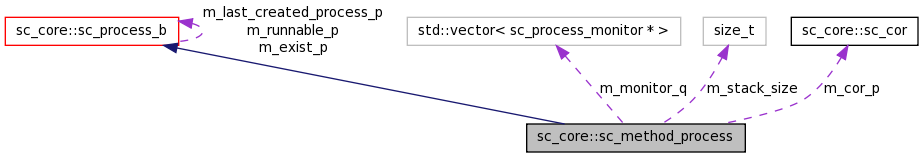

Collaboration diagram for sc_core::sc_method_process:

[legend]

List of all members.

Public Member Functions
	sc_method_process (const char name_p, bool free_host, SC_ENTRY_FUNC method_p, sc_process_host host_p, const sc_spawn_options *opt_p)
virtual const char *	kind () const
Protected Member Functions
void	check_for_throws ()
virtual void	disable_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
virtual void	enable_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
bool	run_process ()
virtual void	kill_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
sc_method_handle	next_exist ()
sc_method_handle	next_runnable ()
virtual void	prepare_for_simulation ()
	Create a coroutine for this method process.
void	clear_trigger (int)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_event &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_event_or_list &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_event_and_list &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_time &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_time &, const sc_event &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_time &, const sc_event_or_list &, int)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_time &, const sc_event_and_list &, int)
	A new parameter segment ID is added for the out-of-order simulation.
virtual void	resume_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
void	set_next_exist (sc_method_handle next_p)
void	set_next_runnable (sc_method_handle next_p)
void	set_stack_size (std::size_t size)
	Set the stack size of this method process.
virtual void	suspend_process (sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
virtual void	throw_reset (bool async)
virtual void	throw_user (const sc_throw_it_helper &helper, sc_descendant_inclusion_info descendants=SC_NO_DESCENDANTS)
bool	trigger_dynamic (sc_event *)
void	trigger_static (sc_event *)
	A new parameter is added to update the local time stamp in the method process.
Protected Attributes
sc_cor *	m_cor_p
std::size_t	m_stack_size
std::vector< sc_process_monitor * >	m_monitor_q
Friends
struct	sc_invoke_method
class	sc_event
class	sc_module
class	sc_channel
class	sc_process_table
class	sc_process_handle
class	sc_simcontext
class	sc_runnable
void	sc_method_cor_fn (void *)
void	sc_cmethod_cor_fn (void *)
void	sc_set_stack_size (sc_method_handle, std::size_t)
sc_cor *	get_cor_pointer (sc_process_b *process_p)
void	next_trigger (int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_event &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_event_or_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_event_and_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_time &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_time &, const sc_event &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_time &, const sc_event_or_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.
void	next_trigger (const sc_time &, const sc_event_and_list &, int, sc_simcontext *)
	A new parameter segment ID is added for the out-of-order simulation.

Detailed Description

A method process.

Definition at line 104 of file sc_method_process.h.

Constructor & Destructor Documentation

sc_core::sc_method_process::sc_method_process	(	const char *	name_p,
		bool	free_host,
		SC_ENTRY_FUNC	method_p,
		sc_process_host *	host_p,
		const sc_spawn_options *	opt_p
	)

Member Function Documentation

void sc_core::sc_method_process::check_for_throws ( ) [protected]

void sc_core::sc_method_process::clear_trigger ( int ) [protected]

A new parameter segment ID is added for the out-of-order simulation.

virtual void sc_core::sc_method_process::disable_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

virtual void sc_core::sc_method_process::enable_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

virtual void sc_core::sc_method_process::kill_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

virtual const char* sc_core::sc_method_process::kind ( ) const [inline, virtual]

Reimplemented from sc_core::sc_object.

Definition at line 145 of file sc_method_process.h.

sc_method_handle sc_core::sc_method_process::next_exist ( ) [inline, protected]

Definition at line 438 of file sc_method_process.h.

sc_method_handle sc_core::sc_method_process::next_runnable ( ) [inline, protected]

Definition at line 451 of file sc_method_process.h.

void sc_core::sc_method_process::next_trigger	(	const sc_time &	t,
		const sc_event_and_list &	el,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 412 of file sc_method_process.h.

void sc_core::sc_method_process::next_trigger	(	const sc_time &	t,
		const sc_event_or_list &	el,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 392 of file sc_method_process.h.

void sc_core::sc_method_process::next_trigger	(	const sc_time &	t,
		const sc_event &	e,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 372 of file sc_method_process.h.

void sc_core::sc_method_process::next_trigger	(	const sc_time &	t,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 355 of file sc_method_process.h.

void sc_core::sc_method_process::next_trigger	(	const sc_event_and_list &	el,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 337 of file sc_method_process.h.

void sc_core::sc_method_process::next_trigger	(	const sc_event_or_list &	el,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 320 of file sc_method_process.h.

void sc_core::sc_method_process::next_trigger	(	const sc_event &	e,
		int	seg_id
	)			`[inline, protected]`

A new parameter segment ID is added for the out-of-order simulation.

Definition at line 303 of file sc_method_process.h.

virtual void sc_core::sc_method_process::prepare_for_simulation ( ) [protected, virtual]

Create a coroutine for this method process.

virtual void sc_core::sc_method_process::resume_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

bool sc_core::sc_method_process::run_process ( ) [inline, protected]

Definition at line 463 of file sc_method_process.h.

void sc_core::sc_method_process::set_next_exist ( sc_method_handle next_p ) [inline, protected]

Definition at line 432 of file sc_method_process.h.

void sc_core::sc_method_process::set_next_runnable ( sc_method_handle next_p ) [inline, protected]

Definition at line 445 of file sc_method_process.h.

void sc_core::sc_method_process::set_stack_size ( std::size_t size ) [inline, protected]

Set the stack size of this method process.

Definition at line 268 of file sc_method_process.h.

virtual void sc_core::sc_method_process::suspend_process ( sc_descendant_inclusion_info descendants = SC_NO_DESCENDANTS ) [protected, virtual]

Implements sc_core::sc_process_b.

virtual void sc_core::sc_method_process::throw_reset ( bool async ) [protected, virtual]

Implements sc_core::sc_process_b.

virtual void sc_core::sc_method_process::throw_user	(	const sc_throw_it_helper &	helper,
		sc_descendant_inclusion_info	descendants = `SC_NO_DESCENDANTS`
	)			`[protected, virtual]`
