sc_core::sc_mutex Class Reference
The sc_mutex primitive channel class. More...
#include <sysc/communication/sc_mutex.h>

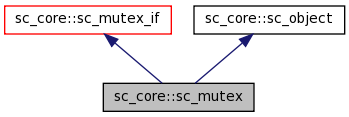

Inheritance diagram for sc_core::sc_mutex:

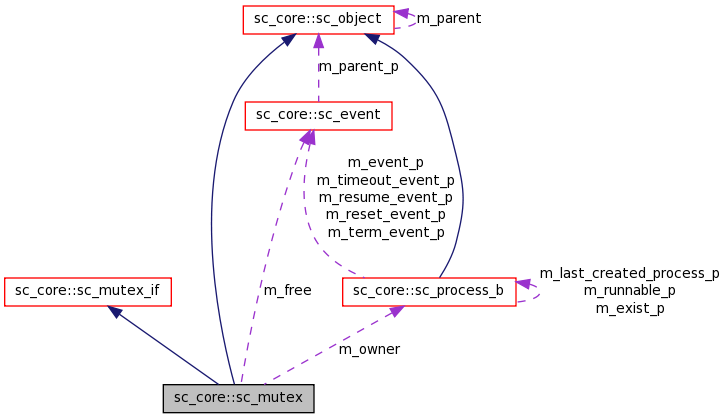

Collaboration diagram for sc_core::sc_mutex:
Public Member Functions | |
| sc_mutex () | |
| sc_mutex (const char *name_) | |
| virtual | ~sc_mutex () |
| virtual int | lock (int) |
| A new parameter segment ID is added for the out-of-order simulation. | |
| virtual int | trylock () |
| virtual int | unlock () |
| virtual const char * | kind () const |
Protected Member Functions | |
| bool | in_use () const |
Protected Attributes | |
| sc_process_b * | m_owner |
| sc_event | m_free |
| CHNL_MTX_TYPE_ | m_mutex |
| A lock to protect concurrent communication through sc_mutex. | |
Detailed Description
The sc_mutex primitive channel class.
Definition at line 46 of file sc_mutex.h.
Constructor & Destructor Documentation
| sc_core::sc_mutex::sc_mutex | ( | ) |
| sc_core::sc_mutex::sc_mutex | ( | const char * | name_ | ) | [explicit] |
| virtual sc_core::sc_mutex::~sc_mutex | ( | ) | [virtual] |
Member Function Documentation
| bool sc_core::sc_mutex::in_use | ( | ) | const [inline, protected] |
Definition at line 83 of file sc_mutex.h.
| virtual const char* sc_core::sc_mutex::kind | ( | ) | const [inline, virtual] |
Reimplemented from sc_core::sc_object.
Definition at line 76 of file sc_mutex.h.
| virtual int sc_core::sc_mutex::lock | ( | int | ) | [virtual] |
A new parameter segment ID is added for the out-of-order simulation.
Implements sc_core::sc_mutex_if.
| virtual int sc_core::sc_mutex::trylock | ( | ) | [virtual] |
Implements sc_core::sc_mutex_if.
| virtual int sc_core::sc_mutex::unlock | ( | ) | [virtual] |
Implements sc_core::sc_mutex_if.
Member Data Documentation
sc_event sc_core::sc_mutex::m_free [protected] |
Definition at line 89 of file sc_mutex.h.
CHNL_MTX_TYPE_ sc_core::sc_mutex::m_mutex [mutable, protected] |
A lock to protect concurrent communication through sc_mutex.
Definition at line 95 of file sc_mutex.h.
sc_process_b* sc_core::sc_mutex::m_owner [protected] |
Definition at line 88 of file sc_mutex.h.
The documentation for this class was generated from the following file:
- sysc/communication/sc_mutex.h
