#include <hierarchical_channel.h>

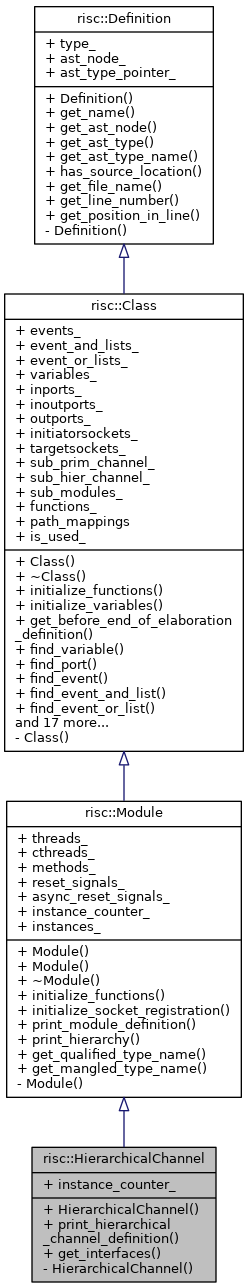

Inheritance diagram for risc::HierarchicalChannel:

Collaboration diagram for risc::HierarchicalChannel:

Public Types
typedef std::set< std::pair < std::list< SgVariableSymbol * > , std::list< SgVariableSymbol * > > >	PathMappingType

enum	Type { CThreadType, ChannelType, ChannelInstanceType, ClassType, DefinitionType, EventType, FunctionType, HierarchicalChannelType, HierarchicalChannelInstanceType, InOutPortType, InPortType, InstanceType, InterfaceType, MethodType, ModuleType, ModuleInstanceType, ObjectType, OutPortType, PortType, PrimitiveChannelType, PrimitiveChannelInstanceType, ThreadType, VariableType, SocketType, InitiatorSocketType, TargetSocketType }
	We are using these enums to identify type type of and instance or definition during traversal. More...

Public Member Functions
	HierarchicalChannel (SgClassDefinition *ast_node)
	Default constructor. More...

void	print_hierarchical_channel_definition ()

std::list< Interface * >	get_interfaces ()
	Returns all implemented interfaces. More...

virtual void	initialize_functions ()
	This function searches for all functions, SC_THREADS, SC_CTHREADS, and SC_METHODS in the module definition. The corresponding variable vectors will be used. More...

void	initialize_socket_registration ()
	This function searches for b_transport registration or dmi registration in the module definition. The registered function definition will be stored in corresponding Socket. More...

void	print_module_definition ()
	Prints the complete module design into the terminal. More...

void	print_hierarchy (unsigned indent_level=0)
	Prints the hierarchy. Roots is this definition. More...

std::string	get_qualified_type_name ()
	This function returns the qualified type name of the module. More...

std::string	get_mangled_type_name ()
	This function returns the manged type name of the module. More...

void	initialize_variables ()
	This function searches for all variable declarations in the module definition. The corresponding variable vectors will be used. More...

SgFunctionDefinition *	get_before_end_of_elaboration_definition ()
	This function return a pointer to the definition of the function before_end_of_elaboration. More...

Variable *	find_variable (SgVariableDefinition *var_def)
	Find a port by it's ast variable definition. More...

Port *	find_port (SgVariableDefinition *var_def)
	Find a port by it's ast variable definition. More...

Event *	find_event (SgVariableDefinition *var_def)
	Find an event by it's ast variable definition. More...

EventAndList *	find_event_and_list (SgVariableDefinition *var_def)
	Find an event by it's ast variable definition. More...

EventOrList *	find_event_or_list (SgVariableDefinition *var_def)
	Find an event by it's ast variable definition. More...

ModuleInstance *	find_module (SgVariableDefinition *var_def)
	Find an module by it's ast variable definition. More...

PrimitiveChannelInstance *	find_prim_channel (SgVariableDefinition *var_def)
	find a prim channel by it's ast variable definition More...

HierarchicalChannelInstance *	find_hier_channel (SgVariableDefinition *var_def)
	find a hier channel by it's ast variable definition More...

Instance *	find_instance (SgVariableDefinition *var_def)
	find a hier channel/module/ prim channel by it's ast variable definition More...

Socket *	find_socket (SgVariableDefinition *var_def)

TargetSocket *	find_target_socket (SgVariableDefinition *var_def)
	find a target socket by it's ast variable definition More...

InitiatorSocket *	find_initiator_socket (SgVariableDefinition *var_def)
	find an initiator socket by it's ast variable definition More...

SgClassDefinition *	get_ast_node ()
	Returns the ast definition of the class. More...

std::string	get_name ()
	returns the name of the module definition More...

virtual std::string	get_ast_type_name ()
	Returns the name of the module type. More...

void	initialize_mapping ()
	This function analyzes the mapping between a module/channel definition and its children. More...

void	analyze_port_mapping (Module parent_module, ModuleInstance sub_module_instance, Port *port)
	This is a helper function for internal use only. More...

void	analyze_port_mapping_style3 (Module parent_module, ModuleInstance sub_module_instance, Port *port)
	This is a helper function for internal use only. More...

void	analyze_socket_mapping (Module parent_module, ModuleInstance sub_module_instance, Socket *socket)
	This is a helper function for internal use only. More...

void	analyze_general_mapping ()
	This is a helper function for internal use only. More...

bool	has_module_pointers ()
	This functions returns true if the class has module member which is declared as a pointer. More...

bool	has_channel_pointers ()
	This functions returns true if the class has channel member which is declared as a pointer. More...

virtual SgType *	get_ast_type ()
	Returns the type of the ast node. More...

bool	has_source_location ()
	Determines if a ast node has an associated ast node. More...

std::string	get_file_name ()
	Get the name of the file where the declaration is located. More...

int	get_line_number ()
	Get the line number of the instance. More...

int	get_position_in_line ()
	Get the position of the in declaration in the corresponding line In other words the column in the line. More...

Public Attributes
int	instance_counter_
	This variable counts how many instances of this given type exsist in the desgin. More...

ThreadVector	threads_
	Vector of threads which are defined in this module. More...

CThreadVector	cthreads_
	Vector of cthreads which are defined in this module. More...

MethodVector	methods_
	Vector of methods which are defined in this module. More...

ResetSignalVector	reset_signals_
	Vector of reset signals which are registered in this module. More...

ResetSignalVector	async_reset_signals_
	Vector of async reset signals which are registered in this module. More...

std::list< Instance * >	instances_

EventVector	events_
	Vector of events which are defined in this module. More...

EventAndListVector	event_and_lists_
	Vector of event and lists which are defined in this module. More...

EventOrListVector	event_or_lists_
	Vector of event or lists which are defined in this module. More...

VariableVector	variables_
	Vector of C++ builtin variables that are declared in the module. More...

InPortVector	inports_
	Vector of inports which are defined in this module. More...

InOutPortVector	inoutports_
	Vector of inoutports which are defined in this module. More...

OutPortVector	outports_
	Vector of outports which are defined in this module. More...

InitiatorSocketVector	initiatorsockets_
	Vector of initiator sockets which are defined in this module. More...

TargetSocketVector	targetsockets_
	Vector of targets sockets which are defined in this module. More...

PrimitiveChannelInstanceVector	sub_prim_channel_
	Vector of primitive channel instances which are declared in this module. More...

HierarchicalChannelInstanceVector	sub_hier_channel_
	Vector of hierarchical channel instances which are declared in this module. More...

ModuleInstanceVector	sub_modules_
	Vector of module instances which are declared in this module. More...

FunctionVector	functions_
	Vector of functions which are defined in this module. More...

PathMappingType	path_mappings

bool	is_used_

Type	type_

SgNode *	ast_node_

SgType *	ast_type_pointer_

Private Member Functions
	HierarchicalChannel (const HierarchicalChannel &hcd)
	Disabled copy constructor. More...

Member Typedef Documentation

typedef std::set< std::pair< std::list<SgVariableSymbol*>, std::list<SgVariableSymbol*> > > risc::Class::PathMappingType

inherited

Member Enumeration Documentation

enum risc::Definition::Type

inherited

We are using these enums to identify type type of and instance or definition during traversal.

Enumerator
CThreadType
ChannelType
ChannelInstanceType
ClassType
DefinitionType
EventType
FunctionType
HierarchicalChannelType
HierarchicalChannelInstanceType
InOutPortType
InPortType
InstanceType
InterfaceType
MethodType
ModuleType
ModuleInstanceType
ObjectType
OutPortType
PortType
PrimitiveChannelType
PrimitiveChannelInstanceType
ThreadType
VariableType
SocketType
InitiatorSocketType
TargetSocketType

Constructor & Destructor Documentation

risc::HierarchicalChannel::HierarchicalChannel ( SgClassDefinition * ast_node )

explicit

Default constructor.

risc::HierarchicalChannel::HierarchicalChannel ( const HierarchicalChannel & hcd )

private

Disabled copy constructor.

Member Function Documentation

risc::Class::analyze_general_mapping ( )

inherited

This is a helper function for internal use only.

risc::Class::analyze_port_mapping	(	Module *	parent_module,
		ModuleInstance *	sub_module_instance,
		Port *	port
	)

inherited

This is a helper function for internal use only.

risc::Class::analyze_port_mapping_style3	(	Module *	parent_module,
		ModuleInstance *	sub_module_instance,
		Port *	port
	)

inherited

This is a helper function for internal use only.

risc::Class::analyze_socket_mapping	(	Module *	parent_module,
		ModuleInstance *	sub_module_instance,
		Socket *	socket
	)

inherited

This is a helper function for internal use only.

risc::Event * risc::Class::find_event ( SgVariableDefinition * var_def )

inherited

Find an event by it's ast variable definition.

risc::EventAndList * risc::Class::find_event_and_list ( SgVariableDefinition * var_def )

inherited

Find an event by it's ast variable definition.

risc::EventOrList * risc::Class::find_event_or_list ( SgVariableDefinition * var_def )

inherited

Find an event by it's ast variable definition.

risc::HierarchicalChannelInstance * risc::Class::find_hier_channel ( SgVariableDefinition * var_def )

inherited

find a hier channel by it's ast variable definition

risc::InitiatorSocket * risc::Class::find_initiator_socket ( SgVariableDefinition * var_def )

inherited

find an initiator socket by it's ast variable definition

risc::Instance * risc::Class::find_instance ( SgVariableDefinition * var_def )

inherited

find a hier channel/module/ prim channel by it's ast variable definition

risc::ModuleInstance * risc::Class::find_module ( SgVariableDefinition * var_def )

inherited

Find an module by it's ast variable definition.

risc::Port * risc::Class::find_port ( SgVariableDefinition * var_def )

inherited

Find a port by it's ast variable definition.

risc::PrimitiveChannelInstance * risc::Class::find_prim_channel ( SgVariableDefinition * var_def )

inherited

find a prim channel by it's ast variable definition

risc::Socket * risc::Class::find_socket ( SgVariableDefinition * var_def )

inherited

risc::TargetSocket * risc::Class::find_target_socket ( SgVariableDefinition * var_def )

inherited

find a target socket by it's ast variable definition

risc::Variable * risc::Class::find_variable ( SgVariableDefinition * var_def )

inherited

Find a port by it's ast variable definition.

SgClassDefinition * risc::Class::get_ast_node ( )

virtualinherited

Returns the ast definition of the class.

Returns: Pointer to the definition

Reimplemented from risc::Definition.

SgType * risc::Definition::get_ast_type ( )

virtualinherited

Returns the type of the ast node.

std::string risc::Class::get_ast_type_name ( )

virtualinherited

Returns the name of the module type.

Returns: name of the module instance

Reimplemented from risc::Definition.

Reimplemented in risc::Interface.

risc::Class::get_before_end_of_elaboration_definition ( )

inherited

This function return a pointer to the definition of the function before_end_of_elaboration.

std::string risc::Definition::get_file_name ( )

inherited

Get the name of the file where the declaration is located.

Returns: filename

std::list< risc::Interface * > risc::HierarchicalChannel::get_interfaces ( )

Returns all implemented interfaces.

int risc::Definition::get_line_number ( )

inherited

Get the line number of the instance.

Returns: line number

risc::Module::get_mangled_type_name ( )

inherited

This function returns the manged type name of the module.

std::string risc::Class::get_name ( )

virtualinherited

returns the name of the module definition

Reimplemented from risc::Definition.

int risc::Definition::get_position_in_line ( )

inherited

Get the position of the in declaration in the corresponding line In other words the column in the line.

Returns: position in line

risc::Module::get_qualified_type_name ( )

inherited

This function returns the qualified type name of the module.

risc::Class::has_channel_pointers ( )

inherited

This functions returns true if the class has channel member which is declared as a pointer.

risc::Class::has_module_pointers ( )

inherited

This functions returns true if the class has module member which is declared as a pointer.

bool risc::Definition::has_source_location ( )

inherited

Determines if a ast node has an associated ast node.

void risc::Module::initialize_functions ( )

virtualinherited

This function searches for all functions, SC_THREADS, SC_CTHREADS, and SC_METHODS in the module definition. The corresponding variable vectors will be used.

Reimplemented from risc::Class.

risc::Class::initialize_mapping ( )

inherited

This function analyzes the mapping between a module/channel definition and its children.

void risc::Module::initialize_socket_registration ( )

inherited

This function searches for b_transport registration or dmi registration in the module definition. The registered function definition will be stored in corresponding Socket.

void risc::Class::initialize_variables ( )

inherited

This function searches for all variable declarations in the module definition. The corresponding variable vectors will be used.

void risc::HierarchicalChannel::print_hierarchical_channel_definition ( )

void risc::Module::print_hierarchy ( unsigned indent_level = 0 )

inherited

Prints the hierarchy. Roots is this definition.

void risc::Module::print_module_definition ( )

inherited

Prints the complete module design into the terminal.

Member Data Documentation

SgNode* risc::Definition::ast_node_

inherited

SgType* risc::Definition::ast_type_pointer_

inherited

ResetSignalVector risc::Module::async_reset_signals_

inherited

Vector of async reset signals which are registered in this module.

CThreadVector risc::Module::cthreads_

inherited

Vector of cthreads which are defined in this module.

EventAndListVector risc::Class::event_and_lists_

inherited

Vector of event and lists which are defined in this module.

EventOrListVector risc::Class::event_or_lists_

inherited

Vector of event or lists which are defined in this module.

EventVector risc::Class::events_

inherited

Vector of events which are defined in this module.

FunctionVector risc::Class::functions_

inherited

Vector of functions which are defined in this module.

InitiatorSocketVector risc::Class::initiatorsockets_

inherited

Vector of initiator sockets which are defined in this module.

InOutPortVector risc::Class::inoutports_

inherited

Vector of inoutports which are defined in this module.

InPortVector risc::Class::inports_

inherited

Vector of inports which are defined in this module.

int risc::HierarchicalChannel::instance_counter_

This variable counts how many instances of this given type exsist in the desgin.

std::list<Instance*> risc::Module::instances_

inherited

This container stores all instances of the module/hierachical channel instances

bool risc::Class::is_used_

inherited

MethodVector risc::Module::methods_

inherited

Vector of methods which are defined in this module.

OutPortVector risc::Class::outports_

inherited

Vector of outports which are defined in this module.

PathMappingType risc::Class::path_mappings

inherited

ResetSignalVector risc::Module::reset_signals_

inherited

Vector of reset signals which are registered in this module.

HierarchicalChannelInstanceVector risc::Class::sub_hier_channel_

inherited

Vector of hierarchical channel instances which are declared in this module.

ModuleInstanceVector risc::Class::sub_modules_

inherited

Vector of module instances which are declared in this module.

PrimitiveChannelInstanceVector risc::Class::sub_prim_channel_

inherited

Vector of primitive channel instances which are declared in this module.

TargetSocketVector risc::Class::targetsockets_

inherited

Vector of targets sockets which are defined in this module.

ThreadVector risc::Module::threads_

inherited

Vector of threads which are defined in this module.

Type risc::Definition::type_

inherited

VariableVector risc::Class::variables_

inherited

Vector of C++ builtin variables that are declared in the module.

The documentation for this class was generated from the following files:

/local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/internal_representation/hierarchical_channel.h
/local/lecs/lecs/risc_v0.6.2/sources/build/risc_v0.6.2/src/internal_representation/hierarchical_channel.cpp

Public Types

Public Member Functions

Public Attributes

Private Member Functions

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
