sc_core::sc_fifo< T > Class Template Reference

#include <sysc/communication/sc_fifo.h>

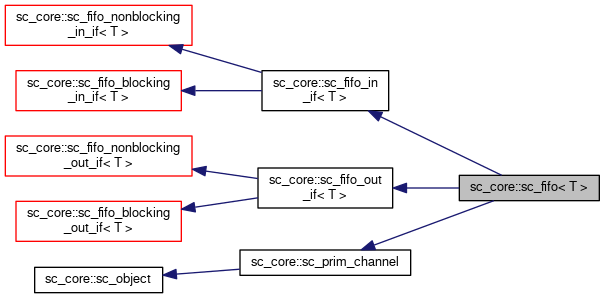

Inheritance diagram for sc_core::sc_fifo< T >:
Inheritance graph
[legend]

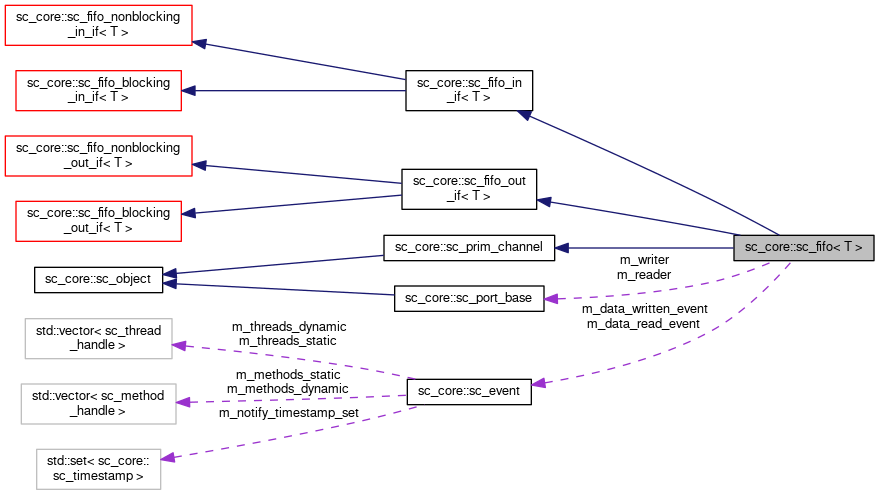

Collaboration diagram for sc_core::sc_fifo< T >:
Collaboration graph
[legend]

Public Member Functions

 sc_fifo (int size_=16)

 sc_fifo (const char *name_, int size_=16)

virtual ~sc_fifo ()

virtual void register_port (sc_port_base &, const char *)

virtual void read (T &, sc_segid)
 A new parameter segment ID is added for the out-of-order simulation. More...

virtual void read (T &)

virtual T read (sc_segid)
 A new parameter segment ID is added for the out-of-order simulation. More...

virtual T read ()

virtual bool nb_read (T &)

virtual int num_available () const

virtual const sc_eventdata_written_event () const

virtual void write (const T &, int)
 A new parameter segment ID is added for the out-of-order simulation. More...

void write (const T &)

virtual bool nb_write (const T &)

virtual int num_free () const

virtual const sc_eventdata_read_event () const

 operator T ()

sc_fifo< T > & operator= (const T &a)
 This operator is not supported by the out-of-order simulation in the current release. More...

void trace (sc_trace_file *tf) const

virtual void print (::std::ostream &=::std::cout) const

virtual void dump (::std::ostream &=::std::cout) const

virtual const char * kind () const

- Public Member Functions inherited from sc_core::sc_interface
virtual const sc_eventdefault_event () const

virtual ~sc_interface ()

- Public Member Functions inherited from sc_core::sc_prim_channel
bool update_requested ()

void request_update ()

void async_request_update ()

- Public Member Functions inherited from sc_core::sc_object
const char * name () const

const char * basename () const

sc_simcontextsimcontext () const

bool add_attribute (sc_attr_base &)

sc_attr_baseget_attribute (const std::string &name_)

const sc_attr_baseget_attribute (const std::string &name_) const

sc_attr_baseremove_attribute (const std::string &name_)

void remove_all_attributes ()

int num_attributes () const

sc_attr_cltnattr_cltn ()

const sc_attr_cltnattr_cltn () const

virtual const std::vector
< sc_event * > &
get_child_events () const

virtual const std::vector
< sc_object * > &
get_child_objects () const

sc_objectget_parent () const

sc_objectget_parent_object () const


Protected Member Functions

virtual void update ()
 The update method (does nothing by default). More...

void init (int)

void buf_init (int)

bool buf_write (const T &)

bool buf_read (T &)

- Protected Member Functions inherited from sc_core::sc_fifo_in_if< T >
 sc_fifo_in_if ()

- Protected Member Functions inherited from sc_core::sc_interface
 sc_interface ()

- Protected Member Functions inherited from sc_core::sc_fifo_out_if< T >
 sc_fifo_out_if ()

- Protected Member Functions inherited from sc_core::sc_prim_channel
 sc_prim_channel ()

 sc_prim_channel (const char *)

virtual ~sc_prim_channel ()

virtual void before_end_of_elaboration ()

virtual void end_of_elaboration ()

virtual void start_of_simulation ()

virtual void end_of_simulation ()

void wait (int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_event &e, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_event_or_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_event_and_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, const sc_event &e, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, const sc_event &e, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, const sc_event_or_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, const sc_event_or_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (const sc_time &t, const sc_event_and_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (double v, sc_time_unit tu, const sc_event_and_list &el, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void wait (int n, int seg_id=-1)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger ()
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_event &e)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_event_or_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_event_and_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t, const sc_event &e)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu, const sc_event &e)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t, const sc_event_or_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu, const sc_event_or_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (const sc_time &t, const sc_event_and_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

void next_trigger (double v, sc_time_unit tu, const sc_event_and_list &el)
 A new parameter segment ID is added for the out-of-order simulation. More...

bool timed_out ()

- Protected Member Functions inherited from sc_core::sc_object
 sc_object ()

 sc_object (const char *nm)

 sc_object (const sc_object &)

sc_objectoperator= (const sc_object &)

virtual ~sc_object ()

virtual void add_child_event (sc_event *event_p)

virtual void add_child_object (sc_object *object_p)

virtual bool remove_child_event (sc_event *event_p)

virtual bool remove_child_object (sc_object *object_p)

phase_cb_mask register_simulation_phase_callback (phase_cb_mask)

phase_cb_mask unregister_simulation_phase_callback (phase_cb_mask)


Protected Attributes

int m_size

T * m_buf

int m_free

int m_ri

int m_wi

sc_port_basem_reader

sc_port_basem_writer

int m_num_readable

int m_num_read

int m_num_written

sc_event m_data_read_event

sc_event m_data_written_event

- Protected Attributes inherited from sc_core::sc_prim_channel
CHNL_MTX_TYPE_ m_mutex
 A mutex to protect concurrent communication. More...


Additional Inherited Members

- Public Types inherited from sc_core::sc_prim_channel
enum  { list_end = 0xdb }

- Public Types inherited from sc_core::sc_object
typedef unsigned phase_cb_mask


Detailed Description

template<class T>
class sc_core::sc_fifo< T >

Definition at line 48 of file sc_fifo.h.

Constructor & Destructor Documentation

template<class T >
sc_core::sc_fifo< T >::sc_fifo ( int  size_ = 16)
inlineexplicit

Definition at line 57 of file sc_fifo.h.

template<class T >
sc_core::sc_fifo< T >::sc_fifo ( const char *  name_,
int  size_ = 16
)
inlineexplicit

Definition at line 65 of file sc_fifo.h.

template<class T >
virtual sc_core::sc_fifo< T >::~sc_fifo ( )
inlinevirtual

Definition at line 76 of file sc_fifo.h.

Member Function Documentation

template<class T >
void sc_core::sc_fifo< T >::buf_init ( int  size_)
inlineprotected

Definition at line 459 of file sc_fifo.h.

template<class T >
bool sc_core::sc_fifo< T >::buf_read ( T &  val_)
inlineprotected

Definition at line 490 of file sc_fifo.h.

template<class T >
bool sc_core::sc_fifo< T >::buf_write ( const T &  val_)
inlineprotected

Definition at line 475 of file sc_fifo.h.

template<class T >
virtual const sc_event& sc_core::sc_fifo< T >::data_read_event ( ) const
inlinevirtual

Implements sc_core::sc_fifo_nonblocking_out_if< T >.

Definition at line 163 of file sc_fifo.h.

template<class T >
virtual const sc_event& sc_core::sc_fifo< T >::data_written_event ( ) const
inlinevirtual

Implements sc_core::sc_fifo_nonblocking_in_if< T >.

Definition at line 127 of file sc_fifo.h.

template<class T >
void sc_core::sc_fifo< T >::dump ( ::std::ostream &  os = ::std::cout) const
inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 397 of file sc_fifo.h.

template<class T >
void sc_core::sc_fifo< T >::init ( int  size_)
inlineprotected

Definition at line 442 of file sc_fifo.h.

template<class T >
virtual const char* sc_core::sc_fifo< T >::kind ( ) const
inlinevirtual

Reimplemented from sc_core::sc_prim_channel.

Definition at line 189 of file sc_fifo.h.

template<class T >
bool sc_core::sc_fifo< T >::nb_read ( T &  val_)
inlinevirtual

Implements sc_core::sc_fifo_nonblocking_in_if< T >.

Definition at line 301 of file sc_fifo.h.

template<class T >
bool sc_core::sc_fifo< T >::nb_write ( const T &  val_)
inlinevirtual

Implements sc_core::sc_fifo_nonblocking_out_if< T >.

Definition at line 343 of file sc_fifo.h.

template<class T >
virtual int sc_core::sc_fifo< T >::num_available ( ) const
inlinevirtual

Implements sc_core::sc_fifo_in_if< T >.

Definition at line 115 of file sc_fifo.h.

template<class T >
virtual int sc_core::sc_fifo< T >::num_free ( ) const
inlinevirtual

Implements sc_core::sc_fifo_out_if< T >.

Definition at line 150 of file sc_fifo.h.

template<class T >
sc_core::sc_fifo< T >::operator T ( )
inline

Definition at line 169 of file sc_fifo.h.

template<class T >
sc_fifo<T>& sc_core::sc_fifo< T >::operator= ( const T &  a)
inline

This operator is not supported by the out-of-order simulation in the current release.

Definition at line 178 of file sc_fifo.h.

template<class T >
void sc_core::sc_fifo< T >::print ( ::std::ostream &  os = ::std::cout) const
inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 379 of file sc_fifo.h.

template<class T >
void sc_core::sc_fifo< T >::read ( T &  val_,
sc_segid  seg_id
)
inlinevirtual

A new parameter segment ID is added for the out-of-order simulation.

Implements sc_core::sc_fifo_blocking_in_if< T >.

Definition at line 271 of file sc_fifo.h.

template<class T >
virtual void sc_core::sc_fifo< T >::read ( T &  )
inlinevirtual

Implements sc_core::sc_fifo_blocking_in_if< T >.

Definition at line 93 of file sc_fifo.h.

template<class T >
T sc_core::sc_fifo< T >::read ( sc_segid  seg_id)
inlinevirtual

A new parameter segment ID is added for the out-of-order simulation.

Implements sc_core::sc_fifo_blocking_in_if< T >.

Definition at line 289 of file sc_fifo.h.

template<class T >
virtual T sc_core::sc_fifo< T >::read ( )
inlinevirtual

Implements sc_core::sc_fifo_blocking_in_if< T >.

Definition at line 104 of file sc_fifo.h.

template<class T >
void sc_core::sc_fifo< T >::register_port ( sc_port_base port_,
const char *  if_typename_
)
inlinevirtual

Reimplemented from sc_core::sc_interface.

Definition at line 235 of file sc_fifo.h.

template<class T >
void sc_core::sc_fifo< T >::trace ( sc_trace_file tf) const
inlinevirtual

Reimplemented from sc_core::sc_object.

Definition at line 363 of file sc_fifo.h.

template<class T >
void sc_core::sc_fifo< T >::update ( )
inlineprotectedvirtual

The update method (does nothing by default).

This function is not supported by the out-of-order simulation in the current release.

Reimplemented from sc_core::sc_prim_channel.

Definition at line 420 of file sc_fifo.h.

template<class T >
void sc_core::sc_fifo< T >::write ( const T &  val_,
int  seg_id
)
inlinevirtual

A new parameter segment ID is added for the out-of-order simulation.

Implements sc_core::sc_fifo_blocking_out_if< T >.

Definition at line 324 of file sc_fifo.h.

template<class T >
void sc_core::sc_fifo< T >::write ( const T &  )
inlinevirtual

Implements sc_core::sc_fifo_blocking_out_if< T >.

Definition at line 139 of file sc_fifo.h.

Member Data Documentation

template<class T >
T* sc_core::sc_fifo< T >::m_buf
protected

Definition at line 207 of file sc_fifo.h.

template<class T >
sc_event sc_core::sc_fifo< T >::m_data_read_event
protected

Definition at line 219 of file sc_fifo.h.

template<class T >
sc_event sc_core::sc_fifo< T >::m_data_written_event
protected

Definition at line 220 of file sc_fifo.h.

template<class T >
int sc_core::sc_fifo< T >::m_free
protected

Definition at line 208 of file sc_fifo.h.

template<class T >
int sc_core::sc_fifo< T >::m_num_read
protected

Definition at line 216 of file sc_fifo.h.

template<class T >
int sc_core::sc_fifo< T >::m_num_readable
protected

Definition at line 215 of file sc_fifo.h.

template<class T >
int sc_core::sc_fifo< T >::m_num_written
protected

Definition at line 217 of file sc_fifo.h.

template<class T >
sc_port_base* sc_core::sc_fifo< T >::m_reader
protected

Definition at line 212 of file sc_fifo.h.

template<class T >
int sc_core::sc_fifo< T >::m_ri
protected

Definition at line 209 of file sc_fifo.h.

template<class T >
int sc_core::sc_fifo< T >::m_size
protected

Definition at line 206 of file sc_fifo.h.

template<class T >
int sc_core::sc_fifo< T >::m_wi
protected

Definition at line 210 of file sc_fifo.h.

template<class T >
sc_port_base* sc_core::sc_fifo< T >::m_writer
protected

Definition at line 213 of file sc_fifo.h.


The documentation for this class was generated from the following file:
