segment_graph.h File Reference
#include <iostream>
#include <map>
#include <set>
#include <utility>
#include "boost/graph/adjacency_list.hpp"
#include "boost/graph/graphviz.hpp"
#include "boost/algorithm/string.hpp"
#include "../internal_representation/module.h"
#include "rose.h"
#include "edge.h"
#include "function_annotation.h"
#include "port_call_path.h"
#include "segment.h"

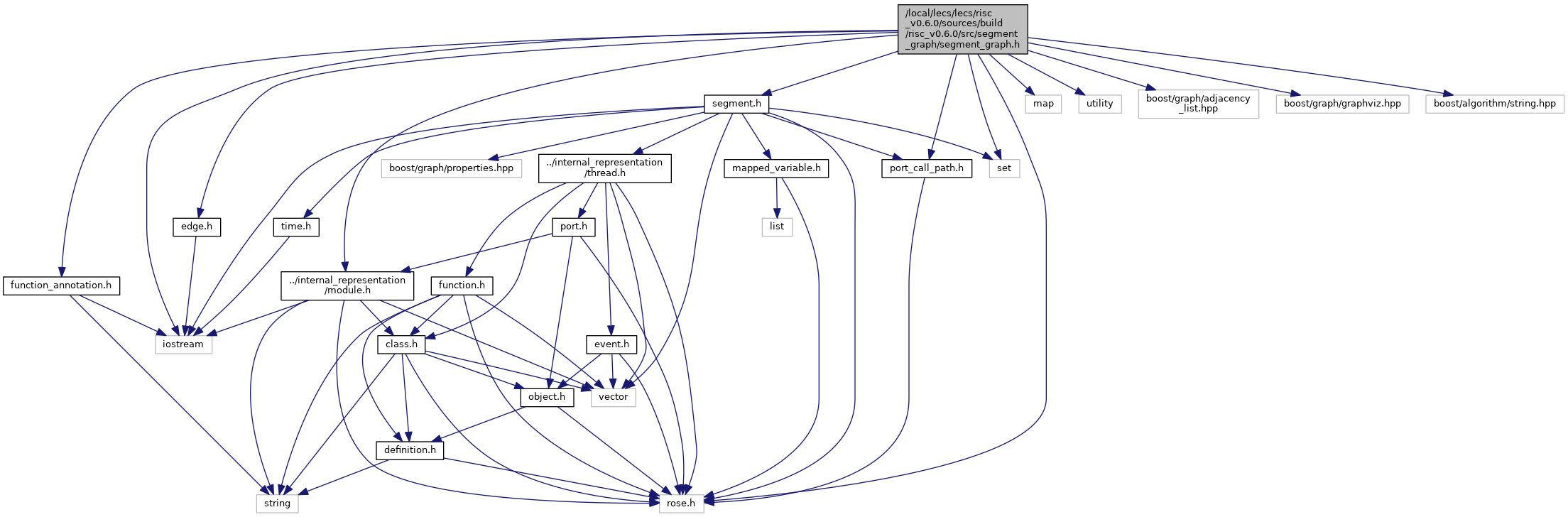

Include dependency graph for segment_graph.h:

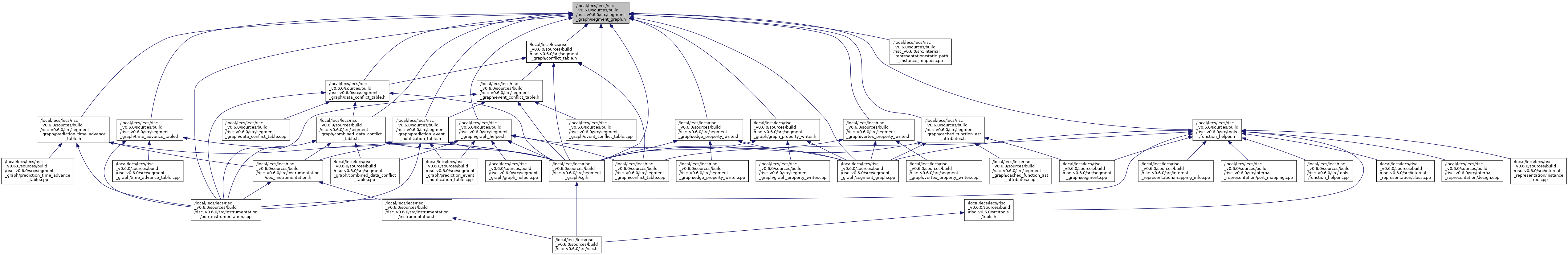

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  risc::sg::SegmentCmp
 Function object (functor!?) for SegmentSet (12/15/18, RD) More...

class  risc::sg::SegmentGraph
 This class represents a segment graph for a process. More...


Namespaces

 risc

 risc::sg


Macros

#define DBG_SHOW(name, id)   std::cout<<"\n\ndebug id: "<< id<<" "<<#name<<" : \n"<<name->unparseToString()<<std::endl;


Typedefs

typedef boost::adjacency_list
< boost::listS, boost::listS,
boost::bidirectionalS, Segment,
Edge, boost::property
< boost::vertex_index_t, int > >
risc::sg::Graph

typedef boost::graph_traits
< Graph >::vertex_descriptor
risc::sg::VertexDescriptor

typedef boost::graph_traits
< Graph >::vertex_iterator
risc::sg::VertexIterator

typedef boost::graph_traits
< Graph >::edge_descriptor
risc::sg::EdgeDescriptor


Macro Definition Documentation

#define DBG_SHOW (   name,
  id
)    std::cout<<"\n\ndebug id: "<< id<<" "<<#name<<" : \n"<<name->unparseToString()<<std::endl;
