sc_core::sc_in< bool > Class Template Reference

#include <sysc/communication/sc_signal_ports.h>

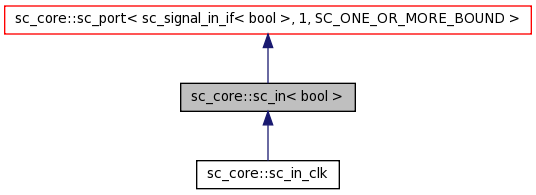

Inheritance diagram for sc_core::sc_in< bool >:
Inheritance graph
[legend]

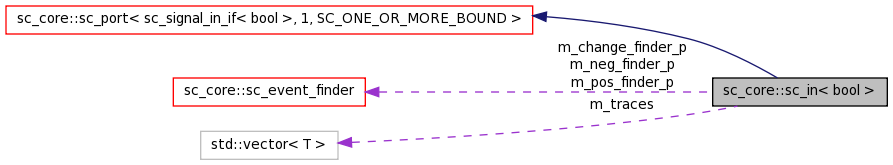

Collaboration diagram for sc_core::sc_in< bool >:
Collaboration graph
[legend]

List of all members.

Public Types

typedef bool data_type
typedef sc_signal_in_if
< data_type
if_type
typedef sc_port< if_type,
1, SC_ONE_OR_MORE_BOUND >
base_type
typedef sc_in< data_typethis_type
typedef base_type::port_type base_port_type
typedef if_type in_if_type
typedef base_type in_port_type
typedef sc_signal_inout_if
< data_type
inout_if_type
typedef sc_port< inout_if_type,
1, SC_ONE_OR_MORE_BOUND >
inout_port_type

Public Member Functions

 sc_in ()
 sc_in (const char *name_)
 sc_in (const in_if_type &interface_)
 sc_in (const char *name_, const in_if_type &interface_)
 sc_in (in_port_type &parent_)
 sc_in (const char *name_, in_port_type &parent_)
 sc_in (inout_port_type &parent_)
 sc_in (const char *name_, inout_port_type &parent_)
 sc_in (this_type &parent_)
 sc_in (const char *name_, this_type &parent_)
virtual ~sc_in ()
SC_VIRTUAL_ void bind (const in_if_type &interface_)
SC_VIRTUAL_ void bind (in_if_type &interface_)
void operator() (const in_if_type &interface_)
SC_VIRTUAL_ void bind (in_port_type &parent_)
void operator() (in_port_type &parent_)
SC_VIRTUAL_ void bind (inout_port_type &parent_)
void operator() (inout_port_type &parent_)
const sc_eventdefault_event () const
const sc_eventvalue_changed_event () const
const sc_eventposedge_event () const
const sc_eventnegedge_event () const
const data_typeread () const
 operator const data_type & () const
sc_event_finderpos () const
sc_event_finderneg () const
bool event () const
bool posedge () const
bool negedge () const
sc_event_findervalue_changed () const
virtual void end_of_elaboration ()
virtual const char * kind () const
void add_trace (sc_trace_file *, const std::string &) const
void add_trace_internal (sc_trace_file *, const std::string &) const

Protected Member Functions

void remove_traces () const
virtual int vbind (sc_interface &)
virtual int vbind (sc_port_base &)
SC_VIRTUAL_ void bind (base_port_type &parent_)

Protected Attributes

sc_trace_params_vecm_traces

Detailed Description

template<>
class sc_core::sc_in< bool >

Definition at line 407 of file sc_signal_ports.h.


Member Typedef Documentation

Definition at line 419 of file sc_signal_ports.h.

typedef sc_port<if_type,1,SC_ONE_OR_MORE_BOUND> sc_core::sc_in< bool >::base_type
typedef bool sc_core::sc_in< bool >::data_type

Definition at line 414 of file sc_signal_ports.h.

Definition at line 416 of file sc_signal_ports.h.

typedef if_type sc_core::sc_in< bool >::in_if_type

Definition at line 421 of file sc_signal_ports.h.

Definition at line 422 of file sc_signal_ports.h.

Definition at line 423 of file sc_signal_ports.h.

typedef sc_port<inout_if_type,1,SC_ONE_OR_MORE_BOUND> sc_core::sc_in< bool >::inout_port_type

Definition at line 424 of file sc_signal_ports.h.


Constructor & Destructor Documentation

sc_core::sc_in< bool >::sc_in (  )  [inline]

Definition at line 430 of file sc_signal_ports.h.

sc_core::sc_in< bool >::sc_in ( const char *  name_  )  [inline, explicit]

Definition at line 435 of file sc_signal_ports.h.

sc_core::sc_in< bool >::sc_in ( const in_if_type interface_  )  [inline, explicit]

Definition at line 440 of file sc_signal_ports.h.

sc_core::sc_in< bool >::sc_in ( const char *  name_,
const in_if_type interface_
) [inline]

Definition at line 445 of file sc_signal_ports.h.

sc_core::sc_in< bool >::sc_in ( in_port_type parent_  )  [inline, explicit]

Definition at line 450 of file sc_signal_ports.h.

sc_core::sc_in< bool >::sc_in ( const char *  name_,
in_port_type parent_
) [inline]

Definition at line 455 of file sc_signal_ports.h.

sc_core::sc_in< bool >::sc_in ( inout_port_type parent_  )  [inline, explicit]

Definition at line 460 of file sc_signal_ports.h.

sc_core::sc_in< bool >::sc_in ( const char *  name_,
inout_port_type parent_
) [inline]

Definition at line 466 of file sc_signal_ports.h.

sc_core::sc_in< bool >::sc_in ( this_type parent_  )  [inline]

Definition at line 472 of file sc_signal_ports.h.

sc_core::sc_in< bool >::sc_in ( const char *  name_,
this_type parent_
) [inline]

Definition at line 484 of file sc_signal_ports.h.

virtual sc_core::sc_in< bool >::~sc_in (  )  [inline, virtual]

Definition at line 492 of file sc_signal_ports.h.


Member Function Documentation

void sc_core::sc_in< bool >::add_trace ( sc_trace_file ,
const std::string &
) const
void sc_core::sc_in< bool >::add_trace_internal ( sc_trace_file ,
const std::string &
) const
SC_VIRTUAL_ void sc_core::sc_in< bool >::bind ( base_port_type parent_  )  [inline, protected]

Reimplemented from sc_core::sc_port_b< sc_signal_in_if< bool > >.

Definition at line 662 of file sc_signal_ports.h.

SC_VIRTUAL_ void sc_core::sc_in< bool >::bind ( inout_port_type parent_  )  [inline]

Definition at line 525 of file sc_signal_ports.h.

SC_VIRTUAL_ void sc_core::sc_in< bool >::bind ( in_port_type parent_  )  [inline]

Definition at line 516 of file sc_signal_ports.h.

SC_VIRTUAL_ void sc_core::sc_in< bool >::bind ( in_if_type interface_  )  [inline]

Definition at line 507 of file sc_signal_ports.h.

SC_VIRTUAL_ void sc_core::sc_in< bool >::bind ( const in_if_type interface_  )  [inline]

Definition at line 504 of file sc_signal_ports.h.

const sc_event& sc_core::sc_in< bool >::default_event (  )  const [inline]

Definition at line 536 of file sc_signal_ports.h.

virtual void sc_core::sc_in< bool >::end_of_elaboration (  )  [virtual]

Reimplemented from sc_core::sc_port_base.

bool sc_core::sc_in< bool >::event (  )  const [inline]

Definition at line 600 of file sc_signal_ports.h.

virtual const char* sc_core::sc_in< bool >::kind (  )  const [inline, virtual]
sc_event_finder& sc_core::sc_in< bool >::neg (  )  const [inline]

Definition at line 583 of file sc_signal_ports.h.

bool sc_core::sc_in< bool >::negedge (  )  const [inline]

Definition at line 610 of file sc_signal_ports.h.

const sc_event& sc_core::sc_in< bool >::negedge_event (  )  const [inline]

Definition at line 552 of file sc_signal_ports.h.

sc_core::sc_in< bool >::operator const data_type & (  )  const [inline]

Definition at line 561 of file sc_signal_ports.h.

void sc_core::sc_in< bool >::operator() ( inout_port_type parent_  )  [inline]

Definition at line 528 of file sc_signal_ports.h.

void sc_core::sc_in< bool >::operator() ( in_port_type parent_  )  [inline]

Definition at line 519 of file sc_signal_ports.h.

void sc_core::sc_in< bool >::operator() ( const in_if_type interface_  )  [inline]

Definition at line 510 of file sc_signal_ports.h.

sc_event_finder& sc_core::sc_in< bool >::pos (  )  const [inline]

Definition at line 567 of file sc_signal_ports.h.

bool sc_core::sc_in< bool >::posedge (  )  const [inline]

Definition at line 605 of file sc_signal_ports.h.

const sc_event& sc_core::sc_in< bool >::posedge_event (  )  const [inline]

Definition at line 547 of file sc_signal_ports.h.

const data_type& sc_core::sc_in< bool >::read (  )  const [inline]

Definition at line 558 of file sc_signal_ports.h.

void sc_core::sc_in< bool >::remove_traces (  )  const [protected]
sc_event_finder& sc_core::sc_in< bool >::value_changed (  )  const [inline]

Definition at line 615 of file sc_signal_ports.h.

const sc_event& sc_core::sc_in< bool >::value_changed_event (  )  const [inline]

Definition at line 542 of file sc_signal_ports.h.

virtual int sc_core::sc_in< bool >::vbind ( sc_port_base  )  [protected, virtual]
virtual int sc_core::sc_in< bool >::vbind ( sc_interface  )  [protected, virtual]

Member Data Documentation

sc_trace_params_vec* sc_core::sc_in< bool >::m_traces [mutable, protected]

Definition at line 649 of file sc_signal_ports.h.


The documentation for this class was generated from the following file:
