sc_core::sc_event Class Reference

The event class. More...

#include <sysc/kernel/sc_event.h>

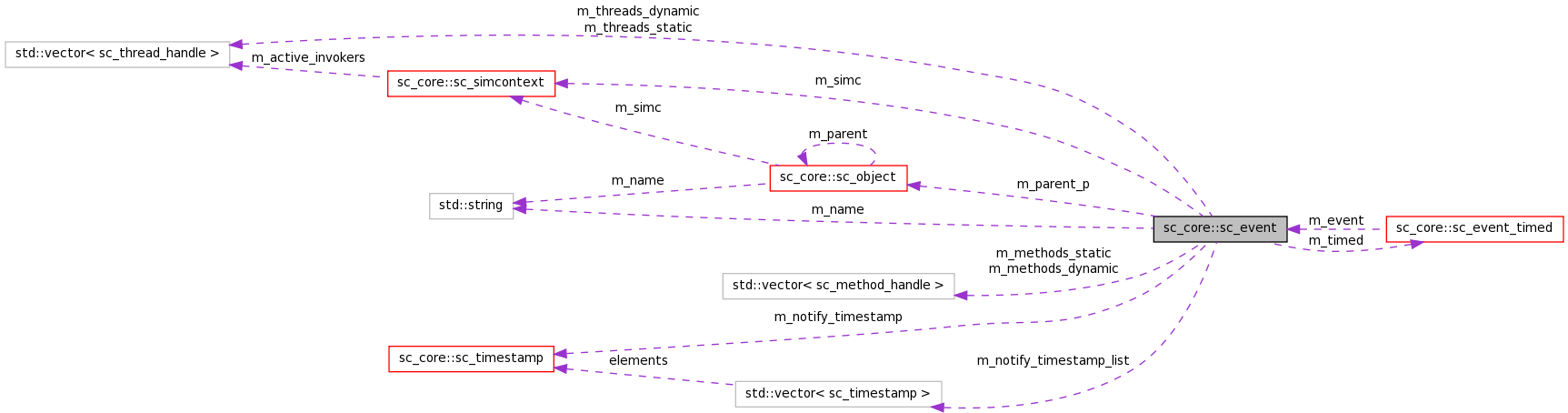

Collaboration diagram for sc_core::sc_event:

Public Member Functions
	sc_event ()
	sc_event (const char *name)
	~sc_event ()
void	cancel ()
const char *	name () const
const char *	basename () const
sc_object *	get_parent_object () const
bool	in_hierarchy () const
void	notify ()
	The immediate notification is not supported by the out-of-order simulation in the current release.
void	notify (const sc_time &)
void	notify (double, sc_time_unit)
void	notify_delayed ()
void	notify_delayed (const sc_time &)
void	notify_delayed (double, sc_time_unit)
sc_event_or_expr	operator\| (const sc_event &) const
sc_event_or_expr	operator\| (const sc_event_or_list &) const
sc_event_and_expr	operator& (const sc_event &) const
sc_event_and_expr	operator& (const sc_event_and_list &) const
const sc_timestamp &	get_notify_timestamp () const
	GET the notification time stamp.
void	push_notify_timestamp_list (const sc_timestamp &ts)
const sc_timestamp &	get_notify_timestamp_last () const
Public Attributes
std::vector< sc_timestamp >	m_notify_timestamp_list
std::vector< sc_method_handle >	m_methods_static
std::vector< sc_method_handle >	m_methods_dynamic
std::vector< sc_thread_handle >	m_threads_static
std::vector< sc_thread_handle >	m_threads_dynamic
int	m_delta_event_index
Friends
class	sc_clock
class	sc_event_list
class	sc_event_timed
class	sc_simcontext
class	sc_object
class	sc_process_b
class	sc_method_process
class	sc_thread_process
class	sc_signal
void	sc_thread_cor_fn (void *arg)

Detailed Description

The event class.

Definition at line 247 of file sc_event.h.

Constructor & Destructor Documentation

sc_core::sc_event::sc_event ( )

sc_core::sc_event::sc_event ( const char * name )

sc_core::sc_event::~sc_event ( )

Member Function Documentation

const char* sc_core::sc_event::basename ( ) const

void sc_core::sc_event::cancel ( )

const sc_timestamp& sc_core::sc_event::get_notify_timestamp ( ) const

GET the notification time stamp.

const sc_timestamp& sc_core::sc_event::get_notify_timestamp_last ( ) const

sc_object* sc_core::sc_event::get_parent_object ( ) const [inline]

Definition at line 271 of file sc_event.h.

bool sc_core::sc_event::in_hierarchy ( ) const [inline]

Definition at line 272 of file sc_event.h.

const char* sc_core::sc_event::name ( ) const [inline]

Definition at line 269 of file sc_event.h.

void sc_core::sc_event::notify	(	double	v,
		sc_time_unit	tu
	)			`[inline]`

Definition at line 424 of file sc_event.h.

void sc_core::sc_event::notify ( const sc_time & )

void sc_core::sc_event::notify ( )

The immediate notification is not supported by the out-of-order simulation in the current release.

void sc_core::sc_event::notify_delayed	(	double	v,
		sc_time_unit	tu
	)			`[inline]`

Definition at line 496 of file sc_event.h.

void sc_core::sc_event::notify_delayed ( const sc_time & )

void sc_core::sc_event::notify_delayed ( )

sc_event_and_expr sc_core::sc_event::operator& ( const sc_event_and_list & e2 ) const [inline]

Definition at line 853 of file sc_event.h.

sc_event_and_expr sc_core::sc_event::operator& ( const sc_event & e2 ) const [inline]

Definition at line 843 of file sc_event.h.

sc_event_or_expr sc_core::sc_event::operator| ( const sc_event_or_list & e2 ) const [inline]

Definition at line 735 of file sc_event.h.

sc_event_or_expr sc_core::sc_event::operator| ( const sc_event & e2 ) const [inline]

Definition at line 725 of file sc_event.h.

void sc_core::sc_event::push_notify_timestamp_list ( const sc_timestamp & ts )

Friends And Related Function Documentation

friend class sc_clock [friend]

Definition at line 249 of file sc_event.h.

friend class sc_event_list [friend]

Definition at line 250 of file sc_event.h.

friend class sc_event_timed [friend]

Definition at line 251 of file sc_event.h.

friend class sc_method_process [friend]

Definition at line 255 of file sc_event.h.

friend class sc_object [friend]

Definition at line 253 of file sc_event.h.

friend class sc_process_b [friend]

Definition at line 254 of file sc_event.h.

friend class sc_signal [friend]

Definition at line 257 of file sc_event.h.

friend class sc_simcontext [friend]

Definition at line 252 of file sc_event.h.

void sc_thread_cor_fn ( void * arg ) [friend]

friend class sc_thread_process [friend]

Definition at line 256 of file sc_event.h.

Member Data Documentation

int sc_core::sc_event::m_delta_event_index

Definition at line 359 of file sc_event.h.

std::vector<sc_method_handle> sc_core::sc_event::m_methods_dynamic [mutable]

Definition at line 301 of file sc_event.h.

std::vector<sc_method_handle> sc_core::sc_event::m_methods_static [mutable]

Definition at line 300 of file sc_event.h.

std::vector<sc_timestamp> sc_core::sc_event::m_notify_timestamp_list

Definition at line 262 of file sc_event.h.

std::vector<sc_thread_handle> sc_core::sc_event::m_threads_dynamic [mutable]

Definition at line 303 of file sc_event.h.

std::vector<sc_thread_handle> sc_core::sc_event::m_threads_static [mutable]

Definition at line 302 of file sc_event.h.

The documentation for this class was generated from the following file:

sysc/kernel/sc_event.h
