sc_core::sc_signal< bool, POL > Class Template Reference

#include <sysc/communication/sc_signal.h>

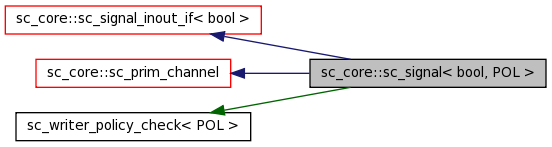

Inheritance diagram for sc_core::sc_signal< bool, POL >:
Inheritance graph
[legend]

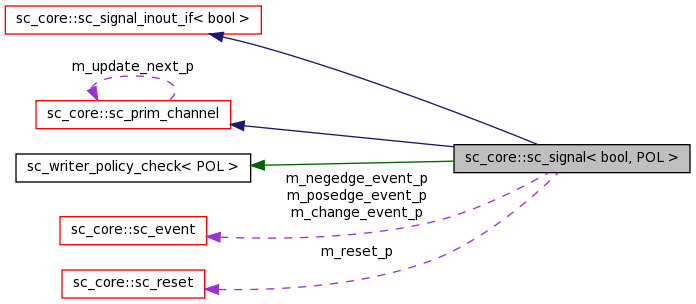

Collaboration diagram for sc_core::sc_signal< bool, POL >:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 sc_signal ()
 sc_signal (const char *name_)
 sc_signal (const char *name_, bool initial_value_)
virtual ~sc_signal ()
virtual void register_port (sc_port_base &, const char *)
virtual sc_writer_policy get_writer_policy () const
virtual const sc_eventdefault_event () const
virtual const sc_eventvalue_changed_event () const
virtual const sc_eventposedge_event () const
virtual const sc_eventnegedge_event () const
virtual const bool & read () const
virtual const bool & get_data_ref () const
virtual bool event () const
virtual bool posedge () const
virtual bool negedge () const
virtual void write (const bool &)
 operator const bool & () const
this_typeoperator= (const bool &a)
this_typeoperator= (const sc_signal_in_if< bool > &a)
this_typeoperator= (const this_type &a)
const bool & get_new_value () const
void trace (sc_trace_file *tf) const
virtual void print (::std::ostream &=::std::cout) const
virtual void dump (::std::ostream &=::std::cout) const
virtual const char * kind () const

Protected Types

typedef sc_signal_inout_if< bool > if_type
typedef sc_signal< bool, POL > this_type
typedef sc_writer_policy_check
< POL >
policy_type

Protected Member Functions

virtual void update ()
 The update method (does nothing by default).
void do_update ()
virtual bool is_clock () const

Protected Attributes

sc_eventm_change_event_p
bool m_cur_val
sc_dt::uint64 m_change_stamp
sc_eventm_negedge_event_p
bool m_new_val
sc_eventm_posedge_event_p
sc_resetm_reset_p

Detailed Description

template<sc_writer_policy POL>
class sc_core::sc_signal< bool, POL >

Definition at line 310 of file sc_signal.h.


Member Typedef Documentation

template<sc_writer_policy POL>
typedef sc_signal_inout_if<bool> sc_core::sc_signal< bool, POL >::if_type [protected]

Definition at line 316 of file sc_signal.h.

template<sc_writer_policy POL>
typedef sc_writer_policy_check<POL> sc_core::sc_signal< bool, POL >::policy_type [protected]

Definition at line 318 of file sc_signal.h.

template<sc_writer_policy POL>
typedef sc_signal<bool,POL> sc_core::sc_signal< bool, POL >::this_type [protected]

Definition at line 317 of file sc_signal.h.


Constructor & Destructor Documentation

template<sc_writer_policy POL>
sc_core::sc_signal< bool, POL >::sc_signal (  )  [inline]

Definition at line 322 of file sc_signal.h.

template<sc_writer_policy POL>
sc_core::sc_signal< bool, POL >::sc_signal ( const char *  name_  )  [inline, explicit]

Definition at line 333 of file sc_signal.h.

template<sc_writer_policy POL>
sc_core::sc_signal< bool, POL >::sc_signal ( const char *  name_,
bool  initial_value_
) [inline]

Definition at line 344 of file sc_signal.h.

template<sc_writer_policy POL>
virtual sc_core::sc_signal< bool, POL >::~sc_signal (  )  [virtual]

Member Function Documentation

template<sc_writer_policy POL>
virtual const sc_event& sc_core::sc_signal< bool, POL >::default_event (  )  const [inline, virtual]

Reimplemented from sc_core::sc_interface.

Definition at line 366 of file sc_signal.h.

template<sc_writer_policy POL>
void sc_core::sc_signal< bool, POL >::do_update (  )  [protected]
template<sc_writer_policy POL>
virtual void sc_core::sc_signal< bool, POL >::dump ( ::std::ostream &  = ::std::cout  )  const [virtual]

Reimplemented from sc_core::sc_object.

template<sc_writer_policy POL>
virtual bool sc_core::sc_signal< bool, POL >::event (  )  const [inline, virtual]

Implements sc_core::sc_signal_in_if< bool >.

Definition at line 396 of file sc_signal.h.

template<sc_writer_policy POL>
virtual const bool& sc_core::sc_signal< bool, POL >::get_data_ref (  )  const [inline, virtual]

Implements sc_core::sc_signal_in_if< bool >.

Definition at line 384 of file sc_signal.h.

template<sc_writer_policy POL>
const bool& sc_core::sc_signal< bool, POL >::get_new_value (  )  const [inline]

Definition at line 426 of file sc_signal.h.

template<sc_writer_policy POL>
virtual sc_writer_policy sc_core::sc_signal< bool, POL >::get_writer_policy (  )  const [inline, virtual]

Reimplemented from sc_core::sc_signal_write_if< bool >.

Definition at line 362 of file sc_signal.h.

template<sc_writer_policy POL>
virtual bool sc_core::sc_signal< bool, POL >::is_clock (  )  const [inline, protected, virtual]

Definition at line 461 of file sc_signal.h.

template<sc_writer_policy POL>
virtual const char* sc_core::sc_signal< bool, POL >::kind (  )  const [inline, virtual]

Reimplemented from sc_core::sc_prim_channel.

Definition at line 453 of file sc_signal.h.

template<sc_writer_policy POL>
virtual bool sc_core::sc_signal< bool, POL >::negedge (  )  const [inline, virtual]

Implements sc_core::sc_signal_in_if< bool >.

Definition at line 404 of file sc_signal.h.

template<sc_writer_policy POL>
virtual const sc_event& sc_core::sc_signal< bool, POL >::negedge_event (  )  const [virtual]
template<sc_writer_policy POL>
sc_core::sc_signal< bool, POL >::operator const bool & (  )  const [inline]

Definition at line 412 of file sc_signal.h.

template<sc_writer_policy POL>
this_type& sc_core::sc_signal< bool, POL >::operator= ( const this_type a  )  [inline]

Reimplemented from sc_core::sc_prim_channel.

Definition at line 422 of file sc_signal.h.

template<sc_writer_policy POL>
this_type& sc_core::sc_signal< bool, POL >::operator= ( const sc_signal_in_if< bool > &  a  )  [inline]

Definition at line 419 of file sc_signal.h.

template<sc_writer_policy POL>
this_type& sc_core::sc_signal< bool, POL >::operator= ( const bool &  a  )  [inline]

Definition at line 416 of file sc_signal.h.

template<sc_writer_policy POL>
virtual bool sc_core::sc_signal< bool, POL >::posedge (  )  const [inline, virtual]

Implements sc_core::sc_signal_in_if< bool >.

Definition at line 400 of file sc_signal.h.

template<sc_writer_policy POL>
virtual const sc_event& sc_core::sc_signal< bool, POL >::posedge_event (  )  const [virtual]
template<sc_writer_policy POL>
virtual void sc_core::sc_signal< bool, POL >::print ( ::std::ostream &  = ::std::cout  )  const [virtual]

Reimplemented from sc_core::sc_object.

template<sc_writer_policy POL>
virtual const bool& sc_core::sc_signal< bool, POL >::read (  )  const [inline, virtual]

Implements sc_core::sc_signal_in_if< bool >.

Definition at line 380 of file sc_signal.h.

template<sc_writer_policy POL>
virtual void sc_core::sc_signal< bool, POL >::register_port ( sc_port_base ,
const char *
) [virtual]

Reimplemented from sc_core::sc_interface.

template<sc_writer_policy POL>
void sc_core::sc_signal< bool, POL >::trace ( sc_trace_file tf  )  const [inline, virtual]

Reimplemented from sc_core::sc_object.

Definition at line 439 of file sc_signal.h.

template<sc_writer_policy POL>
virtual void sc_core::sc_signal< bool, POL >::update (  )  [protected, virtual]

The update method (does nothing by default).

This function is not supported by the out-of-order simulation in the current release.

Reimplemented from sc_core::sc_prim_channel.

template<sc_writer_policy POL>
virtual const sc_event& sc_core::sc_signal< bool, POL >::value_changed_event (  )  const [virtual]
template<sc_writer_policy POL>
virtual void sc_core::sc_signal< bool, POL >::write ( const bool &   )  [virtual]

Member Data Documentation

template<sc_writer_policy POL>
sc_event* sc_core::sc_signal< bool, POL >::m_change_event_p [mutable, protected]

Definition at line 464 of file sc_signal.h.

template<sc_writer_policy POL>
sc_dt::uint64 sc_core::sc_signal< bool, POL >::m_change_stamp [protected]

Definition at line 466 of file sc_signal.h.

template<sc_writer_policy POL>
bool sc_core::sc_signal< bool, POL >::m_cur_val [protected]

Definition at line 465 of file sc_signal.h.

template<sc_writer_policy POL>
sc_event* sc_core::sc_signal< bool, POL >::m_negedge_event_p [mutable, protected]

Definition at line 467 of file sc_signal.h.

template<sc_writer_policy POL>
bool sc_core::sc_signal< bool, POL >::m_new_val [protected]

Definition at line 468 of file sc_signal.h.

template<sc_writer_policy POL>
sc_event* sc_core::sc_signal< bool, POL >::m_posedge_event_p [mutable, protected]

Definition at line 469 of file sc_signal.h.

template<sc_writer_policy POL>
sc_reset* sc_core::sc_signal< bool, POL >::m_reset_p [mutable, protected]

Definition at line 470 of file sc_signal.h.


The documentation for this class was generated from the following file:
