sysc/datatypes/bit/sc_logic.h File Reference

#include <cstdio>
#include "sysc/utils/sc_iostream.h"
#include "sysc/kernel/sc_macros.h"
#include "sysc/utils/sc_mempool.h"
#include "sysc/datatypes/bit/sc_bit.h"

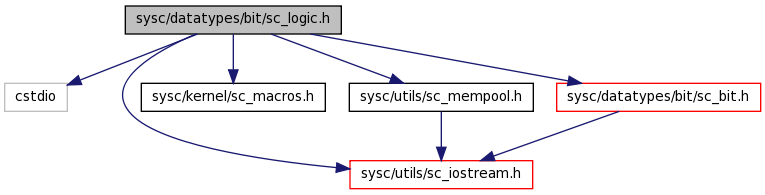

Include dependency graph for sc_logic.h:

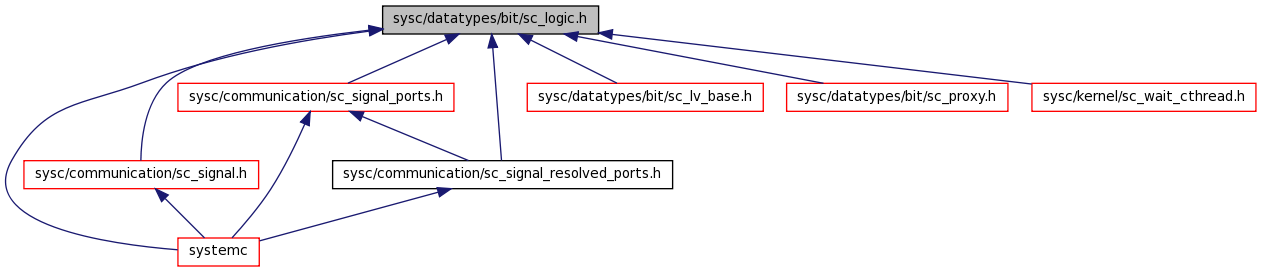

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  sc_dt::sc_logic

Namespaces

namespace  sc_dt

Defines

#define DEFN_ASN_OP_T(op, tp)
#define DEFN_ASN_OP(op)
#define DEFN_BIN_OP_T(ret, op, tp)
#define DEFN_BIN_OP(ret, op)

Enumerations

enum  sc_dt::sc_logic_value_t { sc_dt::Log_0 = 0, sc_dt::Log_1, sc_dt::Log_Z, sc_dt::Log_X }

Functions

const sc_logic sc_dt::operator& (const sc_logic &a, const sc_logic &b)
const sc_logic sc_dt::operator| (const sc_logic &a, const sc_logic &b)
const sc_logic sc_dt::operator^ (const sc_logic &a, const sc_logic &b)
bool sc_dt::operator== (const sc_logic &a, const sc_logic &b)
bool sc_dt::operator!= (const sc_logic &a, const sc_logic &b)
inline::std::ostream & sc_dt::operator<< (::std::ostream &os, const sc_logic &a)
inline::std::istream & sc_dt::operator>> (::std::istream &is, sc_logic &a)

Variables

const sc_logic sc_dt::SC_LOGIC_0
const sc_logic sc_dt::SC_LOGIC_1
const sc_logic sc_dt::SC_LOGIC_Z
const sc_logic sc_dt::SC_LOGIC_X
const sc_logic sc_dt::sc_logic_0
const sc_logic sc_dt::sc_logic_1
const sc_logic sc_dt::sc_logic_Z
const sc_logic sc_dt::sc_logic_X

Define Documentation

#define DEFN_ASN_OP ( op   )
Value:
DEFN_ASN_OP_T(op, sc_logic_value_t)            \
    DEFN_ASN_OP_T(op, bool)                        \
    DEFN_ASN_OP_T(op, char)                        \
    DEFN_ASN_OP_T(op, int )                        \
    DEFN_ASN_OP_T(op, const sc_bit& )

Definition at line 205 of file sc_logic.h.

#define DEFN_ASN_OP_T ( op,
tp   )
Value:
sc_logic& operator op ( tp v )                 \
        { *this op sc_logic( v ); return *this; }

Definition at line 201 of file sc_logic.h.

#define DEFN_BIN_OP ( ret,
op   )
Value:
DEFN_BIN_OP_T(ret,op,sc_logic_value_t)             \
    DEFN_BIN_OP_T(ret,op,bool)                         \
    DEFN_BIN_OP_T(ret,op,char)                         \
    DEFN_BIN_OP_T(ret,op,int)

Definition at line 325 of file sc_logic.h.

#define DEFN_BIN_OP_T ( ret,
op,
tp   )
Value:
inline ret operator op ( const sc_logic& a, tp b ) \
        { return ( a op sc_logic( b ) ); }             \
    inline ret operator op ( tp a, const sc_logic& b ) \
        { return ( sc_logic( a ) op b ); }

Definition at line 319 of file sc_logic.h.
