sc_core::sc_fifo< T > Class Template Reference

The sc_fifo<T> primitive channel class. More...

#include <sysc/communication/sc_fifo.h>

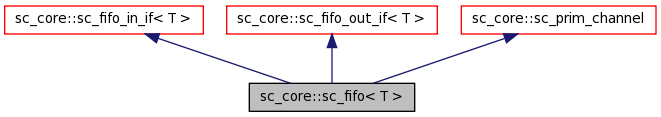

Inheritance diagram for sc_core::sc_fifo< T >:

[legend]

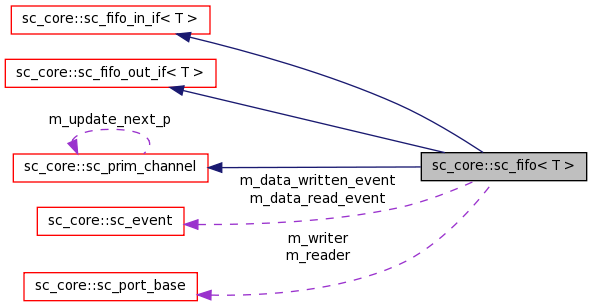

Collaboration diagram for sc_core::sc_fifo< T >:

[legend]

List of all members.

Public Member Functions
	sc_fifo (int size_=16)
	sc_fifo (const char *name_, int size_=16)
virtual	~sc_fifo ()
virtual void	register_port (sc_port_base &, const char *)
virtual void	read (T &, int)
	A new parameter segment ID is added for the out-of-order simulation.
virtual T	read (int)
	A new parameter segment ID is added for the out-of-order simulation.
virtual bool	nb_read (T &)
virtual int	num_available () const
virtual const sc_event &	data_written_event () const
virtual void	write (const T &, int)
	A new parameter segment ID is added for the out-of-order simulation.
virtual bool	nb_write (const T &)
virtual int	num_free () const
virtual const sc_event &	data_read_event () const
	operator T ()
sc_fifo< T > &	operator= (const T &a)
	This operator is not supported by the out-of-order simulation in the current release.
void	trace (sc_trace_file *tf) const
virtual void	print (::std::ostream &=::std::cout) const
virtual void	dump (::std::ostream &=::std::cout) const
virtual const char *	kind () const
Protected Member Functions
virtual void	update ()
	The update method (does nothing by default).
void	init (int)
void	buf_init (int)
bool	buf_write (const T &)
bool	buf_read (T &)
Protected Attributes
int	m_size
T *	m_buf
int	m_free
int	m_ri
int	m_wi
sc_port_base *	m_reader
sc_port_base *	m_writer
int	m_num_readable
int	m_num_read
int	m_num_written
sc_event	m_data_read_event
sc_event	m_data_written_event

---

Detailed Description

template<class T>
class sc_core::sc_fifo< T >

The sc_fifo<T> primitive channel class.

Definition at line 48 of file sc_fifo.h.

---

Constructor & Destructor Documentation

template<class T >

sc_core::sc_fifo< T >::sc_fifo

(

int

size_ = 16

)

[inline, explicit]

Definition at line 57 of file sc_fifo.h.

template<class T >

sc_core::sc_fifo< T >::sc_fifo	(	const char *	name_,
		int	size_ = 16
	)			[inline, explicit]

Definition at line 65 of file sc_fifo.h.

template<class T >

virtual sc_core::sc_fifo< T >::~sc_fifo

(

)

[inline, virtual]

Definition at line 76 of file sc_fifo.h.

---

Member Function Documentation

template<class T >

void sc_core::sc_fifo< T >::buf_init

(

int

size_

)

[inline, protected]

Definition at line 447 of file sc_fifo.h.

template<class T >

bool sc_core::sc_fifo< T >::buf_read

(

T &

val_

)

[inline, protected]

Definition at line 478 of file sc_fifo.h.

template<class T >

bool sc_core::sc_fifo< T >::buf_write

(

const T &

val_

)

[inline, protected]

Definition at line 463 of file sc_fifo.h.

template<class T >

virtual const sc_event& sc_core::sc_fifo< T >::data_read_event

(

)

const [inline, virtual]

Implements sc_core::sc_fifo_nonblocking_out_if< T >.

Definition at line 151 of file sc_fifo.h.

template<class T >

virtual const sc_event& sc_core::sc_fifo< T >::data_written_event

(

)

const [inline, virtual]

Implements sc_core::sc_fifo_nonblocking_in_if< T >.

Definition at line 119 of file sc_fifo.h.

template<class T >

void sc_core::sc_fifo< T >::dump

(

::std::ostream &

os = ::std::cout

)

const [inline, virtual]

Reimplemented from sc_core::sc_object.

Definition at line 385 of file sc_fifo.h.

template<class T >

void sc_core::sc_fifo< T >::init

(

int

size_

)

[inline, protected]

Definition at line 430 of file sc_fifo.h.

template<class T >

virtual const char* sc_core::sc_fifo< T >::kind

(

)

const [inline, virtual]

Reimplemented from sc_core::sc_prim_channel.

Definition at line 177 of file sc_fifo.h.

template<class T >

bool sc_core::sc_fifo< T >::nb_read

(

T &

val_

)

[inline, virtual]

Implements sc_core::sc_fifo_nonblocking_in_if< T >.

Definition at line 289 of file sc_fifo.h.

template<class T >

bool sc_core::sc_fifo< T >::nb_write

(

const T &

val_

)

[inline, virtual]

Implements sc_core::sc_fifo_nonblocking_out_if< T >.

Definition at line 331 of file sc_fifo.h.

template<class T >

virtual int sc_core::sc_fifo< T >::num_available

(

)

const [inline, virtual]

Implements sc_core::sc_fifo_in_if< T >.

Definition at line 107 of file sc_fifo.h.

template<class T >

virtual int sc_core::sc_fifo< T >::num_free

(

)

const [inline, virtual]

Implements sc_core::sc_fifo_out_if< T >.

Definition at line 138 of file sc_fifo.h.

template<class T >

sc_core::sc_fifo< T >::operator T

(

)

[inline]

Definition at line 157 of file sc_fifo.h.

template<class T >

sc_fifo<T>& sc_core::sc_fifo< T >::operator=

(

const T &

a

)

[inline]

This operator is not supported by the out-of-order simulation in the current release.

Definition at line 166 of file sc_fifo.h.

template<class T >

void sc_core::sc_fifo< T >::print

(

::std::ostream &

os = ::std::cout

)

const [inline, virtual]

Reimplemented from sc_core::sc_object.

Definition at line 367 of file sc_fifo.h.

template<class T >

T sc_core::sc_fifo< T >::read

(

int

seg_id

)

[inline, virtual]

A new parameter segment ID is added for the out-of-order simulation.

Implements sc_core::sc_fifo_blocking_in_if< T >.

Definition at line 277 of file sc_fifo.h.

template<class T >

void sc_core::sc_fifo< T >::read	(	T &	val_,
		int	seg_id
	)			[inline, virtual]

A new parameter segment ID is added for the out-of-order simulation.

Implements sc_core::sc_fifo_blocking_in_if< T >.

Definition at line 259 of file sc_fifo.h.

template<class T >

void sc_core::sc_fifo< T >::register_port	(	sc_port_base &	port_,
		const char *	if_typename_
	)			[inline, virtual]

Reimplemented from sc_core::sc_interface.

Definition at line 223 of file sc_fifo.h.

template<class T >

void sc_core::sc_fifo< T >::trace

(

sc_trace_file *

tf

)

const [inline, virtual]

Reimplemented from sc_core::sc_object.

Definition at line 351 of file sc_fifo.h.

template<class T >

void sc_core::sc_fifo< T >::update

(

)

[inline, protected, virtual]

The update method (does nothing by default).

This function is not supported by the out-of-order simulation in the current release.

Reimplemented from sc_core::sc_prim_channel.

Definition at line 408 of file sc_fifo.h.

template<class T >

void sc_core::sc_fifo< T >::write	(	const T &	val_,
		int	seg_id
	)			[inline, virtual]

A new parameter segment ID is added for the out-of-order simulation.

Implements sc_core::sc_fifo_blocking_out_if< T >.

Definition at line 312 of file sc_fifo.h.

---

Member Data Documentation

template<class T >

T* sc_core::sc_fifo< T >::m_buf [protected]

Definition at line 195 of file sc_fifo.h.

template<class T >

sc_event sc_core::sc_fifo< T >::m_data_read_event [protected]

Definition at line 207 of file sc_fifo.h.

template<class T >

sc_event sc_core::sc_fifo< T >::m_data_written_event [protected]

Definition at line 208 of file sc_fifo.h.

template<class T >

int sc_core::sc_fifo< T >::m_free [protected]

Definition at line 196 of file sc_fifo.h.

template<class T >

int sc_core::sc_fifo< T >::m_num_read [protected]

Definition at line 204 of file sc_fifo.h.

template<class T >

int sc_core::sc_fifo< T >::m_num_readable [protected]

Definition at line 203 of file sc_fifo.h.

template<class T >

int sc_core::sc_fifo< T >::m_num_written [protected]

Definition at line 205 of file sc_fifo.h.

template<class T >

sc_port_base* sc_core::sc_fifo< T >::m_reader [protected]

Definition at line 200 of file sc_fifo.h.

template<class T >

int sc_core::sc_fifo< T >::m_ri [protected]

Definition at line 197 of file sc_fifo.h.

template<class T >

int sc_core::sc_fifo< T >::m_size [protected]

Definition at line 194 of file sc_fifo.h.

template<class T >

int sc_core::sc_fifo< T >::m_wi [protected]

Definition at line 198 of file sc_fifo.h.

template<class T >

sc_port_base* sc_core::sc_fifo< T >::m_writer [protected]

Definition at line 201 of file sc_fifo.h.

---

The documentation for this class was generated from the following file:

• sysc/communication/sc_fifo.h
