sysc/datatypes/fx/sc_fxdefs.h File Reference
#include "sysc/utils/sc_machine.h"#include "sysc/datatypes/fx/sc_fx_ids.h"#include "sysc/datatypes/int/sc_nbutils.h"

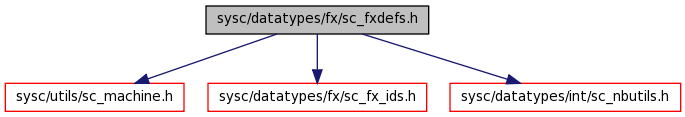

Include dependency graph for sc_fxdefs.h:

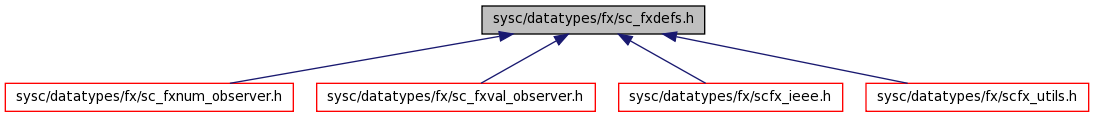

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Namespaces | |
| namespace | sc_dt |
Defines | |
| #define | SC_ASSERT_(cnd, msg) |
| #define | SC_ERROR_IF_(cnd, id) |
| #define | SC_CHECK_WL_(wl) SC_ERROR_IF_( (wl) <= 0, sc_core::SC_ID_INVALID_WL_ ) |
| #define | SC_CHECK_N_BITS_(n_bits) SC_ERROR_IF_( (n_bits) < 0, sc_core::SC_ID_INVALID_N_BITS_ ) |
| #define | SC_CHECK_DIV_WL_(div_wl) SC_ERROR_IF_( (div_wl) <= 0, sc_core::SC_ID_INVALID_DIV_WL_ ) |
| #define | SC_CHECK_CTE_WL_(cte_wl) SC_ERROR_IF_( (cte_wl) <= 0, sc_core::SC_ID_INVALID_CTE_WL_ ) |
| #define | SC_CHECK_MAX_WL_(max_wl) |
| #define | SC_OBSERVER_(object, observer_type, event) |
| #define | SC_OBSERVER_DEFAULT_(observer_type) |
Enumerations | |
| enum | sc_dt::sc_enc { sc_dt::SC_TC_, sc_dt::SC_US_ } |
| enum | sc_dt::sc_q_mode { sc_dt::SC_RND, sc_dt::SC_RND_ZERO, sc_dt::SC_RND_MIN_INF, sc_dt::SC_RND_INF, sc_dt::SC_RND_CONV, sc_dt::SC_TRN, sc_dt::SC_TRN_ZERO } |
| enum | sc_dt::sc_o_mode { sc_dt::SC_SAT, sc_dt::SC_SAT_ZERO, sc_dt::SC_SAT_SYM, sc_dt::SC_WRAP, sc_dt::SC_WRAP_SM } |
| enum | sc_dt::sc_switch { sc_dt::SC_OFF, sc_dt::SC_ON } |
| enum | sc_dt::sc_fmt { sc_dt::SC_F, sc_dt::SC_E } |
Functions | |
| const std::string | sc_dt::to_string (sc_enc) |
| inline::std::ostream & | sc_dt::operator<< (::std::ostream &os, sc_enc enc) |
| const std::string | sc_dt::to_string (sc_q_mode) |
| inline::std::ostream & | sc_dt::operator<< (::std::ostream &os, sc_q_mode q_mode) |
| const std::string | sc_dt::to_string (sc_o_mode) |
| inline::std::ostream & | sc_dt::operator<< (::std::ostream &os, sc_o_mode o_mode) |
| const std::string | sc_dt::to_string (sc_switch) |
| inline::std::ostream & | sc_dt::operator<< (::std::ostream &os, sc_switch sw) |
| const std::string | sc_dt::to_string (sc_fmt) |
| inline::std::ostream & | sc_dt::operator<< (::std::ostream &os, sc_fmt fmt) |
Variables | |
| const int | sc_dt::SC_BUILTIN_WL_ = 32 |
| const int | sc_dt::SC_BUILTIN_IWL_ = 32 |
| const sc_q_mode | sc_dt::SC_BUILTIN_Q_MODE_ = SC_TRN |
| const sc_o_mode | sc_dt::SC_BUILTIN_O_MODE_ = SC_WRAP |
| const int | sc_dt::SC_BUILTIN_N_BITS_ = 0 |
| const int | sc_dt::SC_DEFAULT_WL_ = SC_BUILTIN_WL_ |
| const int | sc_dt::SC_DEFAULT_IWL_ = SC_BUILTIN_IWL_ |
| const sc_q_mode | sc_dt::SC_DEFAULT_Q_MODE_ = SC_BUILTIN_Q_MODE_ |
| const sc_o_mode | sc_dt::SC_DEFAULT_O_MODE_ = SC_BUILTIN_O_MODE_ |
| const int | sc_dt::SC_DEFAULT_N_BITS_ = SC_BUILTIN_N_BITS_ |
| const sc_switch | sc_dt::SC_BUILTIN_CAST_SWITCH_ = SC_ON |
| const sc_switch | sc_dt::SC_DEFAULT_CAST_SWITCH_ = SC_BUILTIN_CAST_SWITCH_ |
| const int | sc_dt::SC_BUILTIN_DIV_WL_ = 64 |
| const int | sc_dt::SC_BUILTIN_CTE_WL_ = 64 |
| const int | sc_dt::SC_BUILTIN_MAX_WL_ = 1024 |
| const int | sc_dt::SC_DEFAULT_DIV_WL_ = SC_BUILTIN_DIV_WL_ |
| const int | sc_dt::SC_DEFAULT_CTE_WL_ = SC_BUILTIN_CTE_WL_ |
| const int | sc_dt::SC_DEFAULT_MAX_WL_ = SC_BUILTIN_MAX_WL_ |
Define Documentation
| #define SC_ASSERT_ | ( | cnd, | |||
| msg | ) |
Definition at line 254 of file sc_fxdefs.h.
| #define SC_CHECK_CTE_WL_ | ( | cte_wl | ) | SC_ERROR_IF_( (cte_wl) <= 0, sc_core::SC_ID_INVALID_CTE_WL_ ) |
Definition at line 273 of file sc_fxdefs.h.
| #define SC_CHECK_DIV_WL_ | ( | div_wl | ) | SC_ERROR_IF_( (div_wl) <= 0, sc_core::SC_ID_INVALID_DIV_WL_ ) |
Definition at line 270 of file sc_fxdefs.h.
| #define SC_CHECK_MAX_WL_ | ( | max_wl | ) |
Value:
SC_ERROR_IF_( (max_wl) <= 0 && (max_wl) != -1, \ sc_core::SC_ID_INVALID_MAX_WL_ )
Definition at line 276 of file sc_fxdefs.h.
| #define SC_CHECK_N_BITS_ | ( | n_bits | ) | SC_ERROR_IF_( (n_bits) < 0, sc_core::SC_ID_INVALID_N_BITS_ ) |
Definition at line 267 of file sc_fxdefs.h.
| #define SC_CHECK_WL_ | ( | wl | ) | SC_ERROR_IF_( (wl) <= 0, sc_core::SC_ID_INVALID_WL_ ) |
Definition at line 264 of file sc_fxdefs.h.
| #define SC_ERROR_IF_ | ( | cnd, | |||
| id | ) |
Value:
{ \
if( cnd ) \
SC_REPORT_ERROR( id, 0 ); \
}
Definition at line 257 of file sc_fxdefs.h.
| #define SC_OBSERVER_ | ( | object, | |||
| observer_type, | |||||
| event | ) |
Value:
{ \
if( (object).observer() != 0 ) \
{ \
observer_type observer = (object).lock_observer(); \
observer->event( (object) ); \
(object).unlock_observer( observer ); \
} \
}
Definition at line 285 of file sc_fxdefs.h.
| #define SC_OBSERVER_DEFAULT_ | ( | observer_type | ) |
Value:
{ \
if( m_observer == 0 && observer_type ## ::default_observer != 0 ) \
m_observer = (* ## observer_type ## ::default_observer)(); \
}
Definition at line 295 of file sc_fxdefs.h.
