sc_simcontext.h File Reference
#include "sysc/kernel/sc_cmnhdr.h"
#include "sysc/kernel/sc_process.h"
#include "sysc/kernel/sc_status.h"
#include "sysc/kernel/sc_time.h"
#include "sysc/utils/sc_hash.h"
#include "sysc/utils/sc_pq.h"
#include <map>
#include <unordered_map>
#include <unordered_set>
#include <list>
#include <string.h>
#include <time.h>

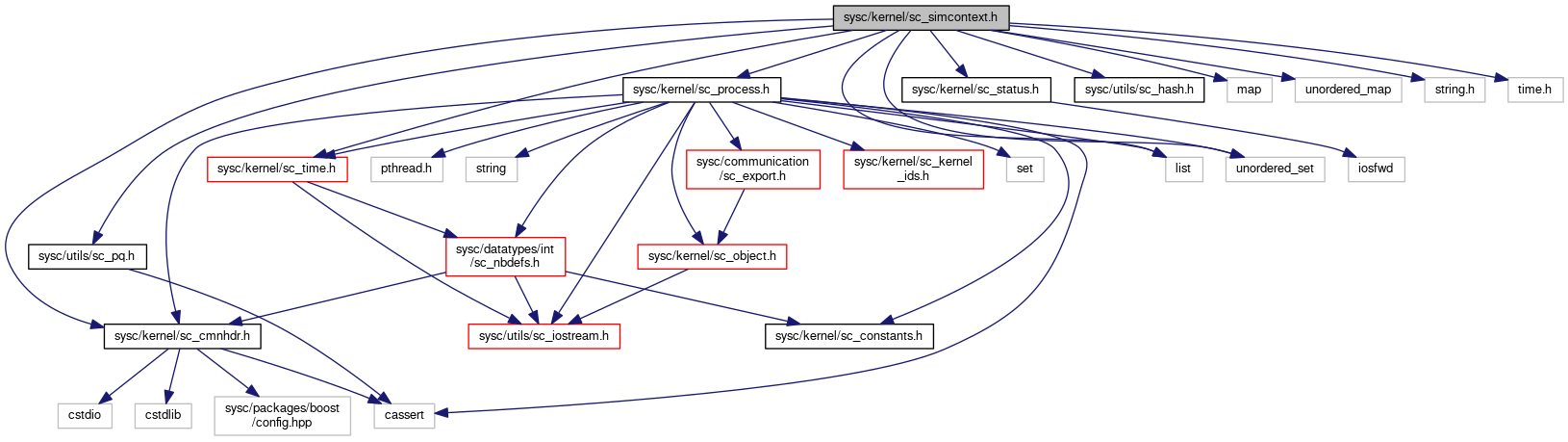

Include dependency graph for sc_simcontext.h:

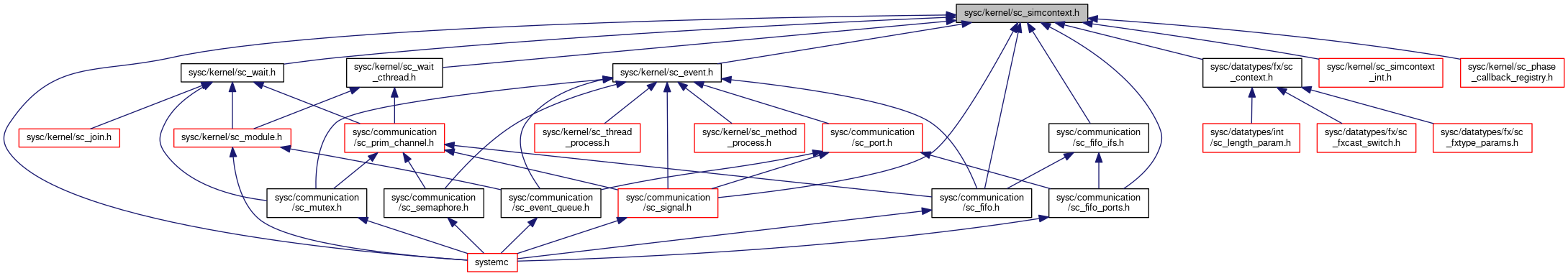

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

class  sc_core::sc_plist< typename >

struct  sc_core::sc_kernel_lock
 A scoped mutex for the kernel lock. More...

class  sc_core::sc_segid
 segment id currently only used for sc_fifo::read(...) as a bug fix More...

class  sc_core::sc_simcontext
 The simulation context. More...


Namespaces

 sc_core


Typedefs

typedef sc_plist< sc_process_b * > sc_core::sc_process_list


Enumerations

enum  sc_core::sc_stop_mode { sc_core::SC_STOP_FINISH_DELTA, sc_core::SC_STOP_IMMEDIATE }

enum  sc_core::sc_starvation_policy { sc_core::SC_EXIT_ON_STARVATION, sc_core::SC_RUN_TO_TIME }


Functions

void sc_core::sc_set_stop_mode (sc_stop_mode mode)

sc_stop_mode sc_core::sc_get_stop_mode ()

void sc_core::sc_start ()

void sc_core::sc_start (const sc_time &duration, sc_starvation_policy p=SC_RUN_TO_TIME)

void sc_core::sc_start (int duration, sc_time_unit unit, sc_starvation_policy p=SC_RUN_TO_TIME)

void sc_core::sc_start (double duration, sc_time_unit unit, sc_starvation_policy p=SC_RUN_TO_TIME)

void sc_core::sc_stop ()

sc_dt::uint64 sc_core::sc_delta_count ()
 This function returns the local delta count of the running process. More...

const std::vector< sc_event * > & sc_core::sc_get_top_level_events (const sc_simcontext *simc_p)

const std::vector< sc_object * > & sc_core::sc_get_top_level_objects (const sc_simcontext *simc_p)

bool sc_core::sc_is_running (const sc_simcontext *simc_p)

void sc_core::sc_pause ()

bool sc_core::sc_end_of_simulation_invoked ()

bool sc_core::sc_start_of_simulation_invoked ()

void sc_core::sc_set_time_resolution (double, sc_time_unit)

sc_time sc_core::sc_get_time_resolution ()

void sc_core::sc_set_default_time_unit (double, sc_time_unit)

sc_time sc_core::sc_get_default_time_unit ()

bool sc_core::sc_pending_activity_at_current_time (const sc_simcontext *)

bool sc_core::sc_pending_activity_at_future_time (const sc_simcontext *)

sc_time sc_core::sc_time_to_pending_activity (const sc_simcontext *)

sc_simcontext * sc_core::sc_get_curr_simcontext ()

sc_status sc_core::sc_get_status ()

sc_process_handle sc_core::sc_get_current_process_handle ()

sc_object * sc_core::sc_get_current_object ()

sc_process_b * sc_core::sc_get_current_process_b ()

sc_process_b * sc_core::sc_get_curr_process_handle ()

sc_curr_proc_kind sc_core::sc_get_curr_process_kind ()

int sc_core::sc_get_simulator_status ()

const char * sc_core::sc_gen_unique_name (const char *, bool preserve_first)

void sc_core::sc_set_random_seed (unsigned int seed_)

void sc_core::sc_initialize ()

const sc_time & sc_core::sc_max_time ()

const sc_time & sc_core::sc_time_stamp ()

double sc_core::sc_simulation_time ()

const sc_time & sc_core::get_current_trace_time ()

sc_event * sc_core::sc_find_event (const char *name)

sc_object * sc_core::sc_find_object (const char *name)

bool sc_core::sc_is_unwinding ()

bool sc_core::sc_pending_activity (const sc_simcontext *simc_p=sc_get_curr_simcontext())

bool sc_core::sc_hierarchical_name_exists (const char *name)


Variables

bool sc_core::_SYSC_SYNC_PAR_SIM

const char * sc_core::_OoO_Table_File_Name

unsigned int sc_core::_OoO_Combined_Data_Conflict_Table_Size

unsigned int sc_core::_OoO_Combined_Data_Conflict_Lookup_Table_Number_Segments

unsigned int sc_core::_OoO_Combined_Data_Conflict_Lookup_Table_Max_Instances

unsigned int sc_core::_OoO_Prediction_Time_Advance_Table_Number_Steps

unsigned int sc_core::_OoO_Prediction_Time_Advance_Table_Number_Segments

unsigned int sc_core::_OoO_Prediction_Event_Notification_Table_No_Indirect_Number_Segments

unsigned int sc_core::_OoO_Prediction_Event_Notification_Table_No_Indirect_Max_Instances

int sc_core::_OoO_Combined_Data_Conflict_Table []

int sc_core::_OoO_Combined_Data_Conflict_Lookup_Table []

long long sc_core::_OoO_Prediction_Time_Advance_Table_Time_Units []

int sc_core::_OoO_Prediction_Time_Advance_Table_Delta []

int sc_core::_OoO_Prediction_Time_Advance_Lookup_Table []

long long sc_core::_OoO_Prediction_Event_Notification_Table_No_Indirect_Time_Units []

int sc_core::_OoO_Prediction_Event_Notification_Table_No_Indirect_Delta []

int sc_core::_OoO_Prediction_Event_Notification_No_Indirect_Lookup_Table []

bool sc_core::_OoO_Data_Conflict_Table []
 Data conflict table for the out-of-order simulation. More...

unsigned int sc_core::_OoO_Data_Conflict_Table_Size
 Size of the data conflict table. More...

bool sc_core::_OoO_Event_Notify_Table []
 Event notification table for the out-of-order simulation. More...

unsigned int sc_core::_OoO_Event_Notify_Table_Size
 Size of the event notification table. More...

int sc_core::_OoO_Conflict_Index_Lookup_Table []
 Index lookup table for the data conflict table and event notification table. More...

unsigned int sc_core::_OoO_Max_Number_of_Instances
 The maximum number of instances. More...

unsigned int sc_core::_OoO_Number_of_Segments
 The number of segments. More...

long long sc_core::_OoO_Curr_Time_Advance_Table_Time []
 Current time advance table (timed cycles) for the out-of-order simulation. More...

int sc_core::_OoO_Curr_Time_Advance_Table_Delta []
 Current time advance table (delta cycles) for the out-of-order simulation. More...

unsigned int sc_core::_OoO_Curr_Time_Advance_Table_Size
 Size of the current time advance table. More...

long long sc_core::_OoO_Next_Time_Advance_Table_Time []
 Next time advance table (timed cycles) for the out-of-order simulation. More...

int sc_core::_OoO_Next_Time_Advance_Table_Delta []
 Next time advance table (delta cycles) for the out-of-order simulation. More...

unsigned int sc_core::_OoO_Next_Time_Advance_Table_Size
 Size of the next time advance table. More...

int sc_core::_OoO_Time_Advance_Index_Lookup_Table []
 Index lookup table for the time advance table. More...

unsigned int sc_core::_OoO_Time_Advance_Index_Lookup_Table_Size
 Size of the index lookup table for the time advance table. More...

sc_simcontext * sc_core::sc_curr_simcontext

sc_simcontext * sc_core::sc_default_global_context
